• 내장된 고출력 디지털 파워앰프
  • 100Mbps RJ45 단일 네트워크 포트
  • 산업용 ARM 아키텍처 칩
  • 보호 클래스 IP65

핵심 기능 및 성능

Becke 방수 컬럼 스피커는 산업용 등급의 SIP 오디오 단말기입니다. 독립적인 오디오 시스템으로 사용할 수 있을 뿐만 아니라, 외부 시스템 및 플랫폼(통합 커뮤니케이션 시스템, 영상 감시 시스템, Becke 방송 인터콤 시스템, 출입 통제 시스템, 디지털 전광판 및 화재 경보 시스템 등)과도 원활하게 통합되어 통합 구성 및 운영이 가능한 완전한 오디오 통신 시스템을 구축할 수 있습니다. IP65 보호 등급을 갖추고 있어 효과적인 방수 및 방진 성능을 제공하며, 대부분의 실외 환경에 적합합니다.

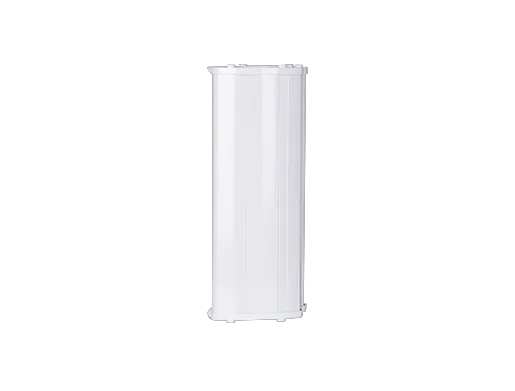

60W 방수 기둥 스피커

전체적으로 알루미늄-마그네슘 합금 하우징이 있는 전천후 칼럼 스피커로 우아하고 간결한 디자인이 특징입니다. 다양한 실외 환경에 적응하여 보호 등급이 IP65인 다양한 실내외 애플리케이션에 적합합니다.

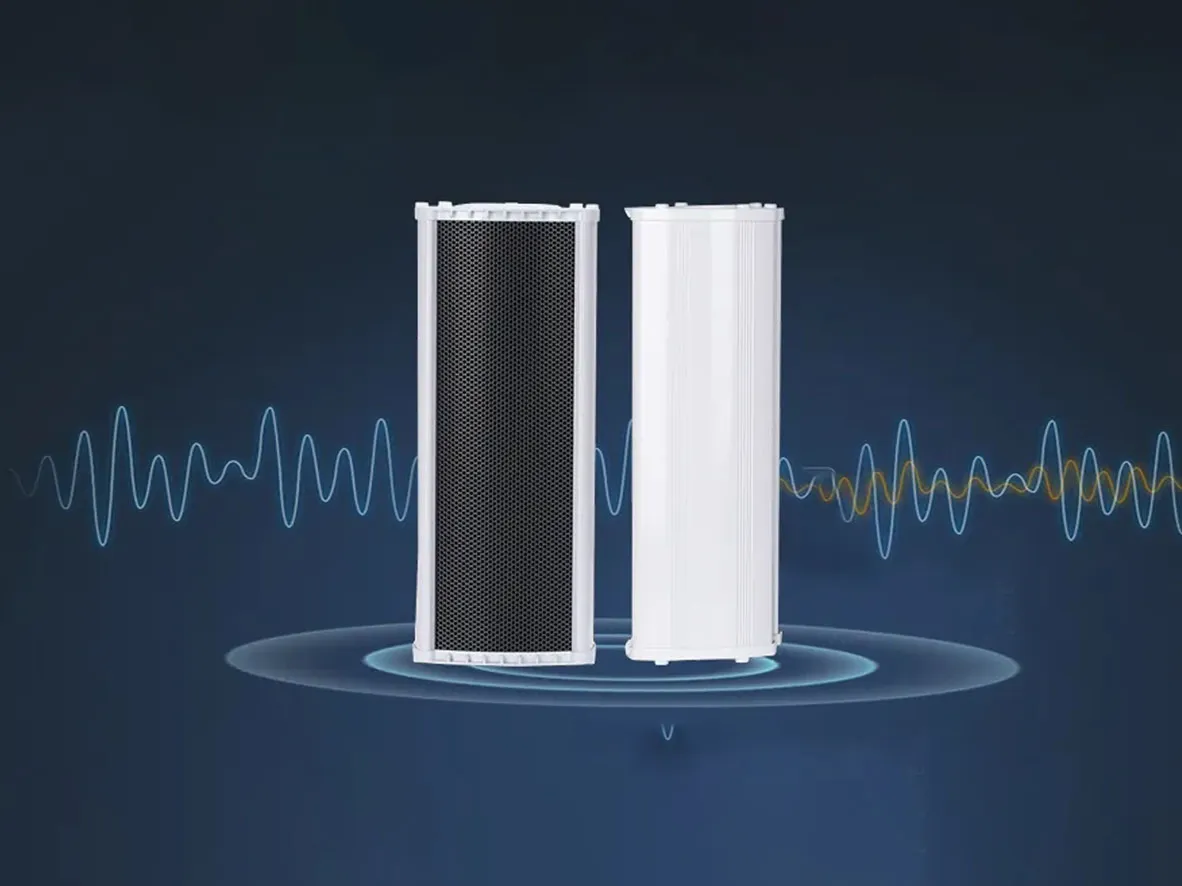

내장된 고출력 디지털 파워앰프

내장된 고출력 디지털 파워앰프

여러 정격 출력 전력 사양을 지원하고 WAV 및 MP3 형식의 오디오 파일을 지원하여 고화질 음질 방송을 지원합니다.

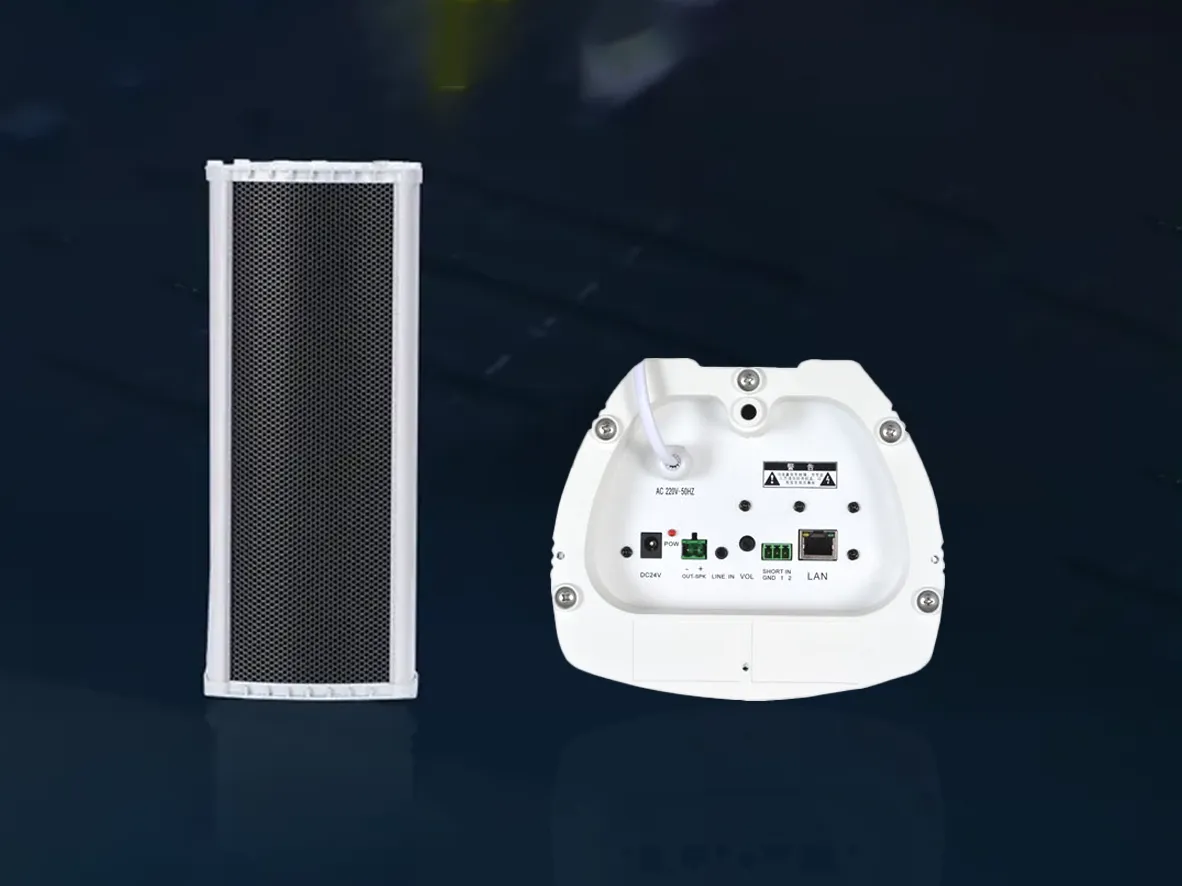

연결을 위한 다중 포트 및 다중 자체 검사 기능

피그테일 스타일의 방수 네트워크 포트를 통해 연결된 100M RJ45 네트워크 포트 1개가 장착되어 있으며, 단락, 과열 및 과부하에 대한 자동 감지 및 보호 기능이 있습니다.

연결을 위한 다중 포트 및 다중 자체 검사 기능

산업용 ARM 아키텍처 칩

안정적이고 안정적인 작동을 위해 산업용 ARM 칩을 채택하고 구성 도구를 통한 구성 및 관리뿐만 아니라 웹 로그인 액세스를 지원합니다.

핵심 장점

원활한 통합
쉬운 관리
낮은 지연 시간
유연한 네트워킹

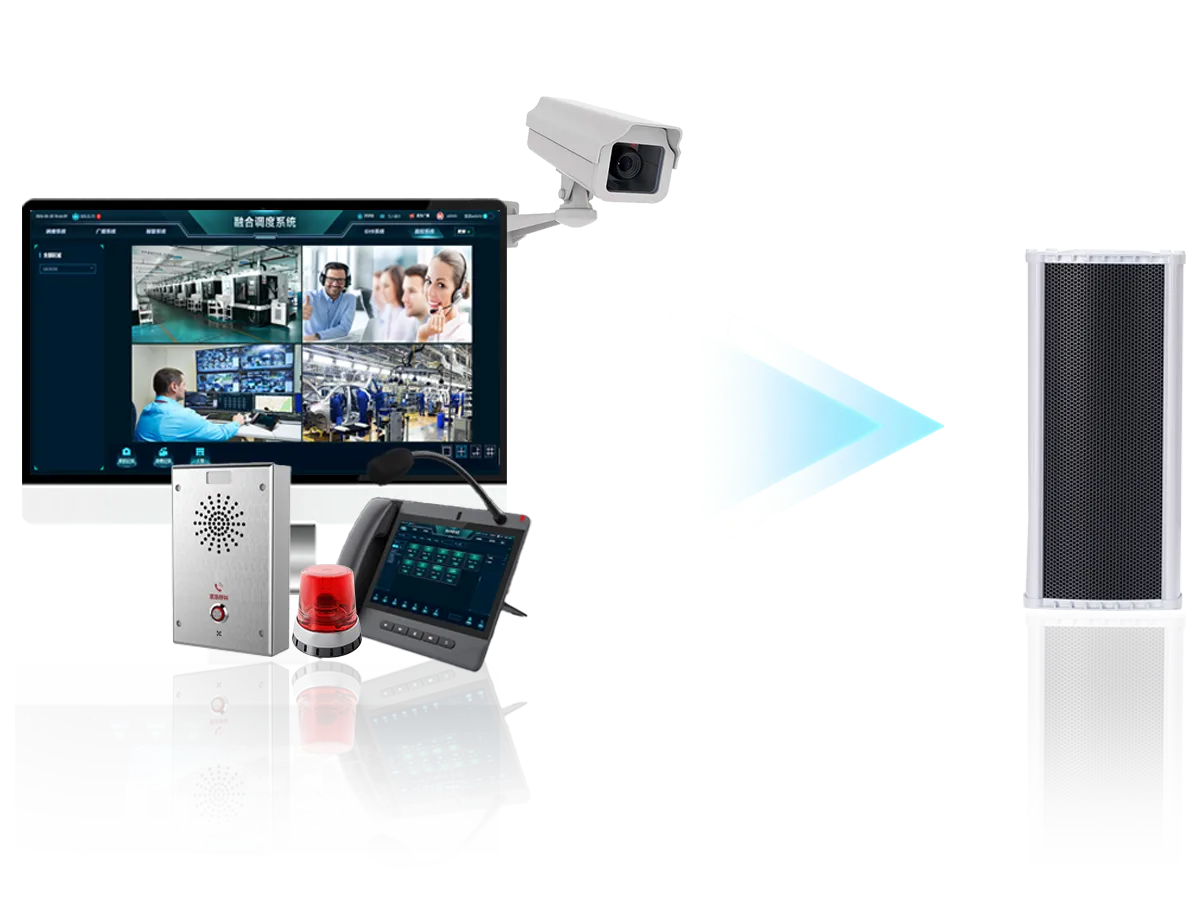

원활한 통합

원활한 통합

통합 오디오 통신 시스템을 구축하기 위해 통합 통신, 비디오 감시, 방송 인터폰, 접근 제어 및 화재 경보 시스템과 같은 다양한 외부 시스템/플랫폼과 원활하게 통합될 수 있습니다. 전체 시스템의 통합 구성 및 운영을 지원하여 산업 시나리오에서 여러 시스템의 통신 연결 효율성을 크게 향상시킵니다.

자세히 보기

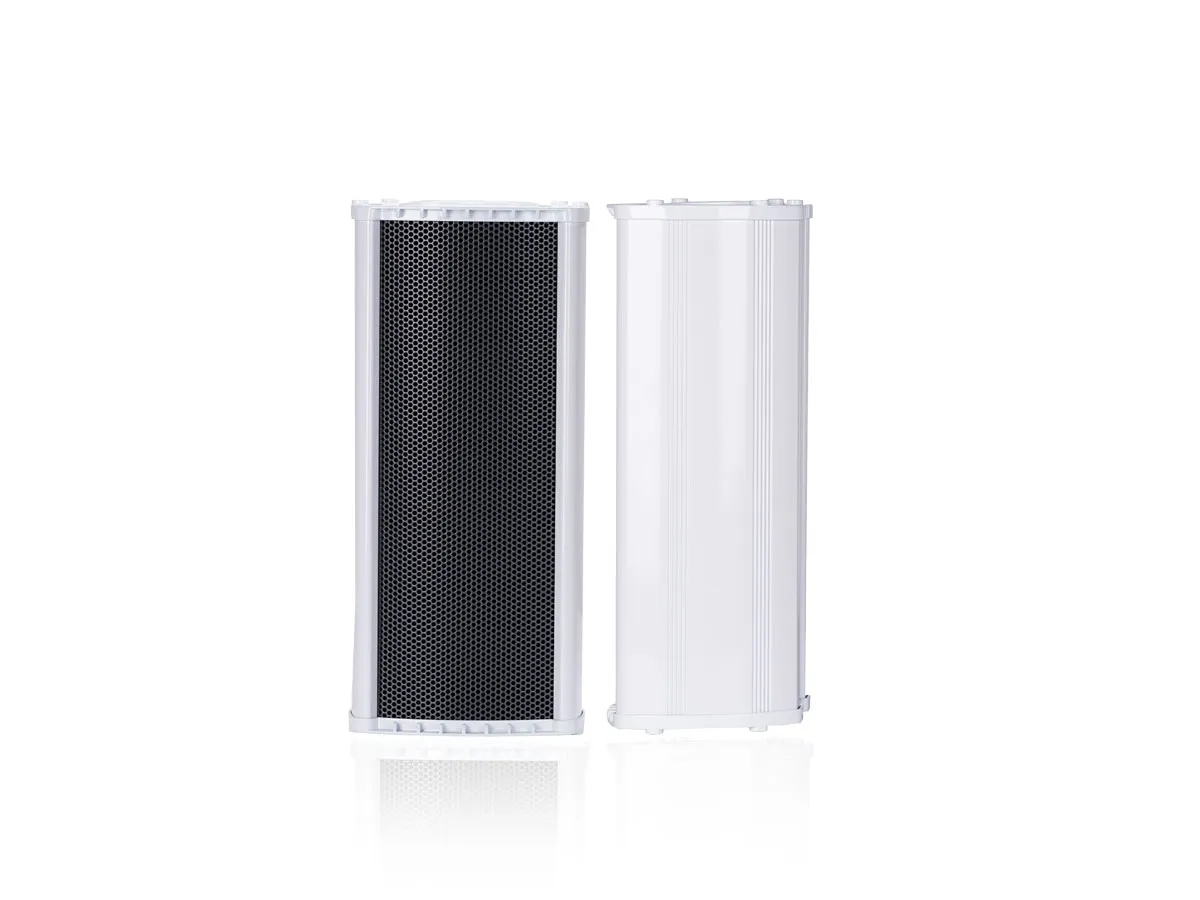

쉬운 관리

쉬운 관리

간단한 로컬 + 원격 듀얼 모드 구성 및 작동으로 빠른 벽걸이 설치를 지원합니다. 경량 O&M 도구를 제공하여 구성 파일 내보내기/가져오기 및 배치 장치 관리를 가능하게 하여 산업 시나리오에서 배포 및 사후 관리 프로세스를 크게 단순화합니다.

자세히 보기
낮은 지연 시간

낮은 지연 시간

산업용 낮은 지연 시간 전송 성능을 통해 네트워크/파일 재생 지연 시간은 <50ms이고 실시간 음성 지연 시간은 <150ms입니다. 음향 에코 취소(AEC) 기술과 결합된 전이중 인터콤은 음성 방송 및 인터콤에 대해 밀리초 수준의 정밀한 응답을 달성합니다.

자세히 보기
유연한 네트워킹

유연한 네트워킹

Asterisco 및 3CX와 같은 주류 SIP 아키텍처 플랫폼과 완벽하게 호환되며 다중 프로토콜 전송 및 다중 형식 오디오 코딩을 지원하고 IPv4/IPv6 단일/이중 스택 네트워킹 모드에 적응하며 다양한 산업 네트워크 아키텍처 시스템에 유연하게 통합할 수 있습니다.

자세히 보기

응용 프로그램 시나리오

산업 공장 지역
스마트 파크
터널 엔지니어링
포트 & 워프

생산 지침 및 안전 알림을 전달하는 야외 및 습한 생산 지역에 적합합니다. 누출 및 화재와 같은 긴급 상황의 경우 IPPBX 및 모니터링 시스템과 연계하여 비상 대피 경고를 방송할 수 있습니다. 이 장비는 고온 및 저온 저항성, 먼지 저항성 및 부식 저항성을 특징으로 합니다.

산업 공장 지역

자세히 보기

보안 경고, 방문자 안내 및 물류 일정 알림을 위해 공원 도로 및 주변 저장 수산업에 배치됩니다. 접근 제어 및 모니터링 시스템과 연결할 수 있으며 비와 야외 환경에서 안정적으로 작동합니다.

스마트 파크

자세히 보기

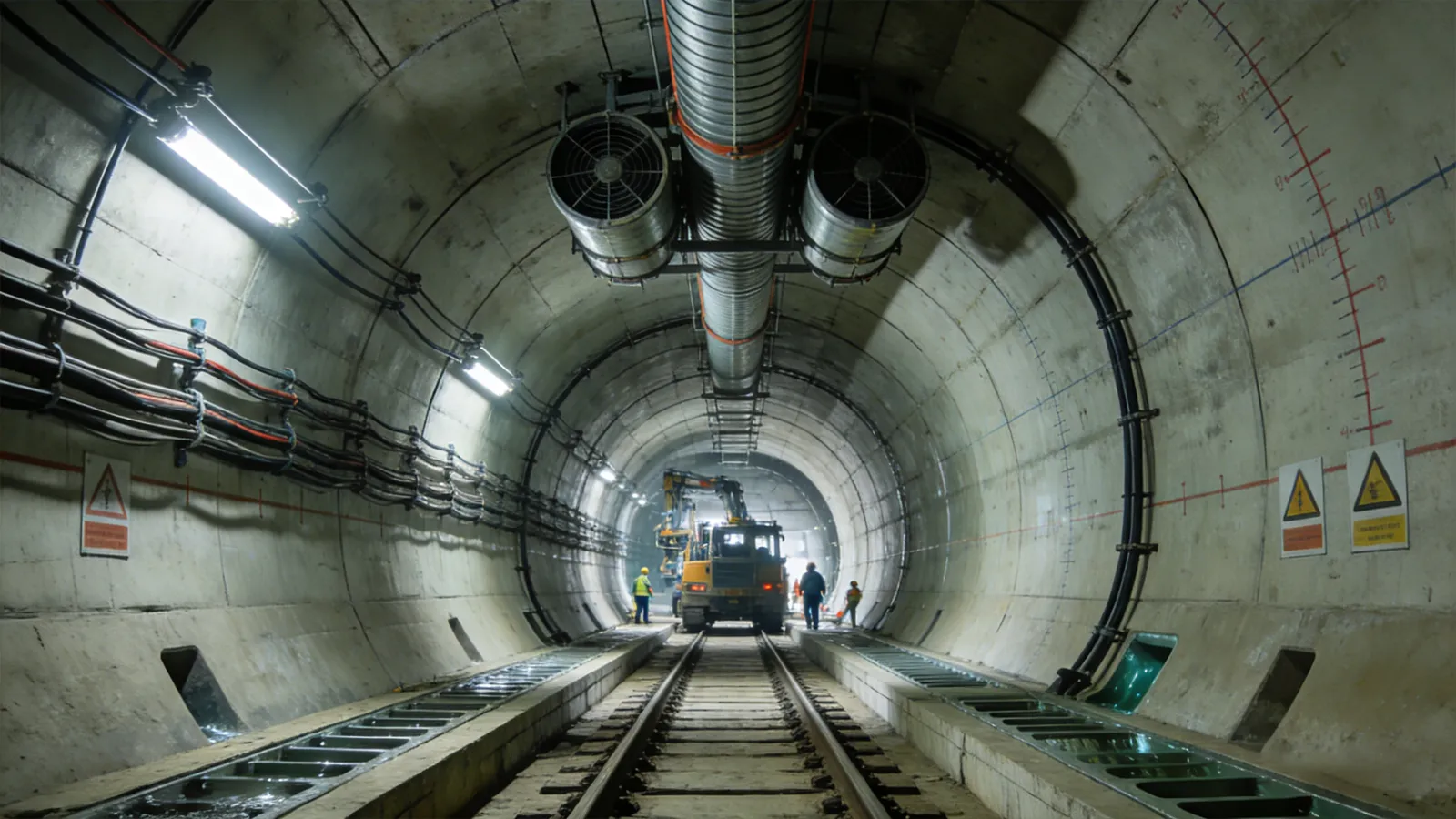

터널 입구와 출구, 플랫폼 카노피 및 교량 구역에 설치됩니다. 대피 지침 및 공사 공지를 방송하기 위해 파견 시스템과 연결됩니다. 방수 및 방습 설계는 실외 및 반밀폐 습한 환경에 적응합니다.

터널 엔지니어링

자세히 보기

작업 일정, 수위 조기 경보 및 비상 대피 정보를 전달하기 위해 저수지, 펌핑 스테이션 및 해안 부두에 적용됩니다. 이 장비는 염분 분무 및 수증기 침식에 강하며 수문 센서 및 파견 콘솔과 연결하여 자동 방송을 실현할 수 있습니다.

포트 & 워프

자세히 보기

사양


항목 사양
모델SK06
설치&설정벽부착설치
파워앰프내장60W디지털파워앰프
보호등급IP65
작동온도-20℃~50℃
지연성능파일재생지연<50ms;실시간통화지연<150ms;네트워크지연<50ms
오디오기능음성활동감지(VAD)/무음억압
호환성높은호환성;주류SIP기반IPPBX/소프트스위치/IMS플랫폼지원(Asterisk,Broadsoft,3CX,Metaswitch,Elastix,Avaya등)
SIP라인2SIP라인
음성안내IP주소음성안내지원
호응답기본자동응답
시간동기화네트워크시간동기화
멀티캐스트동적멀티캐스트기능
협대역코덱G.711A/U,G.729A/B
광대역코덱G.722,Opus
인터콤음향반향제거(AEC)기능의전이중인터콤
DTMF인밴드(In-band),아웃밴드(RFC2833/SIPINFO)
이더넷10/100Mbps이더넷
IP모드IPv4/IPv6/IPv4&IPv6
IP획득방식고정IP/DHCP/PPPoE
SIP프로토콜UDP/TCP/TLS기반SIPv1(RFC2543),v2(RFC3261)
미디어프로토콜RTP/RTCP/SRTP
통과프로토콜STUN
네트워크프로토콜DHCP,IPv6,PPPoE,L2TP,SNTP,FTP/TFTP,HTTP/HTTPS,TR-069
자동프로비저닝FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIPPnP/TR-069통한자동프로비저닝지원
관리인터페이스웹기반관리인터페이스
O&M도구웹기반패킷캡처,설정내보내기/가져오기,소프트웨어업그레이드,시스템로그(Syslog)
스피커유닛5"×2,25코어혼트위터×1
주파수응답90Hz-18kHz
감도89±2dB
최대음압레벨112±2dB
정격/최대출력60W/100W
최대음향전송거리150/200미터
치수(L×W×H)170×150×530mm
무게6kg
