The Becke BK-PA60AF is designed for projects that need more than basic sound reinforcement. It combines network audio transmission, SIP-based communication support, remote web management, and stable amplifier performance in one compact platform, making it a practical choice for outdoor paging, alarm broadcasting, scheduled announcements, and multi-site voice distribution.

For integrators, operators, and project owners, the real value of the BK-PA60AF lies in how it simplifies deployment. It can work as part of a larger IP broadcasting architecture while still giving users direct control over audio tasks, device parameters, and daily operation. This makes it especially useful in sites where reliability, remote management, and flexible broadcast control matter just as much as amplifier output.

Built for Outdoor Reliability and Day-to-Day Stability

The BK-PA60AF is positioned for continuous use in demanding environments where equipment may face unstable power conditions, temperature variation, and long operating cycles. Its hardware platform is based on a domestic dual-core ARM Cortex-A7 processor running at up to 1.2GHz, paired with a deeply customized Linux operating system. This combination supports dependable long-term operation and gives the amplifier a strong foundation for secure and stable performance.

Its built-in watchdog monitoring mechanism further improves resilience by helping the system recover from abnormal conditions before they affect service continuity. For customers planning large-scale distributed broadcast systems, this matters because it reduces maintenance risk and helps keep network audio services available over extended periods.

The amplifier also includes soft-start protection to reduce inrush current during power-on, minimizing interference with other connected devices on the same electrical network. Together with multiple intelligent protection functions such as overload, overheat, short-circuit, DC, and limiter protection, the unit is designed to keep working safely even under tough site conditions.

Key Product Advantages That Stand Out in Real Projects

Flexible Broadcast Control from Multiple Sources

One of the strongest selling points of the BK-PA60AF is the range of ways it can receive and execute broadcast tasks. It supports audio task delivery from a broadcast server, sub-control client, mobile app, and third-party applications. In practice, that means operators can launch background music, scheduled playback, text-to-speech announcements, emergency paging, and alarm broadcasts from different control layers without needing a separate amplifier workflow for each one.

This kind of flexibility is valuable in projects where normal daily broadcasting and emergency voice messaging must coexist. The same amplifier can serve routine communication during the day and switch to priority audio tasks when the system needs to react quickly.

Remote Web Management for Faster Maintenance

The BK-PA60AF provides a complete web-based remote management interface, allowing technicians to access the device by IP address through a browser. From there, users can carry out real-time program control, volume adjustment, and remote reboot operations without having to physically visit the amplifier location.

It also supports flexible parameter configuration through the web interface, including audio settings, user permission management, system configuration changes, and online firmware upgrades. This reduces maintenance time, improves operational efficiency, and is especially helpful in distributed networks where amplifiers are installed across multiple outdoor zones.

Strong Audio Networking and Protocol Compatibility

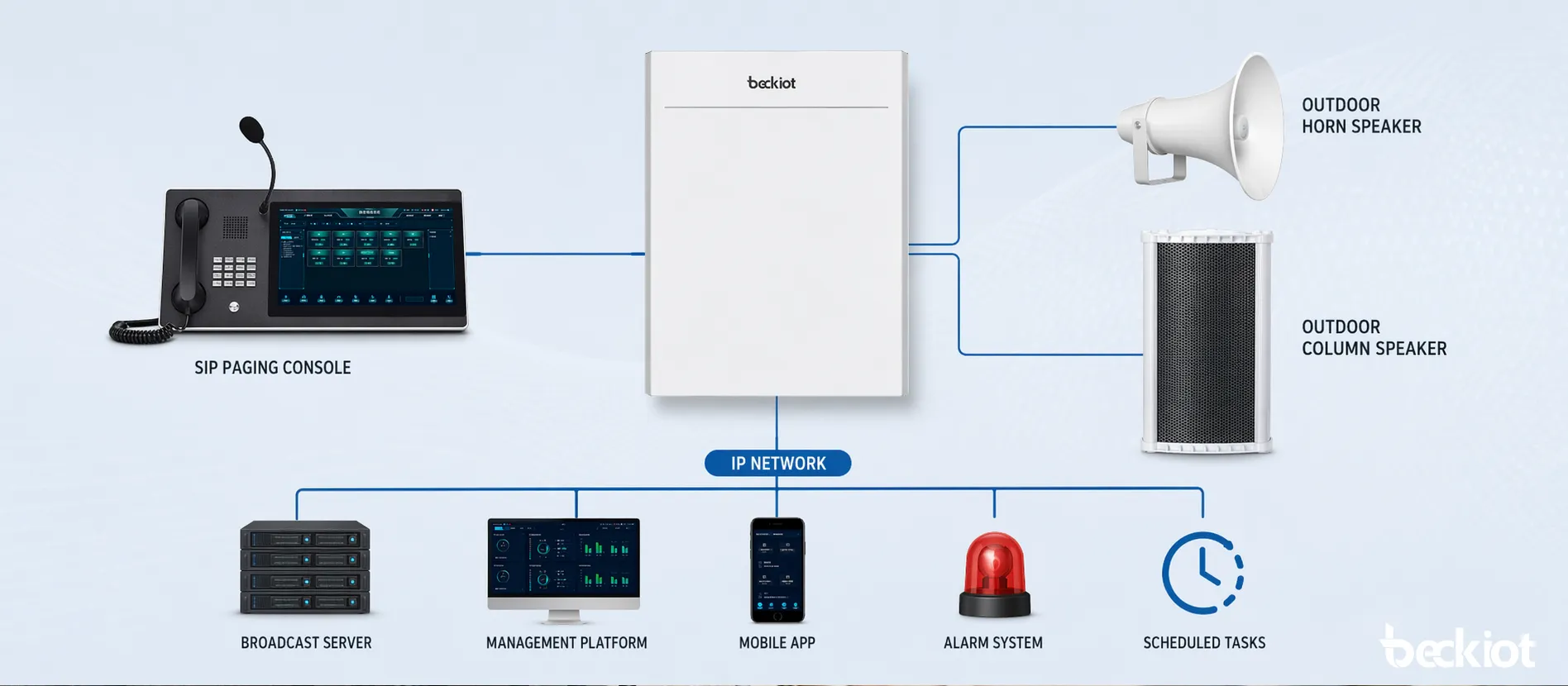

The BK-PA60AF integrates a network audio codec module and supports multiple communication protocols including TCP/IP, UDP, SIP, and HTTP. This gives system designers more freedom when connecting the amplifier into existing IP infrastructure. Whether the system is centered on SIP paging, IP broadcasting, or mixed network audio control, the amplifier can fit into the architecture without forcing unnecessary redesign.

It supports 16-bit stereo CD-quality audio transmission and works with common MP3 and WAV formats, helping maintain clear voice delivery for announcements, instructions, and alarm messages. In real deployments, this means better speech intelligibility and a more professional audio result across the network.

Performance Features That Improve Daily Use

Efficient Amplifier Design with Better Audio Control

The BK-PA60AF uses Class-D power amplifier circuitry with a full-loop feedback network to further reduce distortion and improve output stability. This design helps the amplifier remain controlled and consistent even during higher output demand, while still preserving good audio integrity for both speech and broadcast playback.

For installers and system operators, that translates into practical benefits: cleaner announcements, better output efficiency, and improved long-duration operating behavior in systems that run frequent broadcast tasks.

Wide Voltage Support for Global Deployment

The use of dual PFC switch-mode power supply technology helps improve amplifier performance while reducing power current consumption. With support for a wide AC input range from 90V to 265V, the BK-PA60AF is suitable for different power conditions and can adapt more easily to international deployment needs.

This wide voltage capability is not just a technical detail. It makes the product easier to deploy in mixed infrastructure environments and helps maintain operating stability where power quality may fluctuate.

Smart Cooling and Energy Saving

The amplifier uses an intelligent thermal design that automatically adjusts cooling behavior according to temperature changes. Its internal fan activates when needed, keeping noise relatively low while maintaining effective heat dissipation. This supports long-term equipment life and more stable amplifier performance.

It also includes an intelligent standby function. When no signal is present, the unit can automatically enter standby mode, with standby power consumption controlled at 10W or below. For projects with many distributed devices, this helps reduce unnecessary energy use without compromising readiness.

Surge Protection and Safety Assurance

The BK-PA60AF includes built-in lightning protection capable of resisting 4KV surge impact. For outdoor projects, this is a strong practical advantage. It adds another layer of protection against environmental electrical disturbances and improves confidence in long-term field deployment.

Status indicators for level, protection, and standby conditions also help technicians understand device behavior at a glance, making troubleshooting and routine inspection simpler.

Useful Interface and Expansion Capability

The BK-PA60AF includes an AUX line input with an independent volume control potentiometer, giving users a straightforward way to handle local audio sources when needed. It also provides an auxiliary audio output interface for external power amplifier expansion through a standard RCA connection, which makes field wiring more convenient and helps scale the system when more output power is required.

Beyond core amplifier functions, the product is designed for broad network adaptability. It supports DHCP and can work with routers, switches, bridge gateways, modems, the internet, 2G, 3G, 4G, 5G, multicast, unicast, and a wide range of network structures. This allows the amplifier to be deployed using existing infrastructure, which can significantly reduce installation complexity and ongoing operating costs.

An optional RS485 monitoring module is also available for projects that require centralized amplifier supervision. This can help users monitor amplifier working status in real time and support more intelligent device management across the system.

Where the BK-PA60AF Works Best

Industrial Plants and Utility Facilities

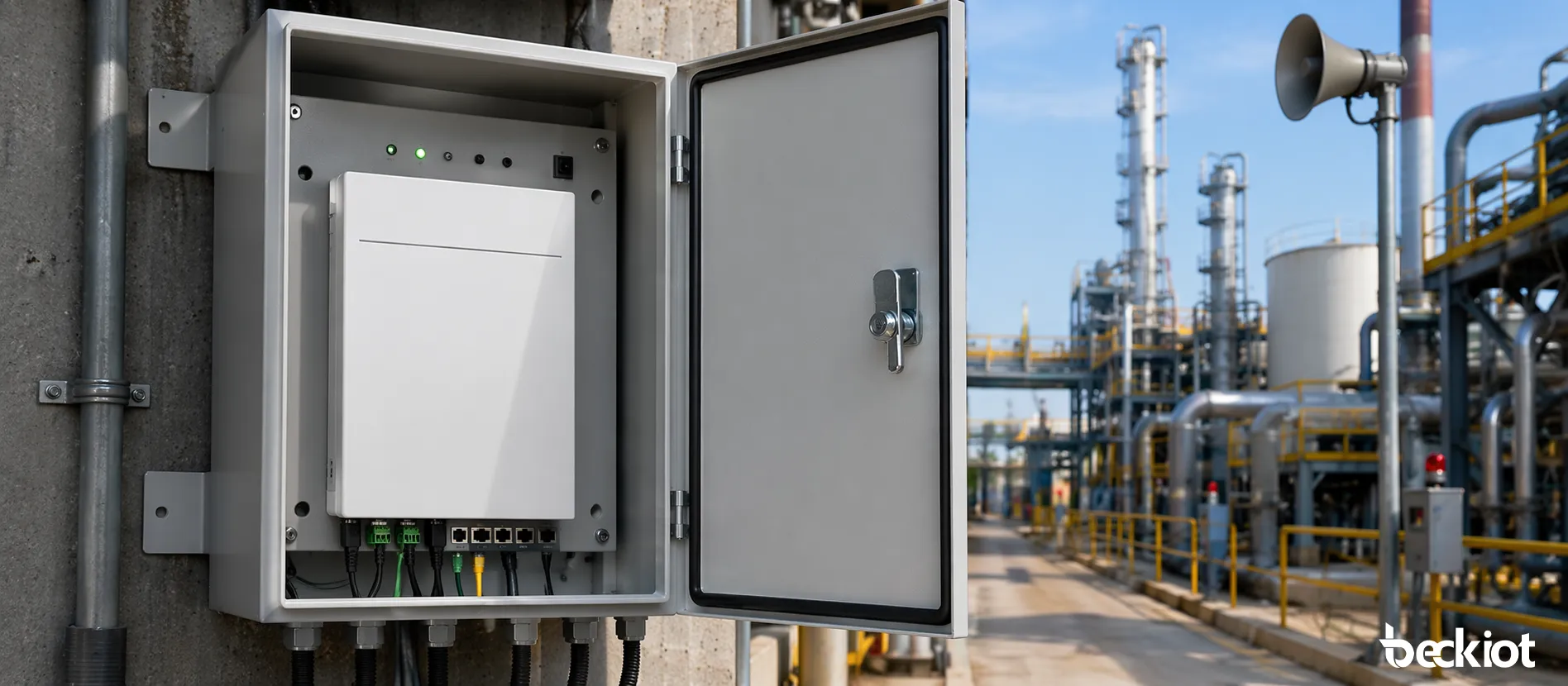

The BK-PA60AF is well suited to factories, processing plants, utility stations, and similar industrial environments where operators need scheduled announcements, area paging, alarm broadcasts, and centralized remote control. Its network flexibility and protection design make it a practical fit for distributed industrial voice systems.

Outdoor Campuses and Large-Site Paging

For campuses, logistics yards, parking areas, construction sites, and open operational zones, the amplifier can act as part of a wider outdoor public address network. It supports centralized audio control while allowing flexible expansion through IP-based architecture.

Transport and Municipal Projects

The product can also be used in transport hubs, roadside installations, public service facilities, and municipal communication systems where remote maintenance, stable broadcasting, and emergency voice delivery are important. Its web-based management and wide network compatibility are especially useful when device locations are spread across multiple field points.

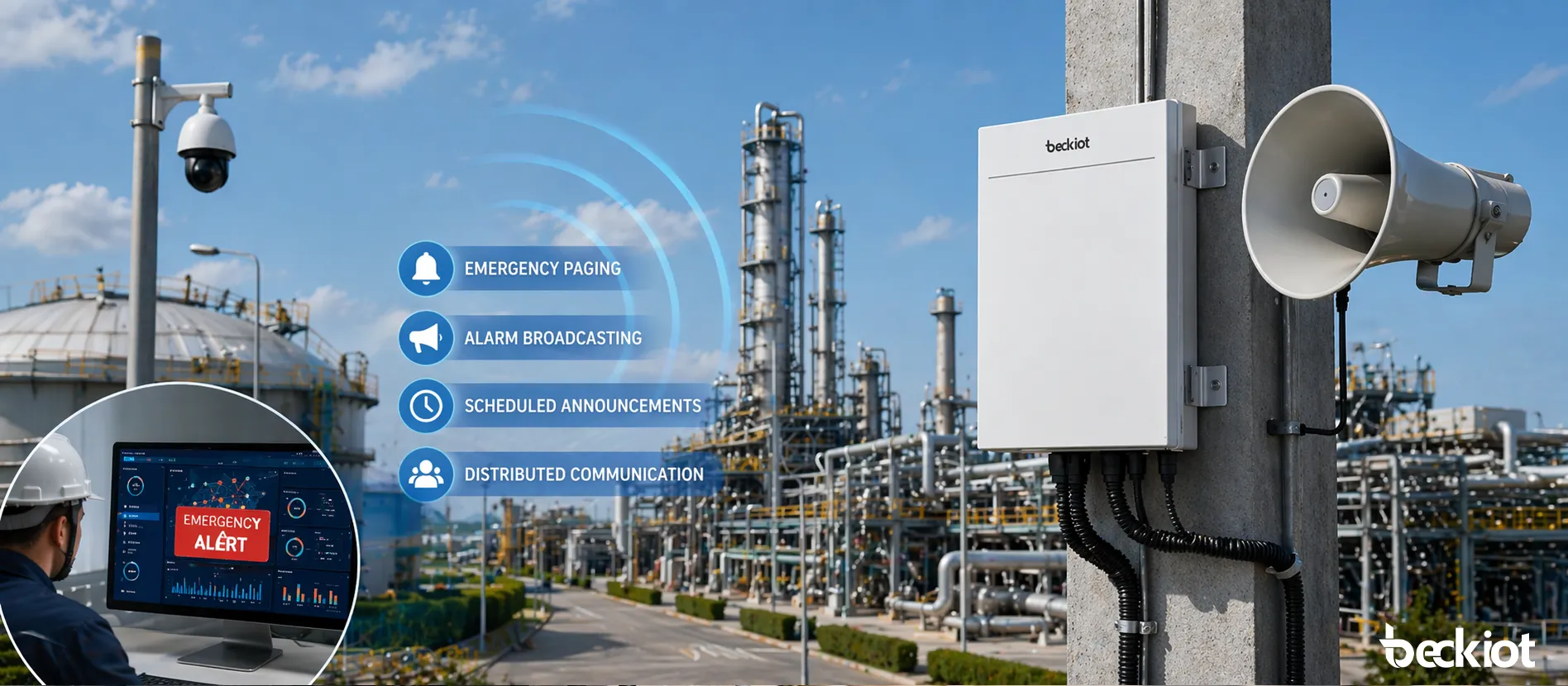

Emergency and Alarm Broadcasting Systems

Because it supports emergency paging, alarm broadcasting, TTS playback, and multi-source control, the BK-PA60AF is a strong choice for projects that need fast response and clear message delivery. It can serve as a dependable audio endpoint in systems where voice instructions must be delivered quickly and consistently.

Why Choose the BK-PA60AF

The BK-PA60AF is not simply an amplifier with network access. It is a practical outdoor IP audio device built around operational needs: remote management, flexible task delivery, stable amplifier output, protocol compatibility, energy efficiency, and protection against real-world deployment risks. For customers building modern SIP broadcasting or IP paging systems, it offers a balanced mix of reliability, control, and system integration value.

If your project needs a compact weatherproof PA amplifier that can support routine broadcasting as well as more urgent communication tasks, the BK-PA60AF provides a strong combination of functionality and deployment flexibility.

FAQ

1. What makes the BK-PA60AF different from a conventional PA amplifier?

The BK-PA60AF combines amplification with IP networking, SIP support, remote web management, multi-source broadcast control, and intelligent protection features. This makes it more suitable for modern distributed communication systems than a basic standalone amplifier.

2. Can the BK-PA60AF be managed remotely?

Yes. Users can access the amplifier through a browser by entering the device IP address. From the web interface, they can manage audio playback, adjust volume, reboot the unit, configure parameters, and perform firmware upgrades.

3. What kinds of broadcast tasks does it support?

It supports background music, scheduled broadcasting, text-to-speech announcements, emergency paging, and alarm broadcasting. Tasks can be delivered from a broadcast server, sub-control client, mobile app, or third-party application.

4. Is the BK-PA60AF suitable for outdoor and demanding environments?

Yes. It is designed for projects that require stable operation in more challenging conditions, with features such as intelligent protection, smart cooling, wide voltage support, surge protection, and optional centralized monitoring capability.
