5GC UE 시작 등록 해제 절차

5GC의 UE 시작 등록 해제에는 요청 범위, 조건부 SMF/UPF 및 정책 정리, 일반 등록 해제와 전원 끄기의 차이, T3521, 해제되거나 유지된 컨텍스트를 확인하는 시그널링 점검이 포함됩니다.

Becke Telcom

5GC UE 시작 등록 해제 절차

RRC Release만으로 UE의 등록이 해제되었다고 판단할 수는 없습니다. 등록된 UE가 액세스 시그널링 연결을 해제해도 AMF는 등록 컨텍스트를, SMF는 PDU 세션을 유지할 수 있습니다. 반면 UE 시작 등록 해제는 NAS Deregistration Request로 시작하며 지정된 액세스의 등록을 종료합니다.

트레이스를 분석할 때는 요청 범위, 적용되는 세션 및 정책 정리, 예상 NAS 응답을 순서대로 확인합니다. AMF, SMF, UPF, PCF, UDM은 이 상태의 서로 다른 부분을 보유하므로 모든 UE 레코드를 동시에 삭제하지는 않습니다.

등록 해제 범위부터 확인하기

UE는 5G-GUTI를 사용하여 AMF로 Deregistration Request를 보냅니다. Deregistration type와 그 안의 Switch off 표시, 그리고 Access Type을 확인하십시오. 대상은 3GPP 액세스, 비3GPP 액세스 또는 두 액세스를 같은 AMF가 제공하는 경우 양쪽 모두일 수 있습니다. 요청을 전달하는 액세스가 반드시 제거 대상 액세스인 것은 아닙니다.

NAS 인코딩에서 액세스 유형은 등록 해제 유형 정보 요소의 일부이며, 아래 그림의 예시 IEI를 갖는 별도 필드가 아닙니다. 식별 정보와 무결성 보호는 실제 NAS 컨텍스트를 기준으로 확인해야 합니다. 보호되지 않거나 검증할 수 없는 요청은 정리 전에 보안 처리가 필요할 수 있습니다.

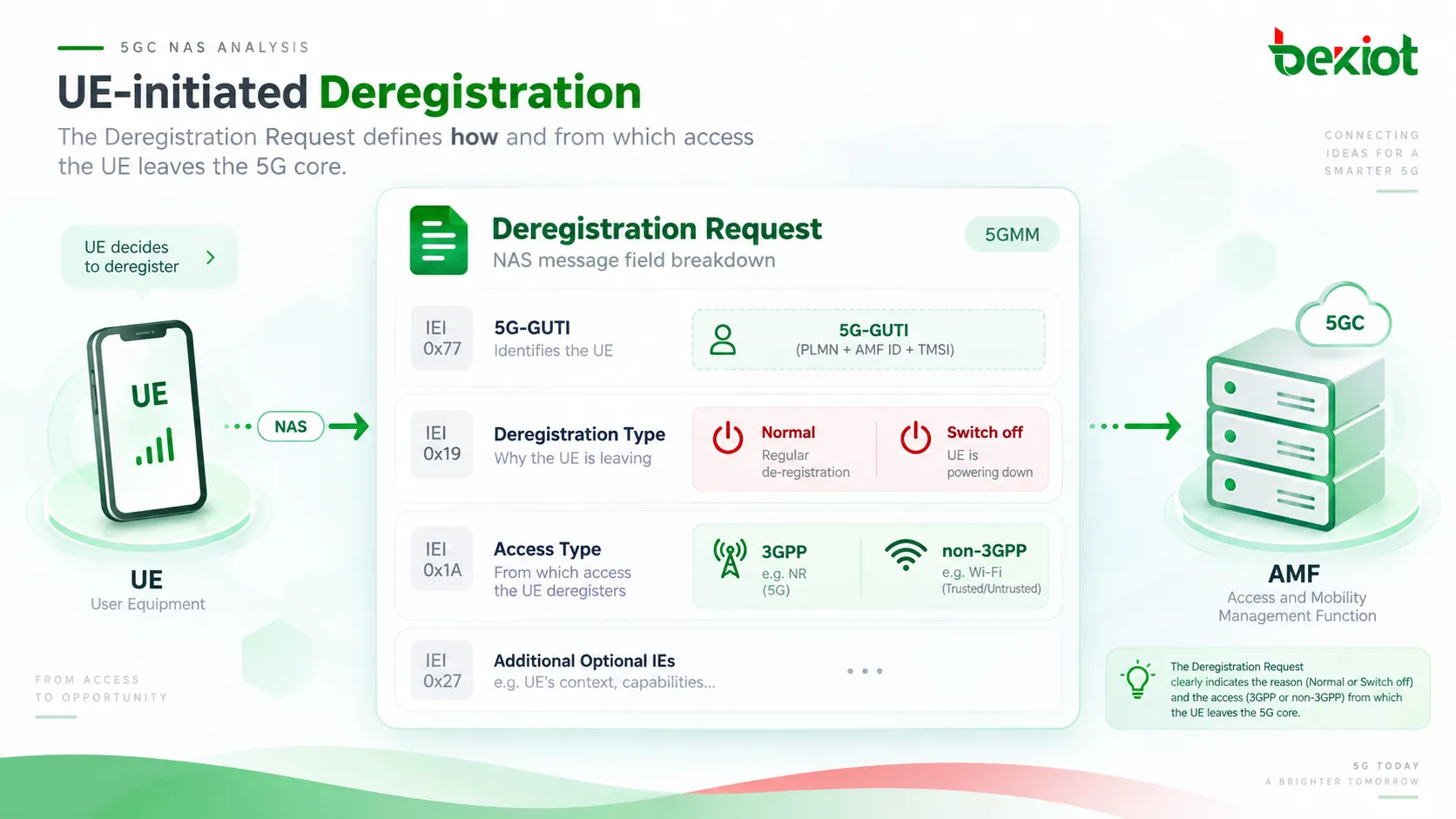

UE가 AMF로 Deregistration Request를 보내는 그림으로, 식별 정보와 등록 해제 유형 및 액세스 범위를 강조한다.
UE가 AMF로 Deregistration Request를 보내는 그림으로, 식별 정보와 등록 해제 유형 및 액세스 범위를 강조한다

대상 액세스에 속한 PDU 세션 해제하기

대상 액세스에 PDU 세션이 없으면 세션 해제 단계는 생략됩니다. 있으면 AMF는 영향을 받는 각 세션에 대해 해당 SMF로 Nsmf_PDUSession_ReleaseSMContext를 보냅니다. 독립적인 PDU 세션 해제는 데이터 세션을 제거하면서 등록을 유지할 수 있지만, 등록 해제의 범위는 더 넓습니다. 양쪽 액세스에 사용자 평면 자원이 있는 다중 액세스(MA) PDU 세션에서는 한 액세스의 등록 해제가 해당 액세스의 사용자 평면 자원만 해제하며, 세션은 다른 액세스에서 유지될 수 있습니다.

SMF는 IP 주소나 프리픽스 같은 할당된 세션 자원을 해제하고 해당 UPF에 N4 세션 해제를 요청합니다. N4에서는 PFCP Session Deletion Request와 PFCP Session Deletion Response가 삭제 교환을 나타냅니다. 삭제에 성공하면 해당 PFCP 세션과 관련 규칙이 제거됩니다. 여기에는 적용되는 PDR, FAR, QER, URR이 포함되며, 관련 터널 자원도 해제됩니다.

SMF는 SM 컨텍스트 해제 응답을 반환합니다. 홈 라우팅 로밍에서는 V-SMF와 H-SMF 간 조정도 적용됩니다. 참조 흐름의 순서는 조건에 따라 달라집니다. 보조 RAT 사용량 보고가 필요하면 AMF는 먼저 NAS 수락 통지와 액세스 해제를 수행하고 사용량 데이터를 받은 후 세션 및 정책 정리를 계속합니다.

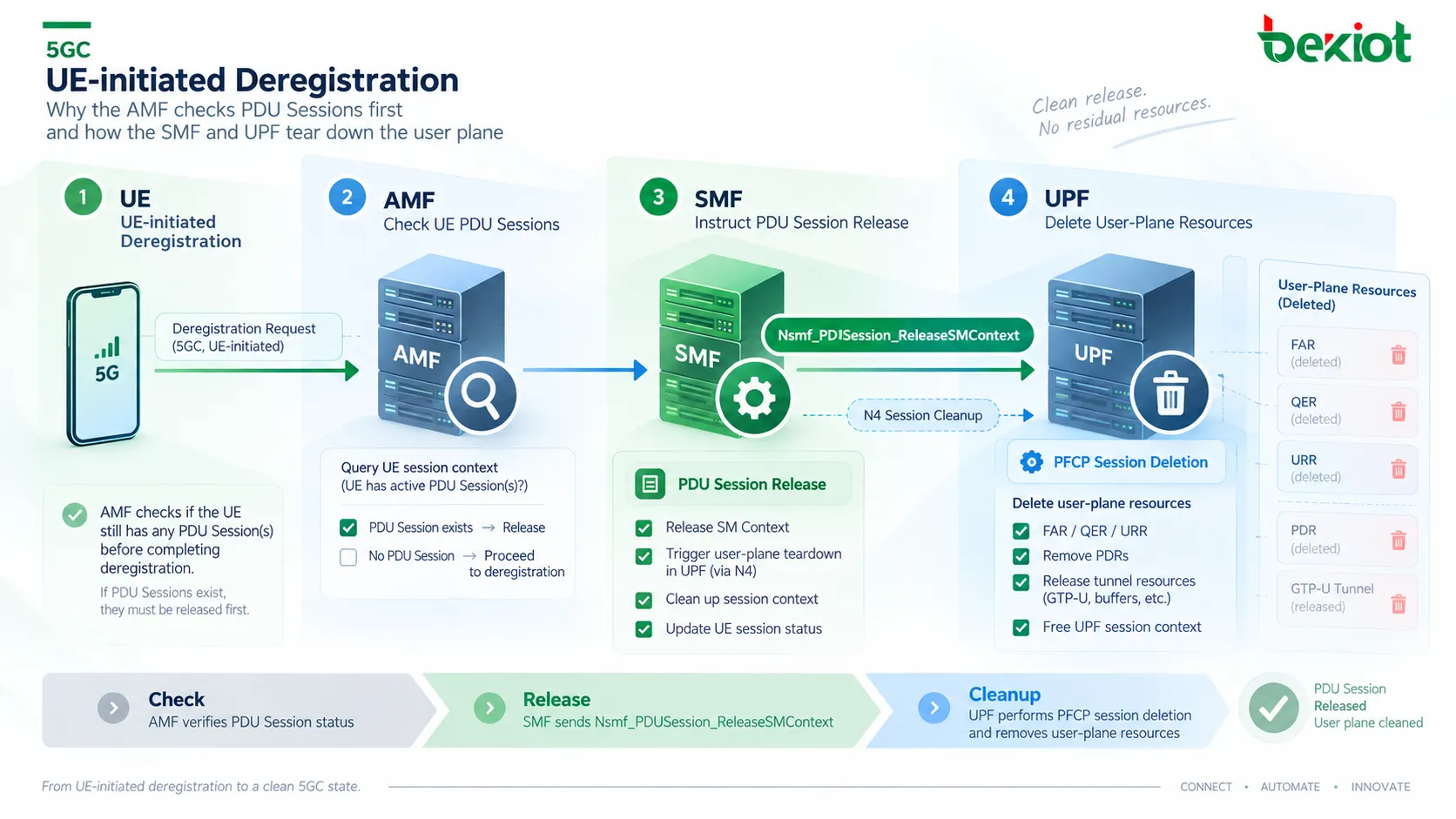

등록 해제와 사용자 평면 자원 해제에서 UE, AMF, SMF, UPF의 역할을 보여 주는 그림.
등록 해제와 사용자 평면 자원 해제에서 UE, AMF, SMF, UPF의 역할을 보여 주는 그림

불필요해진 정책 및 UDM 연결을 조건에 따라 제거하기

동적 PCC가 적용되면 SMF는 필요에 따라 Npcf_SMPolicyControl_Delete를 사용하여 SM 정책 연결을 종료합니다. SMF가 해당 UE와 관련 DNN 및 S-NSSAI에 대해 처리하는 마지막 PDU 세션이면 Nudm_SDM_Unsubscribe와 Nudm_UECM_Deregistration를 사용하여 UDM의 관련 구독과 SMF 등록 연결을 제거합니다.

UE가 어떤 액세스에도 더 이상 등록되어 있지 않으면 AMF는 기존 AM 정책 연결과 UE 정책 연결을 종료합니다. 그렇다고 가입자 프로필, 과거 과금 데이터 또는 UDM의 모든 레코드를 지워야 한다고 판단해서는 안 됩니다. 다른 등록된 액세스나 세션에 컨텍스트가 여전히 필요할 수 있으므로 정확한 연결과 범위를 확인해야 합니다.

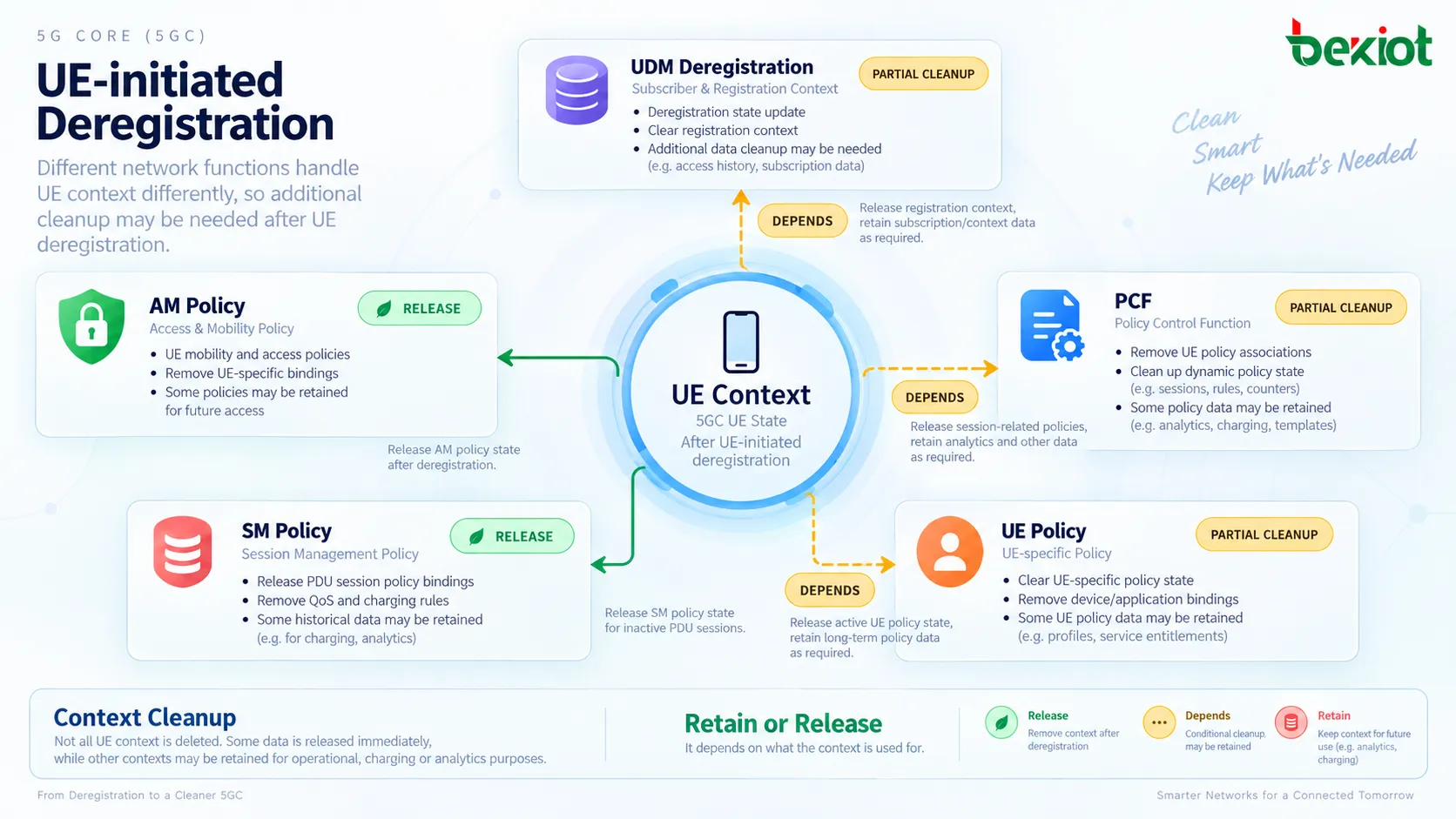

UE 컨텍스트를 중심으로 AM 정책, SM 정책, UE 정책, PCF 및 UDM 정리를 묶어 보여 주는 다이어그램.
UE 컨텍스트를 중심으로 AM 정책, SM 정책, UE 정책, PCF 및 UDM 정리를 묶어 보여 주는 다이어그램

일반 등록 해제와 전원 끄기의 종료 방식은 다르다

Normal de-registration에서는 UE가 Deregistration Accept를 기다리며 T3521로 응답을 감시합니다. 타이머가 만료되면 규정된 재시도 및 실패 처리 규칙을 따릅니다. 또한 AMF는 관련 N2 시그널링 연결이 존재하면 NG-RAN 또는 해당 비3GPP 액세스 게이트웨이와의 연결을 해제합니다.

Switch off에서는 AMF가 Deregistration Accept를 보내지 않습니다. UE는 종료 전에 이 확인을 기다리지 않습니다. 이 경우 응답이 없는 것은 예상된 동작이며, 그 사실만으로 등록 해제 실패를 의미하지 않습니다.

갑작스러운 전원 손실이나 커버리지 상실 이후에는 요청이 AMF에 도달하지 못할 수 있습니다. 이러한 비정상적인 사라짐은 네트워크 도달성 감시와, 조건이 충족될 때의 암묵적 등록 해제로 처리됩니다. 이는 전원 끄기 요청을 성공적으로 수신한 경우와 다릅니다.

실용적인 트레이스 점검 목록

  1. UE에서 AMF로 향하는 방향, 5G-GUTI, 무결성 결과, 등록 해제 유형 및 대상 액세스를 확인합니다.

  2. 해제 메시지를 찾기 전에 관련 PDU 세션과 N4 컨텍스트가 존재했는지 확인합니다.

  3. UE 및 세션 식별자로 AMF에서 SMF, SMF에서 UPF, 정책/UDM 트랜잭션을 연계하고 응답과 유지된 상태를 점검합니다.

  4. 전원 끄기가 아닌 해당 사례에서만 NAS 수락 응답을 예상하고, 액세스 해제와 사용량 보고의 조건부 순서를 고려합니다.

자주 묻는 질문

전원 끄기 요청의 전달이 보장되나요?

아니요. 갑작스러운 전원 손실이나 무선 커버리지 상실로 전달되지 못할 수 있습니다. 요청이 없다고 해서 AMF가 이미 등록 상태를 제거했다는 뜻은 아닙니다.

모든 등록 해제에 PFCP 삭제가 포함되나요?

아니요. 관련된 확립된 PDU 세션이나 N4 컨텍스트가 없으면 그에 해당하는 삭제 대상도 없습니다. PFCP 메시지가 없는 것을 장애로 분류하기 전에 이전 세션 상태를 조사해야 합니다.

다른 액세스는 등록된 상태로 남을 수 있나요?

예. 등록 해제는 한 액세스만 대상으로 할 수 있습니다. AM 정책 또는 UE 정책 연결 종료나 모든 세션 상태 제거를 예상하기 전에 지정된 범위를 확인하십시오.

네트워크 시작 등록 해제와 무엇이 다른가요?

NAS 요청은 AMF에서 UE로 전송되며, 암묵적 등록 해제에서는 요청이 없습니다. 일부 내부 정리 단계가 겹치더라도 시작 원인과 예상 응답은 다릅니다.

관련 절차 및 표준

시작 방향이 반대인 절차는 네트워크 시작 등록 해제를 참조하십시오. 암묵적 정리 전에 유휴 상태의 도달성을 이해하려면 주기적 등록 갱신을 참조하십시오.

위 절차는 3GPP TS 23.502의 4.2.2.3.2절, 3GPP TS 24.501의 5.5.2.2절과 타이머 표에 명시된 NAS 동작, 3GPP TS 29.244의 6.3.4절에 명시된 PFCP 삭제를 따릅니다. 분석하는 구축 환경에 맞게 릴리스와 지원 기능을 확인하십시오.
