SIP 산업용 전화 WiFi 사용 설명서

소개

개요

WiFi는 전자 기기가 무선 근거리 통신망(WLAN)에 연결할 수 있도록 하는 기술로, 일반적으로 2.4GHz UHF 또는 5GHz SHF ISM 무선 대역을 사용합니다. 이 문서는 WiFi 기능을 사용해야 하는 사용자를 위해 작성되었습니다.

적용 모델

이는 WiFi를 지원하는 당사 장치에 적용됩니다. (이 문서에서는 X5U를 예로 듭니다.)

필요한 장치

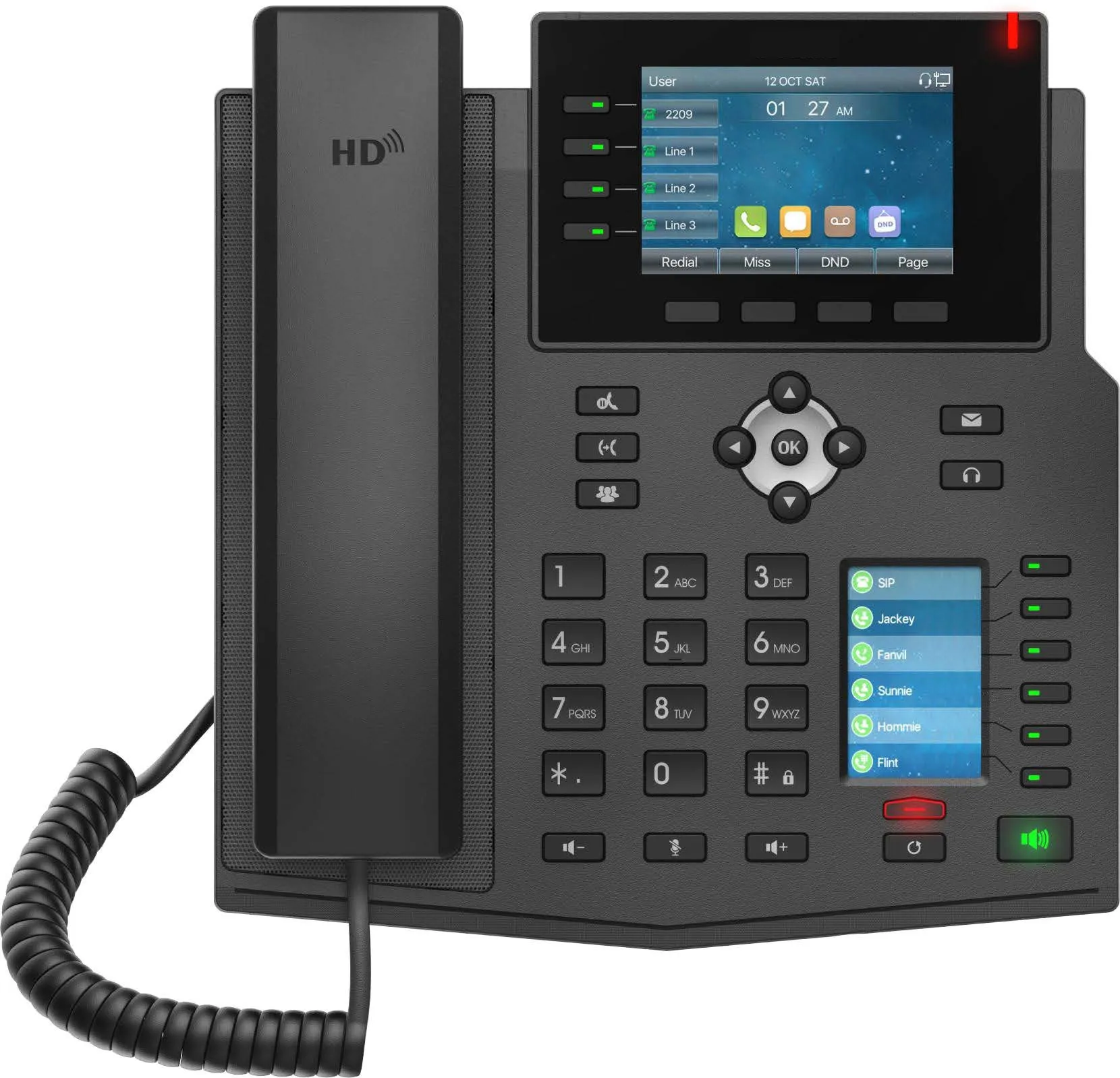

X5U 산업용 전화기

                                                       X5U 전화기 1대.

WiFi 사용 설명

어댑터

WiFi를 사용하기 전에 WiFi 어댑터를 삽입해야 합니다. 전화기는 WiFi 어댑터의 삽입 및 제거 감지를 지원합니다. 어댑터를 삽입하면 전화기 화면에 팝업 메시지가 나타나 무선 어댑터가 추가되었음을 알리고 네트워크 스캔을 시작하라는 메시지를 표시합니다(확인을 클릭하여 스캔 시작). 어댑터를 제거하면 전화기에도 무선 어댑터가 제거되었음을 알리는 메시지가 표시됩니다.


                       그림 1                                                    그림 2

WiFi 설정

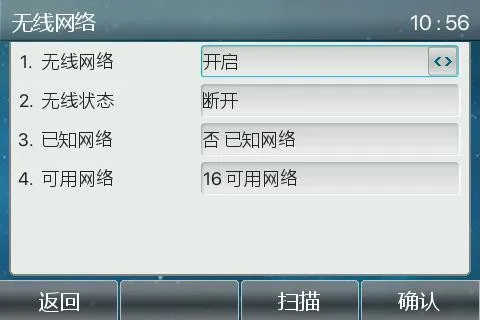

전화기 대기 화면에서 "메뉴" - "기본 설정" - "무선 네트워크"를 누릅니다. "무선 네트워크"를 활성화하면 다음과 같은 네 가지 설정 항목이 표시됩니다. 아래 그림과 같습니다.

WiFi 설정
무선 네트워크: WiFi를 켜거나 끄는 데 사용됩니다.
무선 상태: 현재 WiFi 상태를 표시합니다. 선택하고 "Enter"를 눌러 연결 후 할당된 IP 주소를 포함한 자세한 정보를 볼 수 있습니다.
알려진 네트워크: 이 메뉴로 들어가면 이전에 연결했던 WiFi 네트워크가 표시됩니다. 연결 기록으로 작동하며 저장된 네트워크에 다시 연결하거나 삭제할 수 있습니다.
사용 가능한 네트워크: 이 항목을 선택한 후 "스캔" 키를 눌러 사용 가능한 WiFi 네트워크를 스캔할 수 있습니다. "Enter"를 눌러 스캔된 WiFi 이름을 보고 그 중 하나에 연결합니다.

WiFi 연결

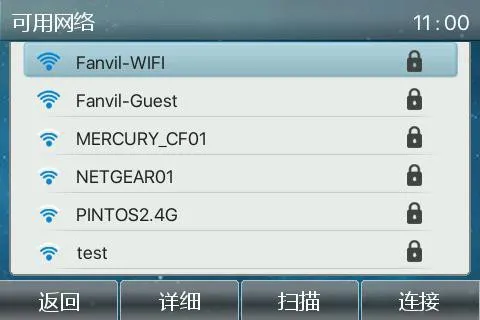

"사용 가능한 네트워크"를 선택하고 "Enter"를 클릭하여 스캔된 WiFi 네트워크를 확인합니다. 원하는 WiFi를 선택하고 비밀번호를 입력한 다음 "연결"을 클릭하여 연결을 완료합니다. 아래 그림과 같습니다.
WiFi 연결

연결 성공

연결이 성공적으로 설정된 후 전화기는 연결된 무선 상태를 표시합니다. "무선 상태"에서 할당된 IP 주소를 포함한 연결 세부 정보를 확인할 수도 있습니다.
