실내 SIP 도어 스테이션에서 IP 다이렉트 다이얼을 사용하는 방법

소개

개요

두 대의 실내 SIP 단말기가 동일한 통신 가능 로컬 네트워크에 연결된 경우, PBX 서버에 등록하지 않고 IP 주소만으로 직접 통화할 수 있습니다. 이를 통해 내부 네트워크에서 기본적인 인터콤 통신을 사용할 수 있습니다.

적용 모델

i51W / i52W / i53W / i56A

준비 사항

① i51W, i52W, i53W 각 1대와 PoE 스위치(또는 DC 전원 공급장치)를 준비하고 모든 기기를 스위치에 연결합니다.
② 설정 및 테스트용 PC를 동일 스위치에 연결하여 기기와 PC 간 네트워크 통신이 정상적으로 이루어지도록 합니다.

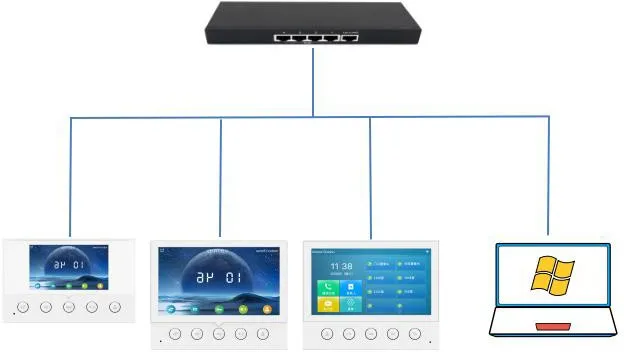

기기 및 PC 연결 다이어그램

i51W, i52W, i53W 기기를 스위치에 연결하고 PC도 동일 스위치에 연결하여 모든 장비가 같은 네트워크에 속하도록 구성합니다. 자세한 내용은 그림 1을 참고하십시오.
Device and PC connection diagram
그림 1

설정 방식

단축번호 발신 (i51W / i52W / i53W / i56A)

브라우저에 기기 IP 주소를 입력하여 실내 단말기 웹 설정 페이지에 접속합니다. 기본 아이디와 비밀번호는 모두 admin 입니다.

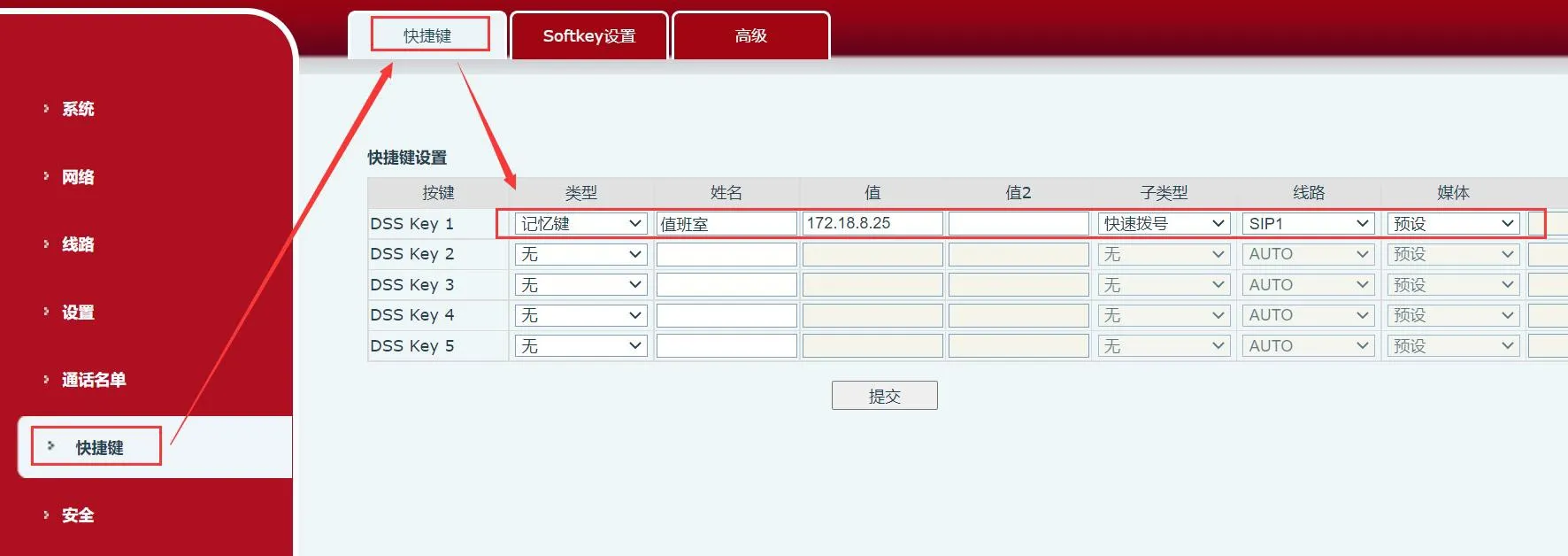

Function Key --- DSS Key --- DSS Key Settings 메뉴에 진입하여 정보를 입력하고 설정을 저장합니다.
키 유형을 Memory Key로 지정하고 원하는 이름을 입력한 후 원격 기기의 IP 주소를 기입, 동작 유형은 Speed Dial로 선택합니다.
i51W / i52W:기기 본체의 시스템 정보 메뉴에서 IP 주소를 확인할 수 있습니다.
i53W:메뉴 >> 상태를 눌러 IP를 확인합니다.
i56A:기기 부팅 후 상단 알림창을 아래로 내려 IP 주소를 확인합니다.
Speed-dial configuration screen

수동 다이얼 (i53W / i56A)

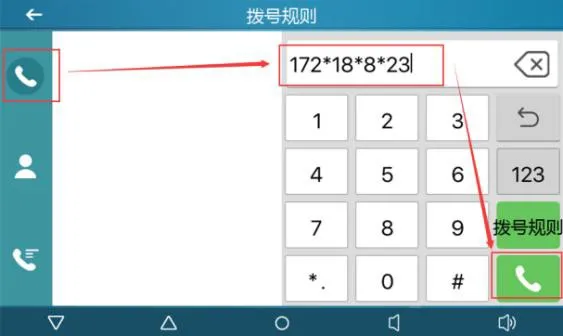

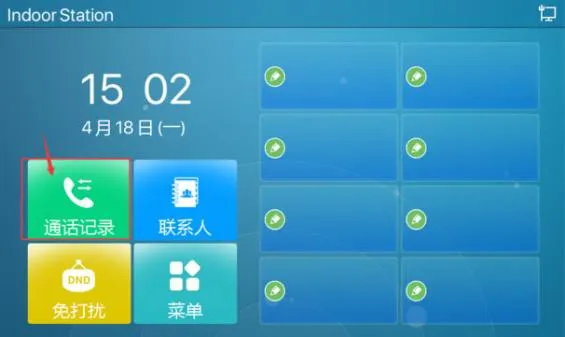

실내 단말기에서 통화 기록을 터치하고 다이얼 키패드를 열어 목표 IP 주소를 입력하면 통화를 발신할 수 있습니다.
예시:A 기기 주소가 172.18.8.22일 때 172.18.8.23으로 발신하려면 IP를 직접 입력하며, IP의 점(.) 대신 * 키를 사용합니다.
Indoor station call log screen
Indoor station dial pad for IP address entry

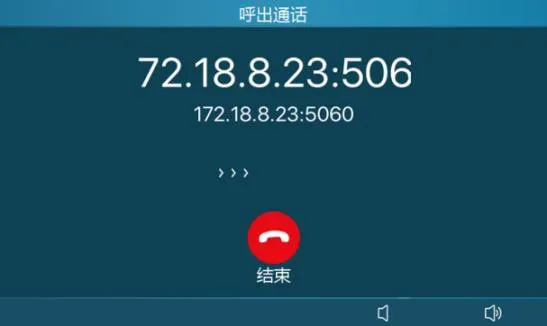

IP calling screen

주요 유의사항

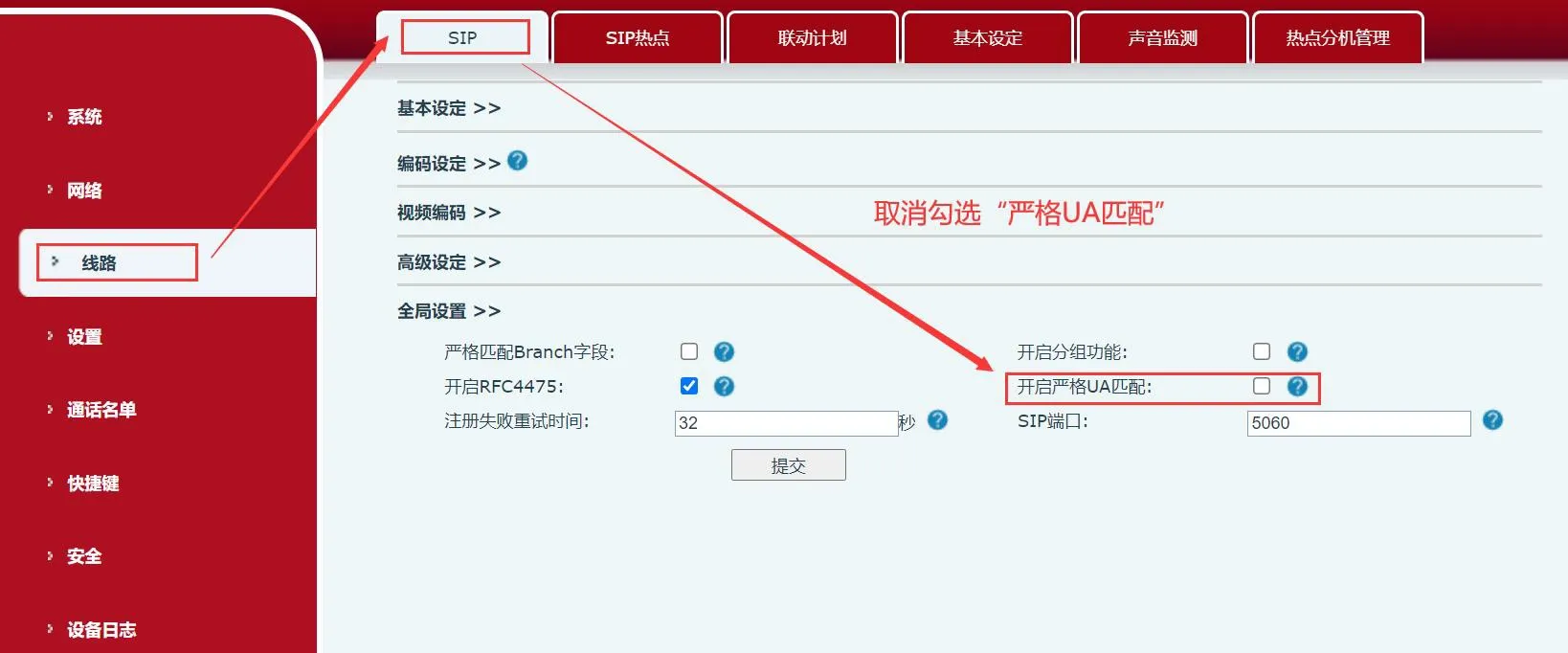

엄격 UA 일치 기능을 비활성화하여 다른 기기에서의 수신이 정상적으로 이루어지도록 설정하세요.
Strict UA Match disable screen

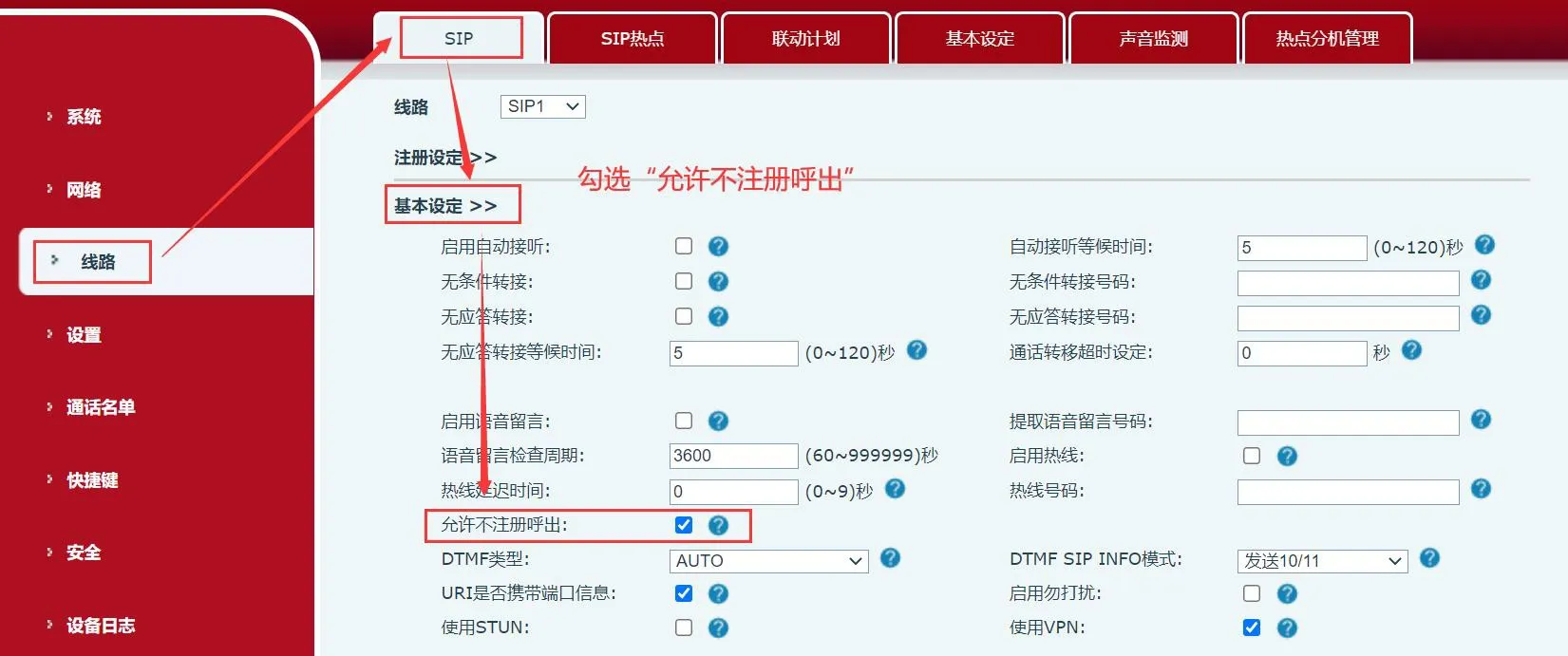

미등록 발신 허용 옵션을 활성화하면 SIP 서버에 등록하지 않은 상태에서도 내부 네트워크 기기 간 통화 발신이 가능합니다.
Allow unregistered outgoing calls setting screen
