방송 응용 프로그램에서 통화 및 페이징 우선 순위를 사용하는 방법은 무엇입니까?

소개

개요

본 가이드는 SIP 서버 기반 방송 시스템에서 BK-DAB-PA3 방송 게이트웨이의 통화 및 호출 우선순위 기능 사용 방법을 설명합니다. 기본적으로 장치가 방송 오디오를 재생 중일 때 수신 전화는 현재 재생을 중단할 수 없습니다. 통화 및 방송 우선순위 설정을 조절하면 실시간 통화가 실행 중인 방송을 강제 중단하도록 설정할 수 있습니다. 본문에서는 해당 기능의 구성 방법과 사용 방식을 상세히 안내합니다.

적용 모델

BK-DAB-PA3

네트워크 연결도

PC, BK-DAB-PA3, SIP 서버를 동일 스위치에 연결하여 모든 장치가 상호 네트워크 통신이 가능하도록 구성합니다. 기본 연결 예시는 아래 그림과 같습니다.

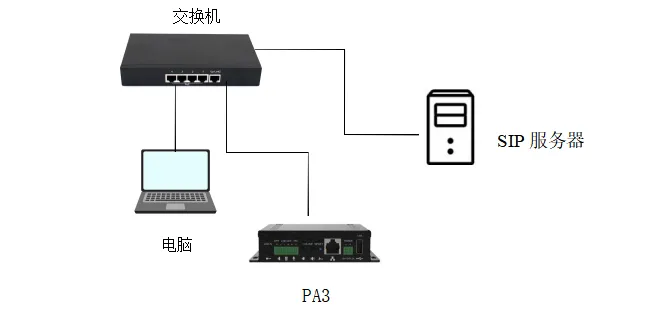

BK-DAB-PA3 및 SIP 서버 네트워크 연결도

방송 시스템에서 통화 및 호출 우선순위 사용

우선순위 기능 개요

통화 및 방송 우선순위는 장치가 실시간 통화를 먼저 처리할지, 방송 스트림을 지속할지 결정하는 설정입니다. 다수의 산업용 방송 환경에서 방송 재생 중 긴급 통화를 개입해야 하는 상황이 빈번하며, 우선순위 조정을 통해 해당 기능을 구현할 수 있습니다.

1. BK-DAB-PA3의 IP 주소를 확인한 후 장치 웹 관리 페이지에 로그인하고 인터콤 설정 —> 멀티캐스트 메뉴로 진입합니다.

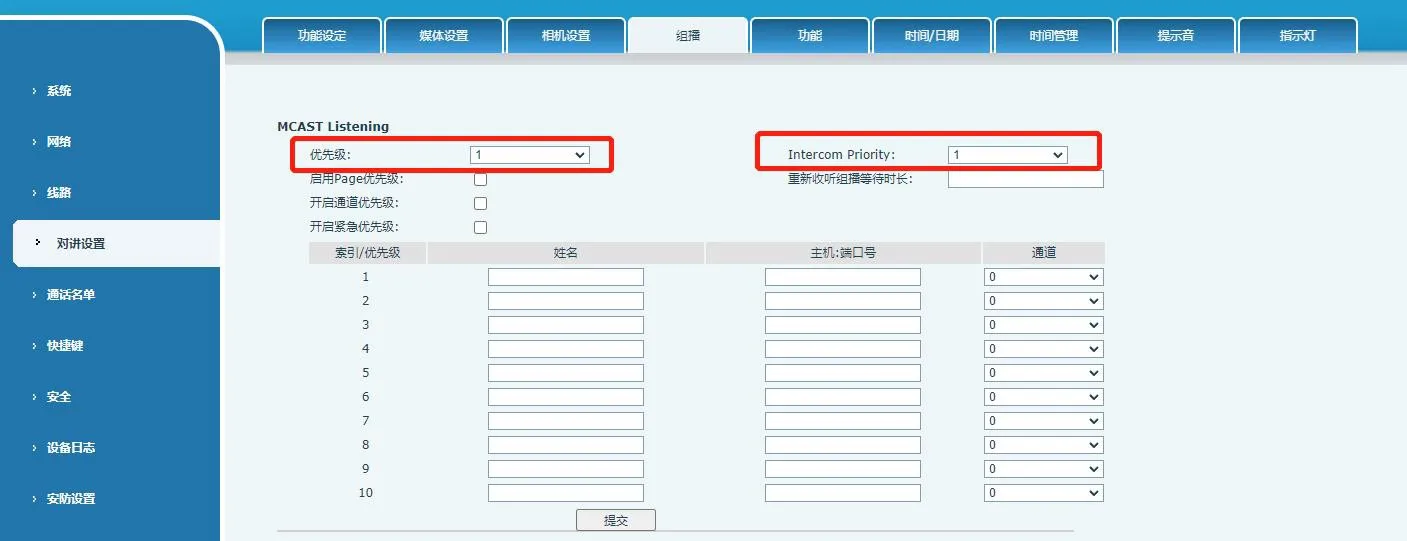

BK-DAB-PA3 멀티캐스트 설정 페이지 진입

2. 멀티캐스트 페이지에서 우선순위인터콤 우선순위 옵션을 확인할 수 있으며, 각 항목의 기능은 다음과 같습니다.

우선순위: 일반 통화의 우선 레벨을 지정하며 1~10까지 설정 가능합니다. 숫자가 작을수록 우선순위가 높습니다.

인터콤 우선순위: 방송 및 호출 음성의 우선 레벨을 설정하며 동일하게 1~10 범위로 지정하고, 숫자가 작을수록 우선도가 상승합니다.

우선순위 활용|방송 중 통화 개입 설정

기본 공장 설정에서는 실시간 통화가 진행 중인 방송을 중단할 수 없습니다. 통화와 방송 우선순위 값을 조절하면 해당 제약을 해결할 수 있으며, 아래 단계별 설정으로 통화 우선 모드를 활성화할 수 있습니다.

1. BK-DAB-PA3 웹 인터페이스에 접속 후 인터콤 설정 —> 멀티캐스트로 이동합니다. 우선순위 수치를 인터콤 우선순위보다 낮게 입력합니다. 낮은 숫자는 높은 우선순위를 의미하므로 실시간 통화가 방송보다 우선 처리됩니다.

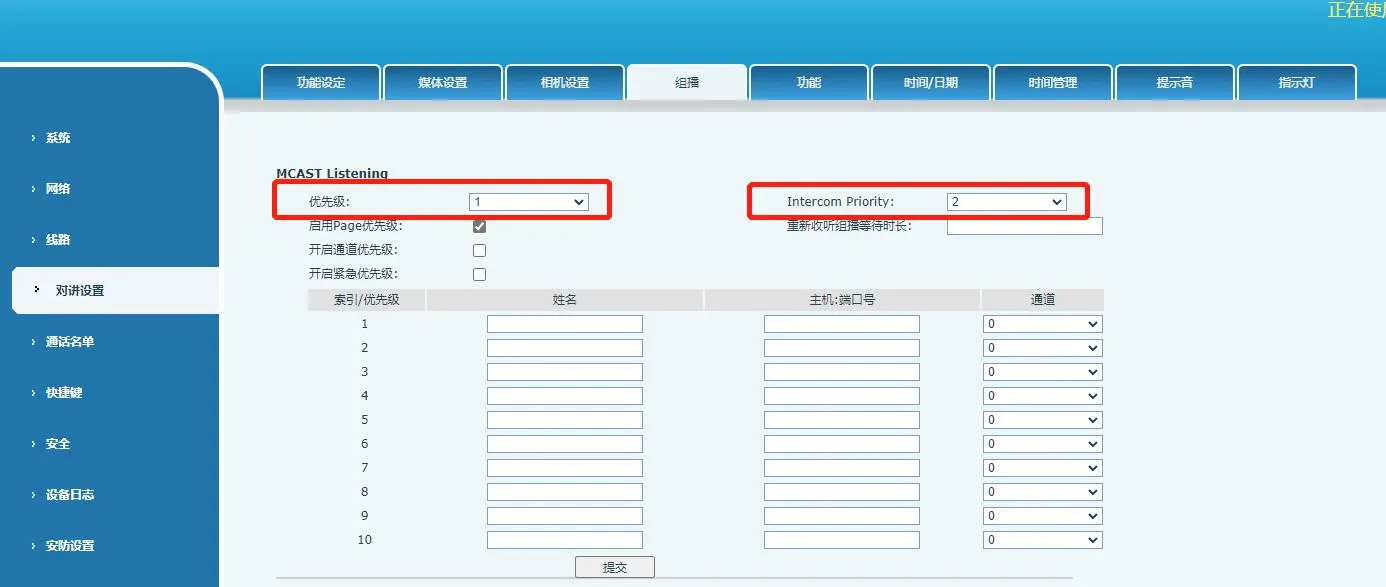

BK-DAB-PA3 통화 우선순위 상위 설정

2. 값 수정 후 제출 버튼을 클릭하여 설정을 저장합니다. 설정 완료 시 실시간 통화가 방송 스트림을 자동으로 중단합니다.

3. Yunyi SIP 서버 기반 테스트 예시:

계정 719로 BK-DAB-PA3를 Yunyi SIP 서버에 등록합니다. 서버에서 방송 작업을 실행하여 PA3 기기가 SIP 방송 콘텐츠를 재생하도록 합니다.

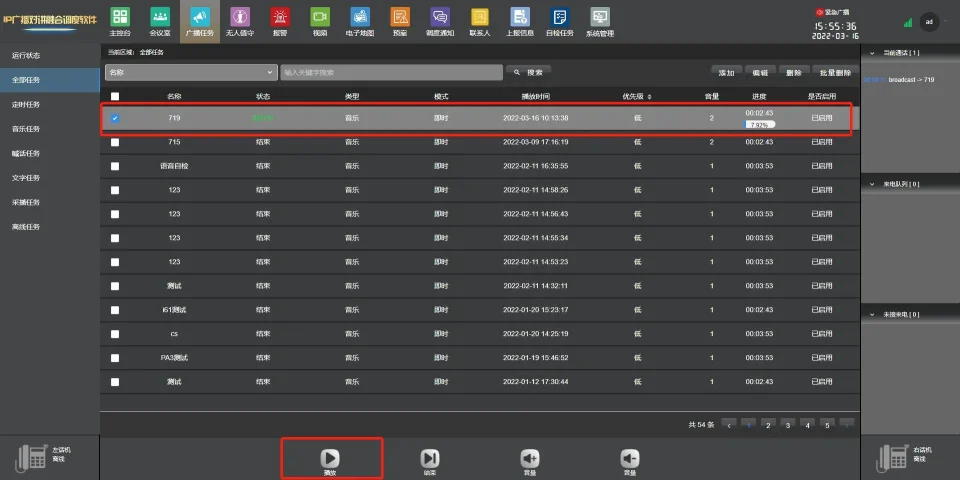

Yunyi SIP 서버 방송 재생 테스트

4. 다른 단말기에서 BK-DAB-PA3로 전화를 걸면 장치가 통화를 수락하고 방송 재생을 일시 정지합니다. 통화 종료 후 방송은 자동으로 재개됩니다.

PA3 방송 중 실시간 통화 개입 테스트
