POST 모드에서 기본 전화 펌웨어를 업그레이드하는 방법은 무엇입니까?

소개

개요

전화기 시작 중에 POST 모드가 표시되거나 장치를 다시 플래싱해야 하는 경우 POST 업그레이드 기능을 통해 펌웨어를 업그레이드할 수 있습니다.

적용 모델


적용 모델: BX1 / BX2 / BX2C / BX3S / BH3 / BH5

필요한 자료

① POST 업그레이드를 위한 FTP 서버
② 펌웨어 업그레이드 패키지
③ Windows 내장 Telnet 클라이언트, PuTTY 또는 SecureCRT와 같은 Telnet 도구

해결 방법

FTP 서버 구성

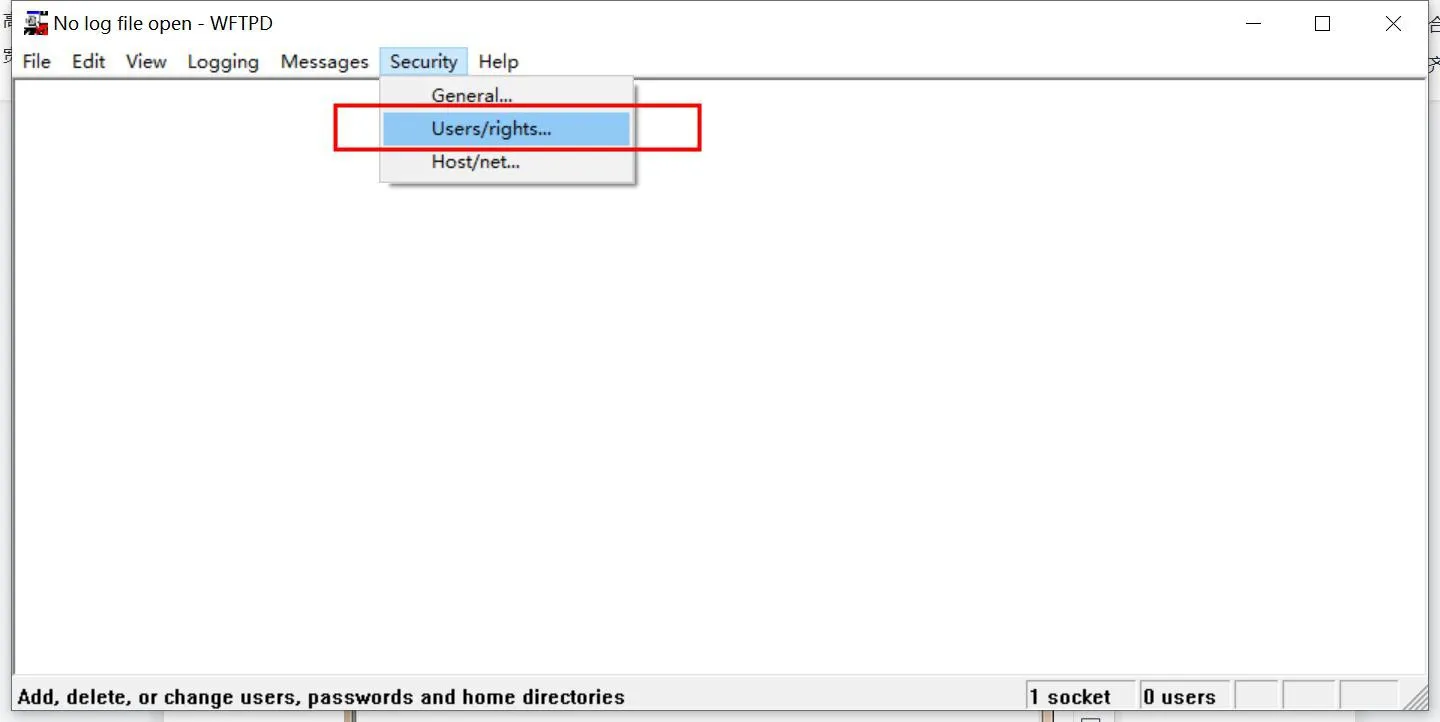

1. PC에서 wftpd32를 실행한 다음 메뉴 표시줄에서 Security -> User/rights를 선택합니다.
PC에서 wftpd32 실행

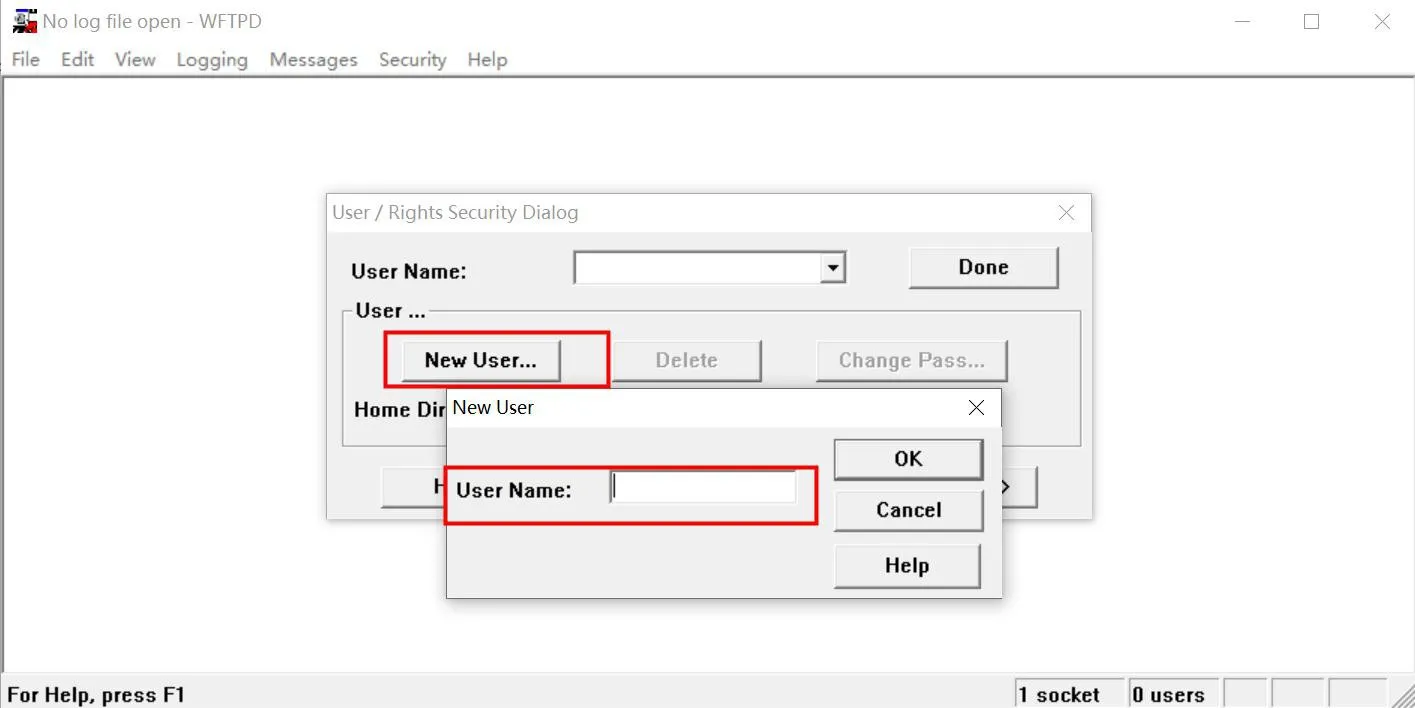

2. FTP 서버 액세스를 위한 사용자 이름과 비밀번호를 생성합니다:
FTP 서버 액세스를 위한 사용자 이름과 비밀번호 생성

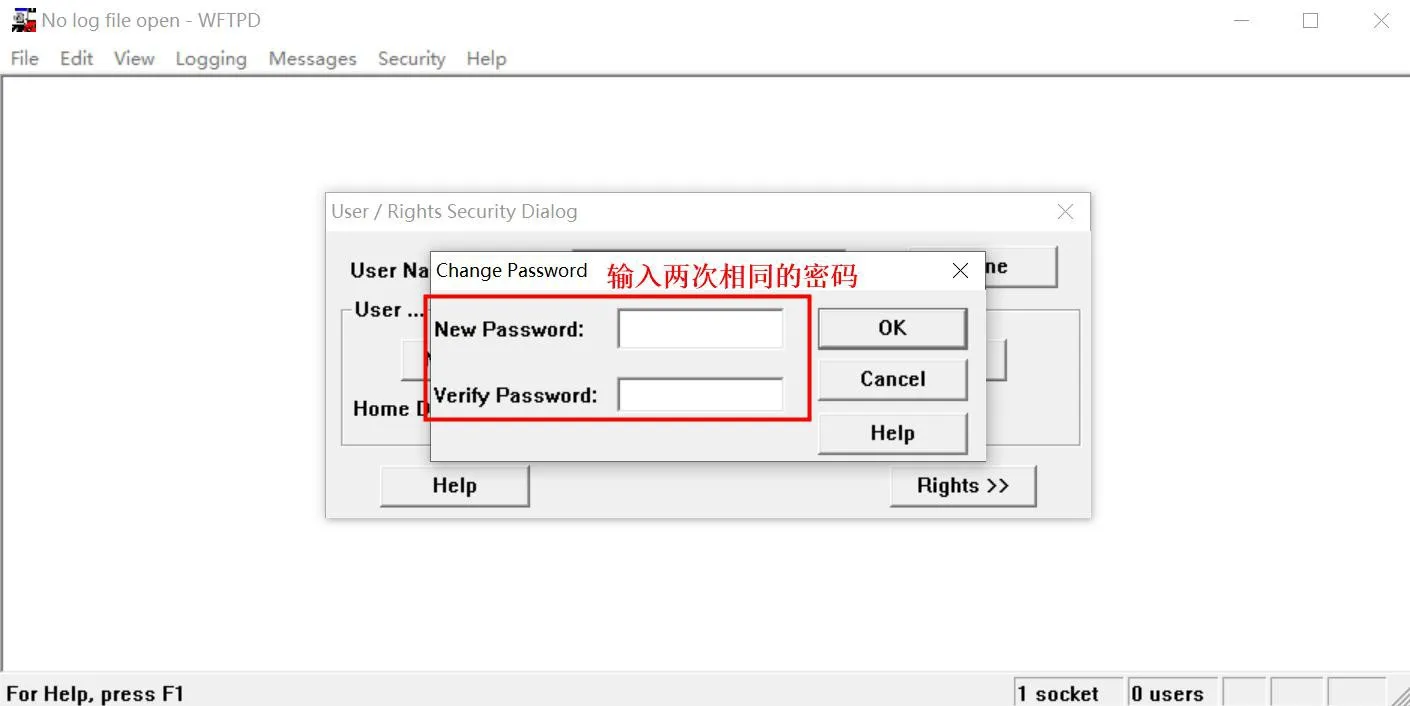

비밀번호 확인

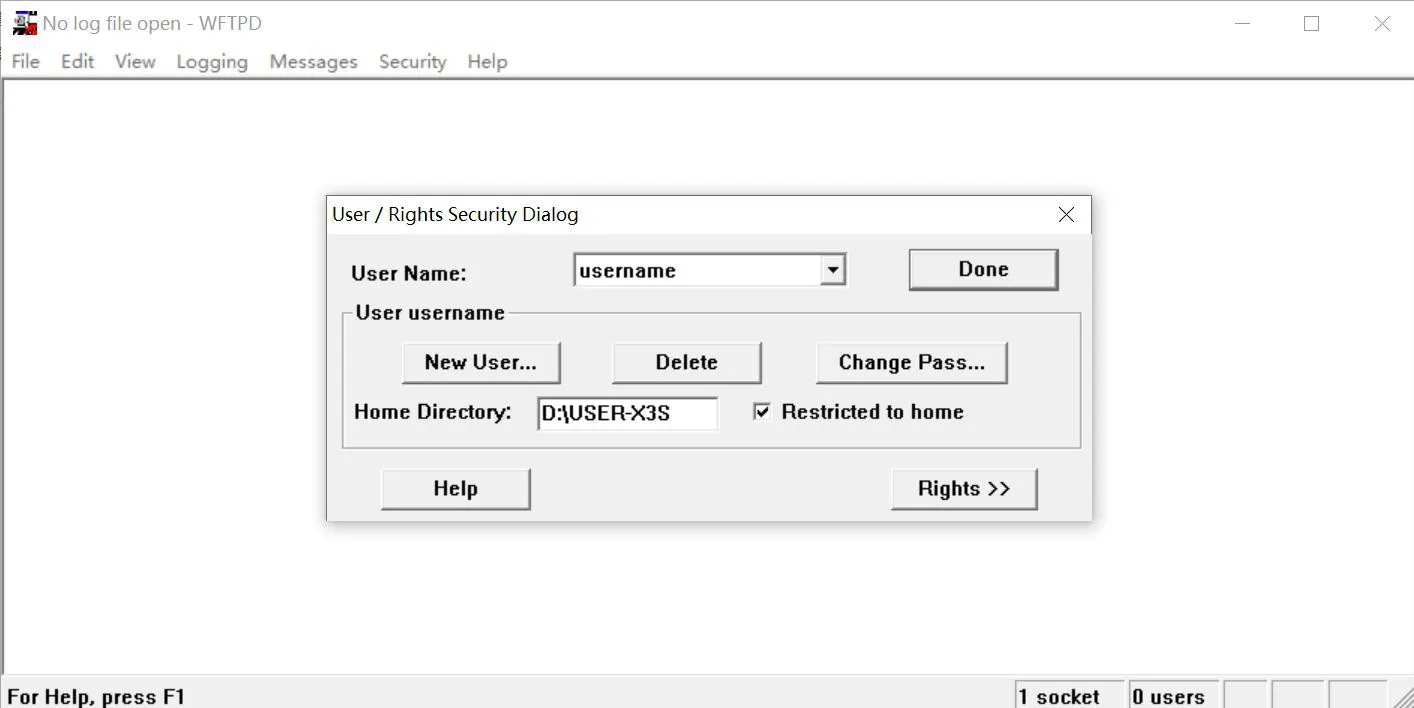

3. 파일 저장 경로를 설정합니다:
Home Directory에 펌웨어 패키지가 저장된 경로를 입력한 다음 Restricted to home을 선택합니다. 설정이 완료되면 아래 그림과 같이 Done을 클릭합니다.
파일 저장 경로 설정

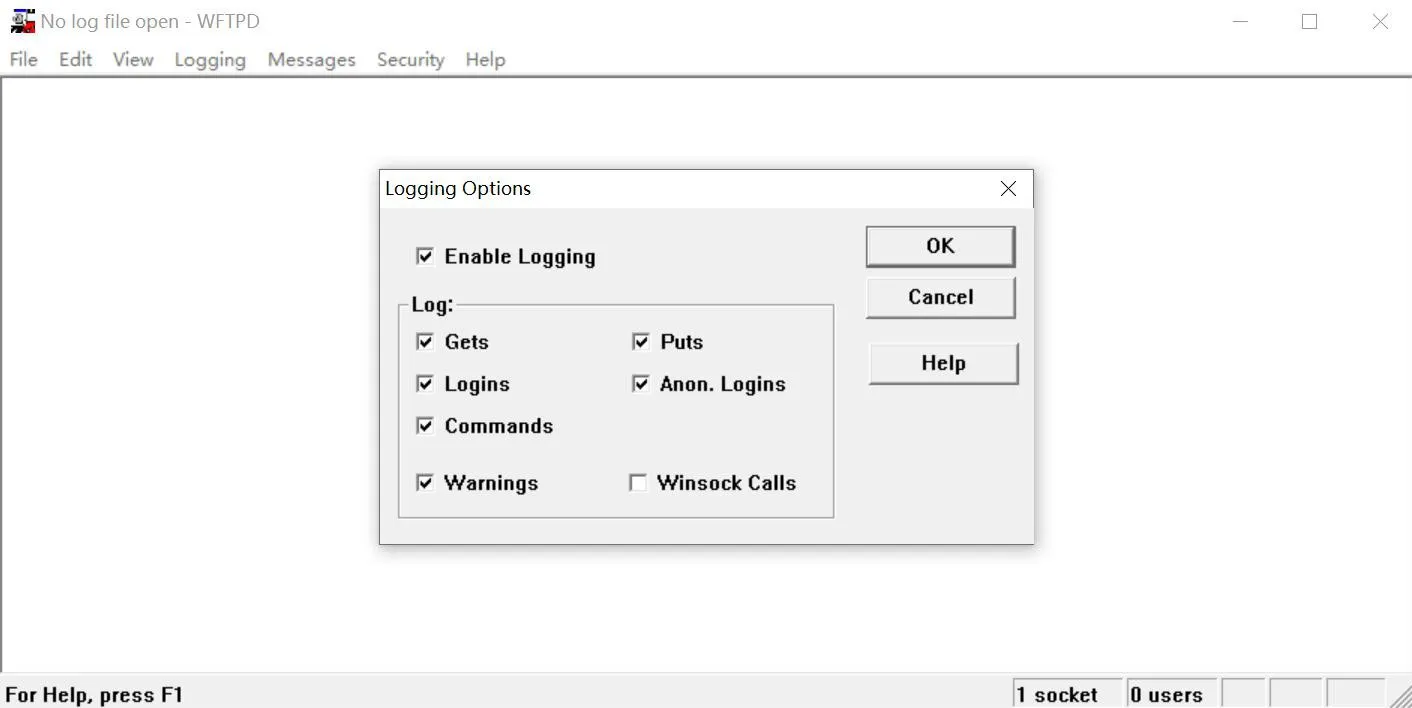

4. 업그레이드 프로세스를 더 쉽게 모니터링할 수 있도록 로그 옵션을 활성화합니다.
로그 옵션 활성화

[참고] POST 펌웨어 업그레이드를 수행하는 동안 FTP 서버를 닫지 마십시오.

PC 구성

1. PC 네트워크 설정을 구성합니다:
IP 주소(I): 192.168.10.99
서브넷 마스크(U): 255.255.255.0
기본 게이트웨이(D): 192.168.10.1
다음 예제는 Windows 10을 기반으로 합니다:

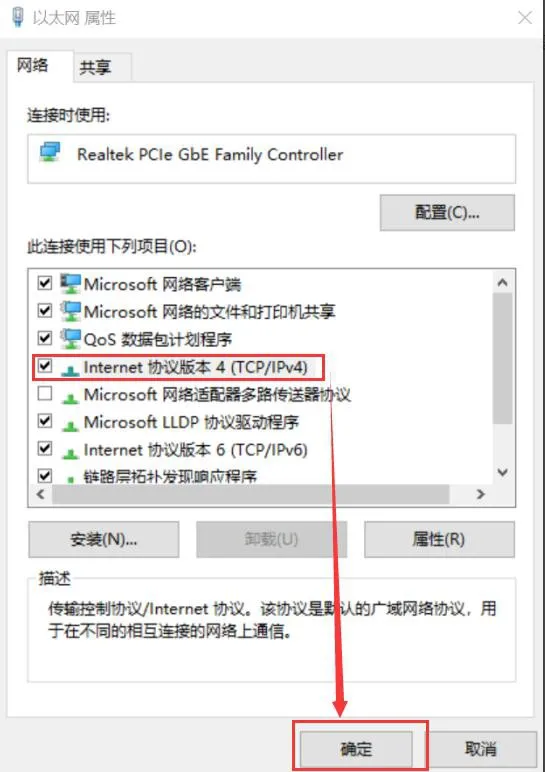

IP 주소 구성

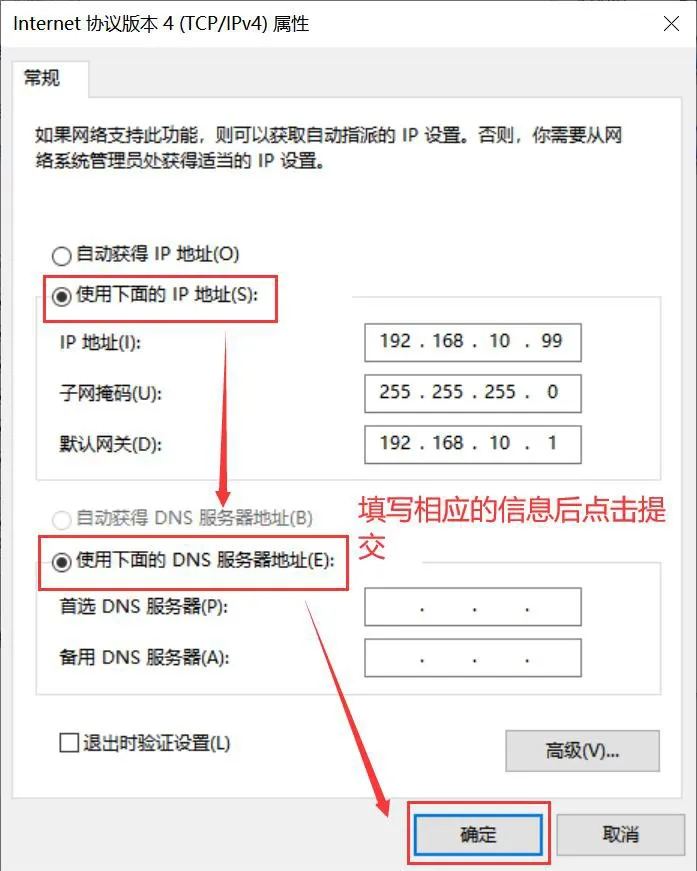

IP 속성 구성

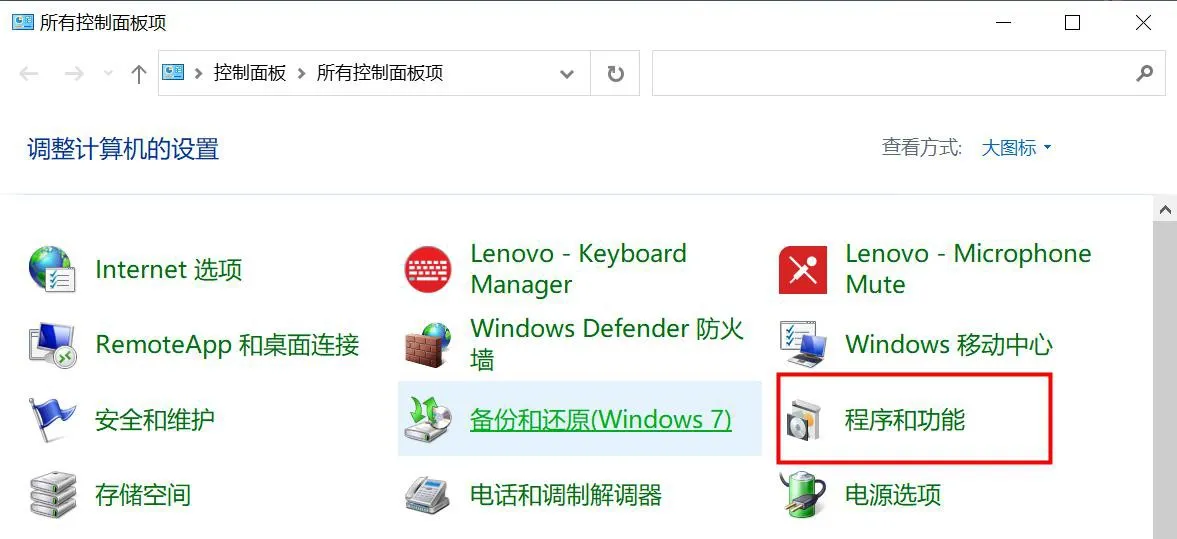

2. PC에서 Telnet 서비스 활성화

먼저 제어판을 열고 프로그램 및 기능 - Windows 기능 켜기/끄기를 클릭한 다음 Telnet 클라이언트를 체크합니다.
PC에서 Telnet 서비스 활성화

전화기 POST 모드에서 펌웨어 업그레이드

전화기를 POST 모드로 전환합니다.
PC의 네트워크 포트를 이더넷 케이블로 전화기의 인터넷 포트에 연결한 다음 전화기를 재부팅합니다. 시작 중에 # 키를 길게 누르면 POST 모드로 들어갑니다. POST 모드에서 전화기의 기본 IP 주소는 192.168.10.1입니다.

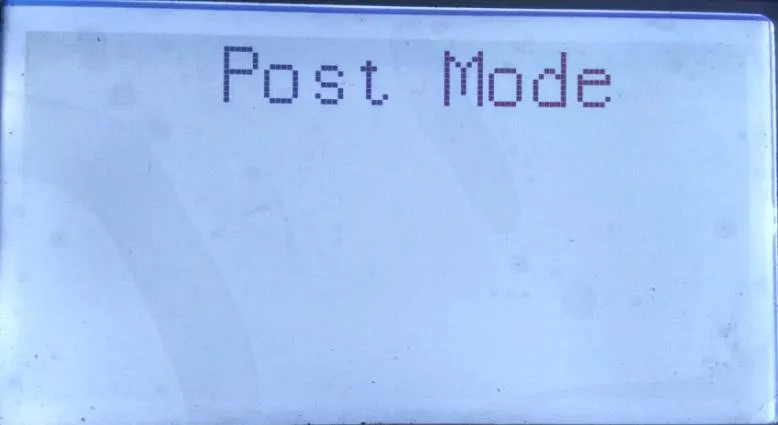

POST 모드의 전화기

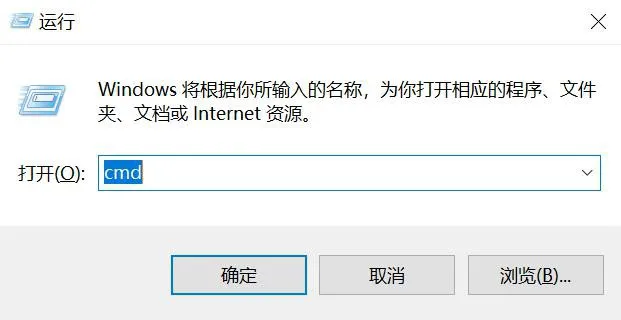

2. PC에서 WIN+R을 눌러 실행 대화 상자를 열고 cmd 창을 실행합니다.

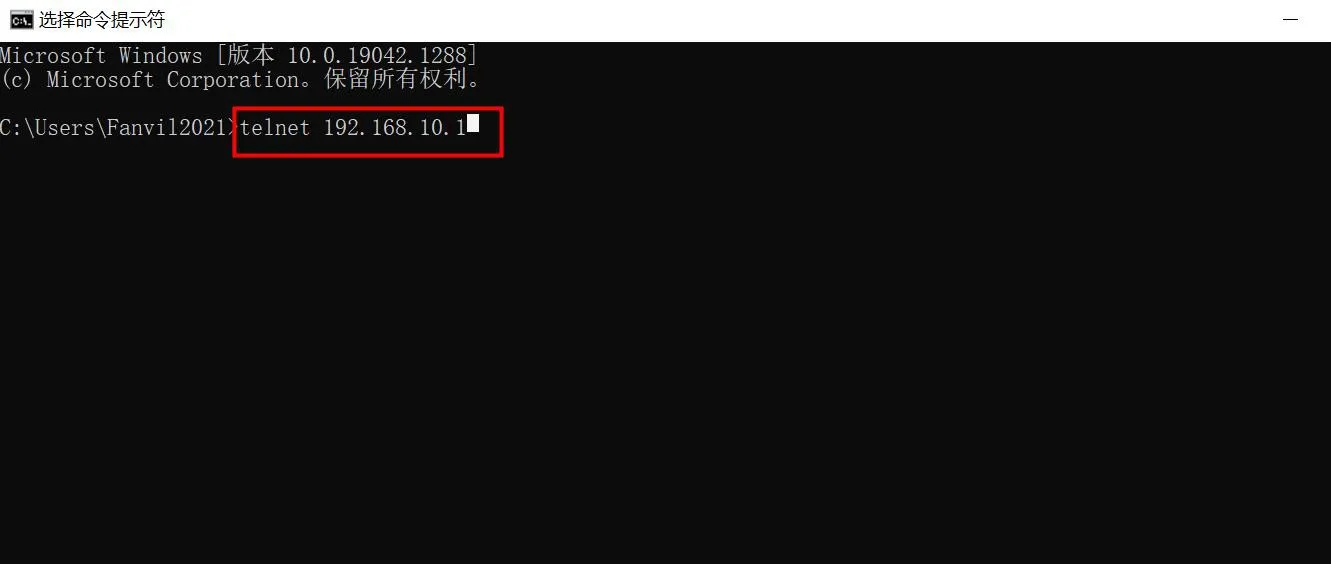

PC에서 cmd 창 열기

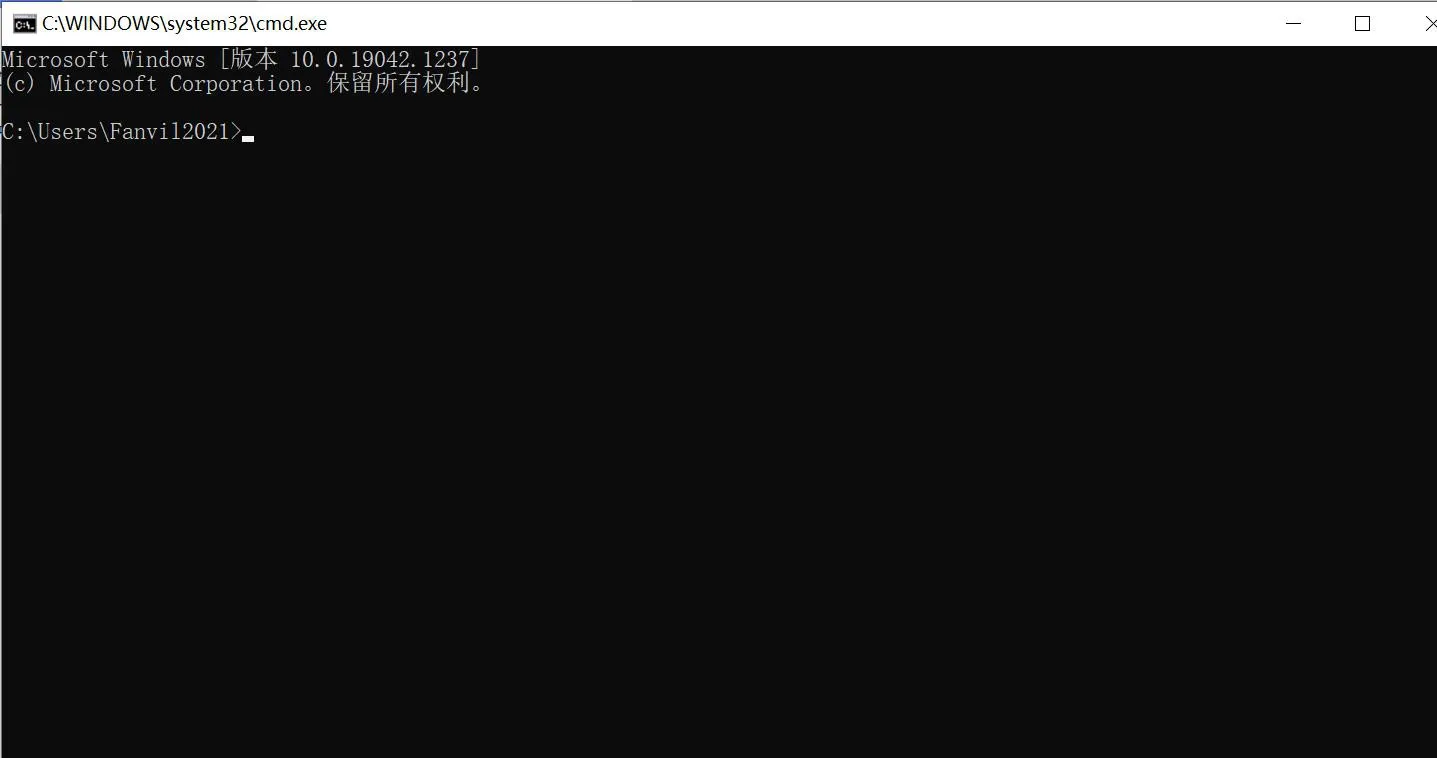

업그레이드 명령 입력

3. 업그레이드 명령을 입력하여 펌웨어 업그레이드를 시작합니다.

업그레이드 시작

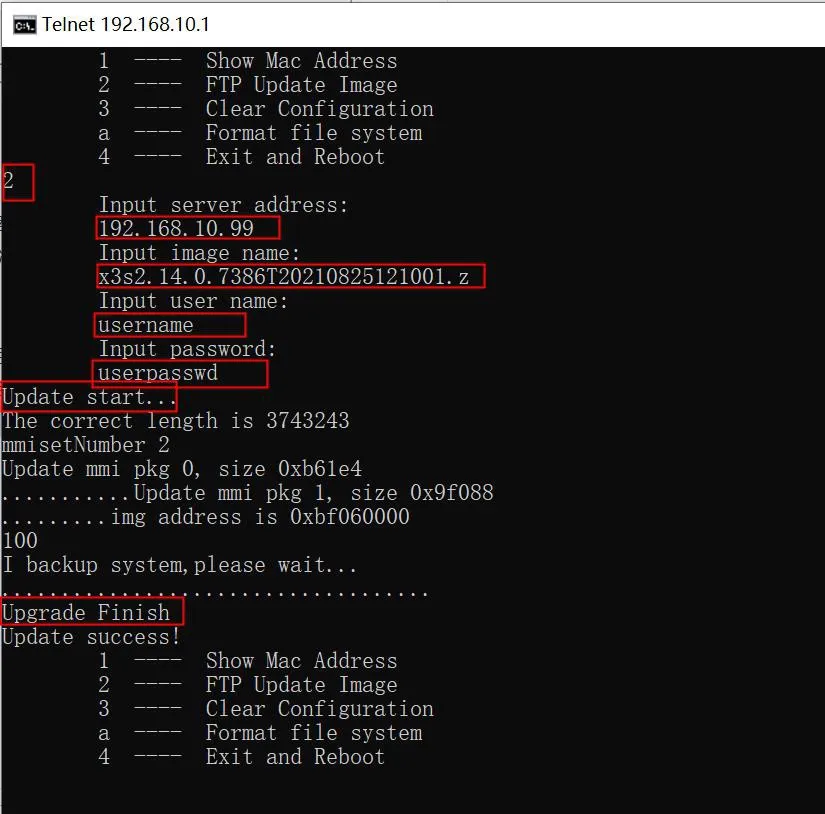

시스템 업그레이드 진행 중

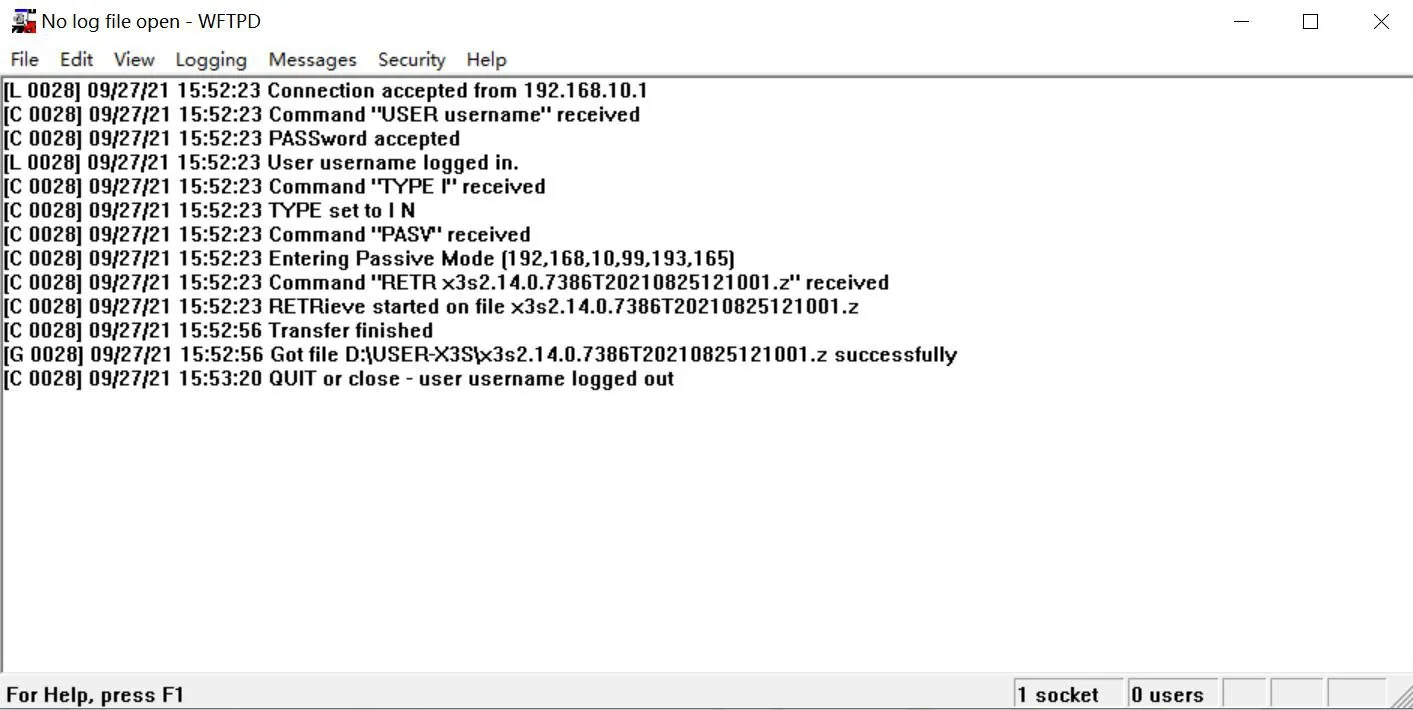

FTP 서버 창에도 관련 다운로드 정보가 표시됩니다:
FTP 서버 창에 다운로드 정보가 표시됨

명령 4를 실행하여 전화기를 재부팅합니다. 그러면 업그레이드가 완료됩니다.
