산업용 SIP 전화 펌웨어를 업그레이드하는 방법? (USB 드라이브 방법)

소개

개요

전화기 버그를 수정하거나 새로운 기능을 추가하기 위해 장치를 최신 펌웨어 버전으로 업그레이드해야 할 수 있습니다.

적용 모델

적용 제품: USB 포트가 있는 전화기
적용 버전: 해당 모델에서 지원하는 모든 펌웨어 버전

필요한 도구

① 스위치에 연결되고 IP 주소를 자동으로 얻을 수 있는 BX4U 전화기 1대.
② 동일한 스위치에 연결되고 전화기에 대한 네트워크 액세스 권한이 있는 구성 PC 1대.

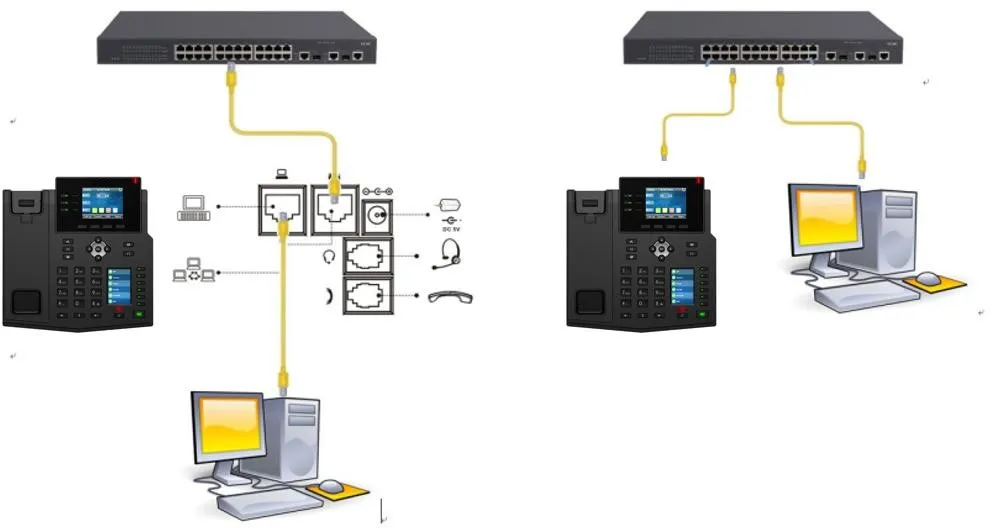

전화기와 PC 연결 다이어그램

전화기와 PC 연결 다이어그램

해결 방법

중급 및 고급 전화기 시리즈

적용 모델: BX4U/BX5U/BX6U/BX7c/BX7/BX210/BX210i
업그레이드 파일 형식: .z 파일
2.1.1 현재 하드웨어 버전을 확인하고 일치하는 펌웨어 다운로드

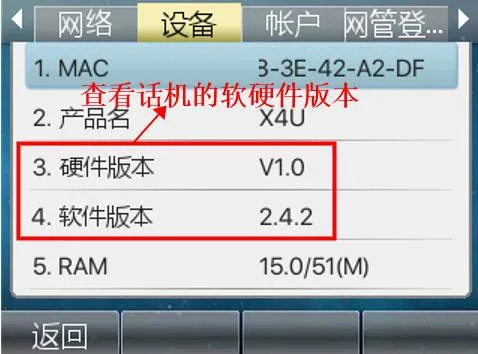

메뉴” -- “상태” -- “장치”를 눌러 전화기 하드웨어 버전을 확인합니다.
전화기 하드웨어 버전 확인
2.1.2 USB 드라이브 준비
펌웨어 패키지를 USB 드라이브에 복사합니다. 업그레이드 패키지는 .z 또는 .zip 형식이어야 합니다. 또한 USB 드라이브는 FAT32로 포맷되어 있어야 합니다.

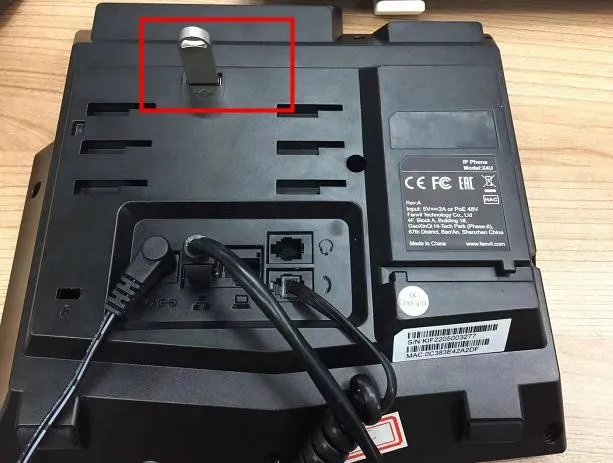

USB 드라이브를 전화기의 USB 포트에 삽입합니다.
USB 드라이브를 전화기에 삽입
2.1.3 POST 모드로 들어가서 업그레이드 시작

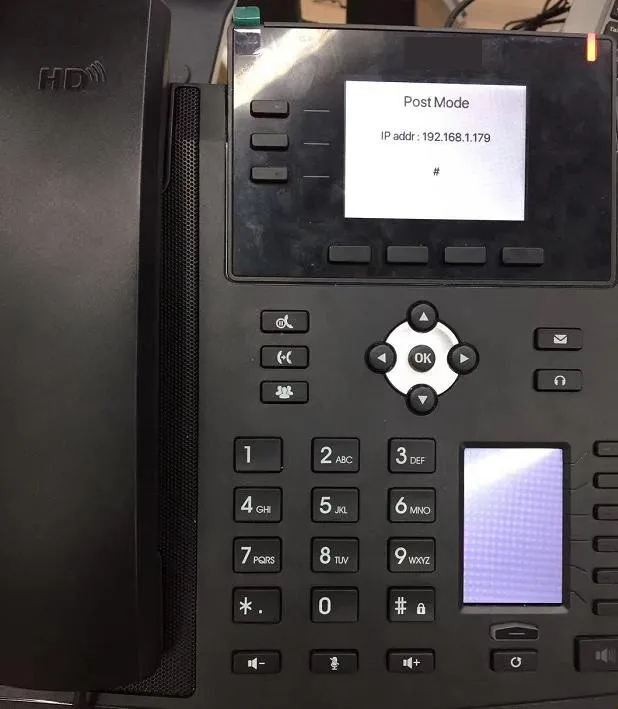

전화기의 전원을 켭니다. 전원 표시등이 3번 깜박이면 화면에 POST가 나타날 때까지 # 키를 계속 누릅니다.
전화기 POST 모드로 들어가기

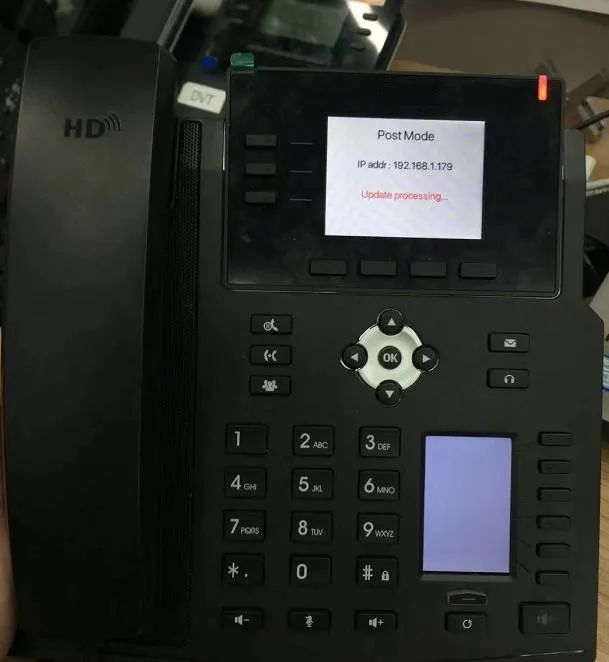

*#167을 입력하면 화면에 업그레이드 프롬프트가 표시됩니다.
POST 모드에서 업그레이드

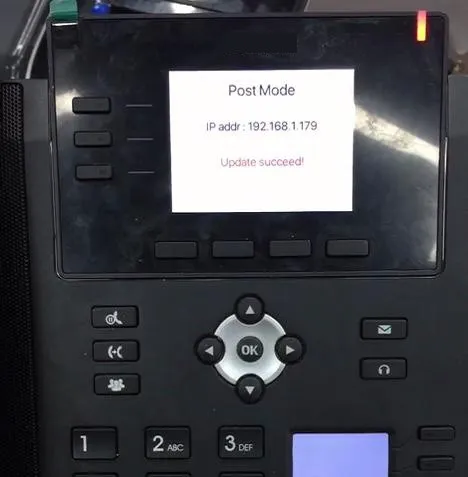

업그레이드가 성공적으로 완료되면 화면에 성공 메시지가 표시됩니다.

업그레이드 완료됨

안드로이드 전화기 시리즈

X7A의 경우 USB 드라이브를 통해 업그레이드할 때 USB 드라이브를 전화기에 연결하기 전에 펌웨어 파일의 이름을 fv_update.zip으로 바꿔야 합니다. 전화기가 자동으로 업그레이드 파일을 감지하고 업그레이드를 요청합니다. 안드로이드 시리즈 전화기의 경우 펌웨어 파일은 .zip 형식이어야 하며 USB 드라이브도 FAT32로 포맷되어 있어야 합니다.

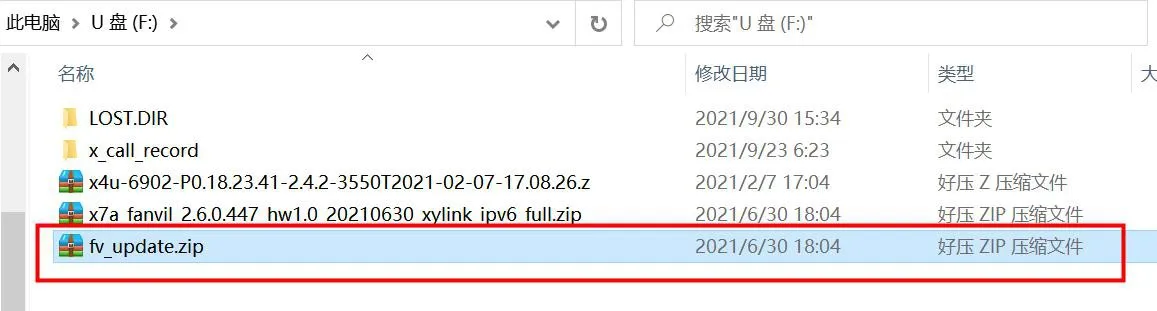

2.2.1 펌웨어 파일을 USB 드라이브에 다운로드하고 fv_update.zip으로 이름 바꾸기
펌웨어 파일을 USB 드라이브에 다운로드

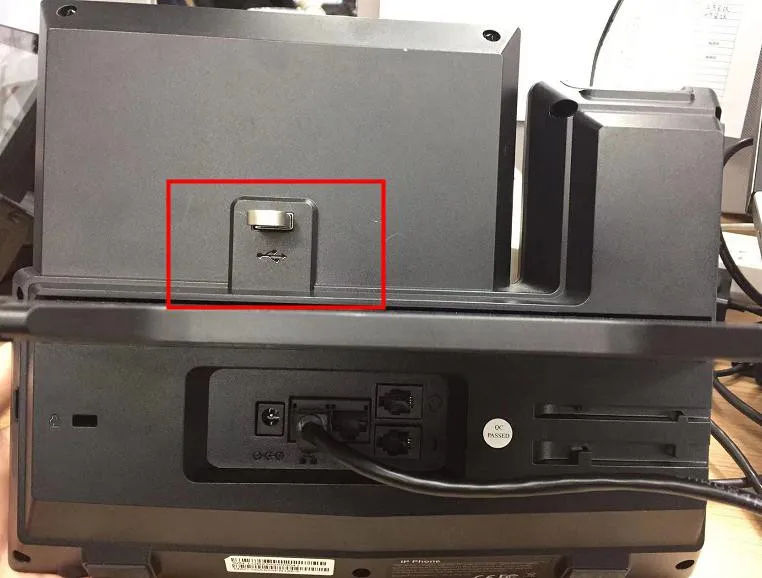

2.2.2 USB 드라이브를 전화기 USB 포트에 삽입
USB 드라이브 삽입

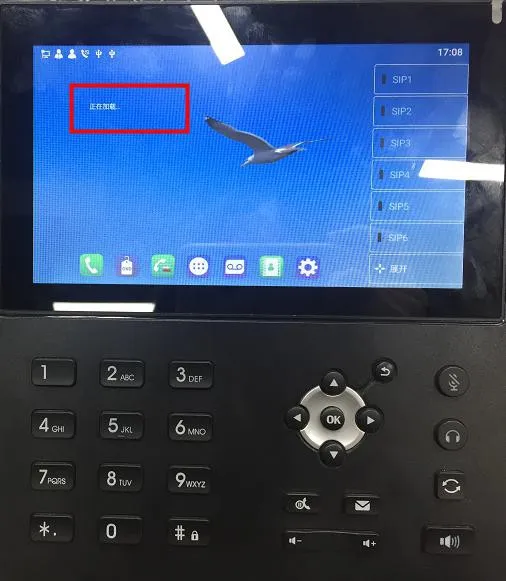

2.2.3 USB 드라이브를 삽입하면 전화기가 자동으로 업그레이드 파일을 감지하고 “로딩 중”을 표시합니다
업그레이드 파일 로딩 중

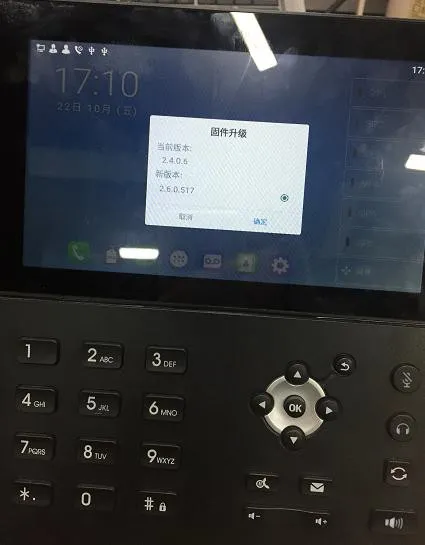

2.2.4 전화기가 업그레이드 파일을 감지하고 업그레이드를 요청합니다

업그레이드 프롬프트 표시

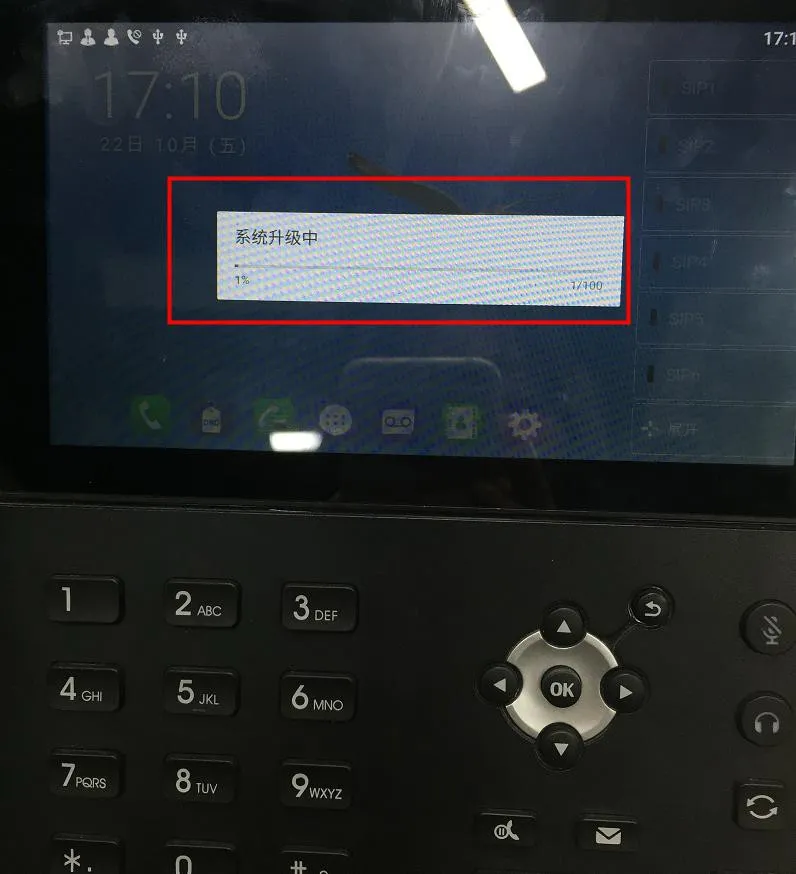

2.2.5 전화기가 업그레이드를 시작합니다
전화기 업그레이드 시작

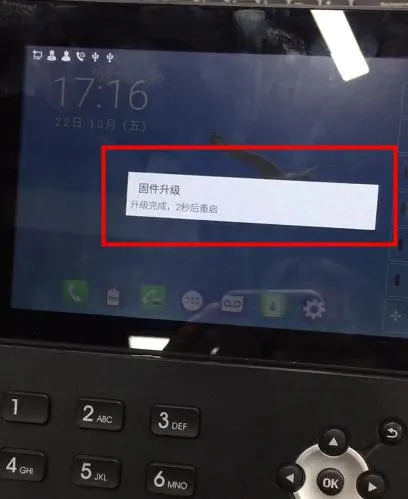

2.2.6 전화기에 업그레이드 완료 메시지가 표시됩니다
업그레이드 완료 메시지

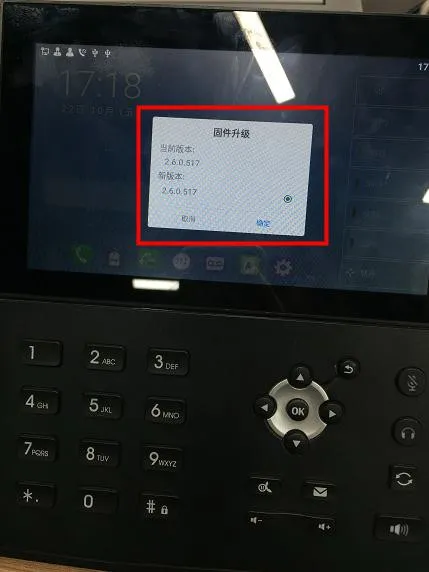

2.2.7 재부팅 후 현재 버전이 대상 업그레이드 버전과 일치합니다. 이는 업그레이드가 적용되었음을 의미합니다
재부팅 후 현재 버전 확인
