본 문서는 BHP-SOS10 시리즈 기기의 POST 모드를 통한 공장 초기화 및 펌웨어 업그레이드 작업에 적용됩니다.

적용 모델

BHP-SOS10, BHP-SOS10V, BHP-SOS10D, BHP-SOS16, BHP-SOS16V.

사전 준비 도구

① BHP-SOS10 시리즈 기기 1대, PoE 스위치 1개 (또는 DC 전원 공급 장치). 기기를 스위치에 연결하여 IP 주소를 자동으로 획득합니다.
② 디버깅용 PC 1대를 동일한 스위치에 연결하여 PC와 기기 간 네트워크 연결을 확인합니다.

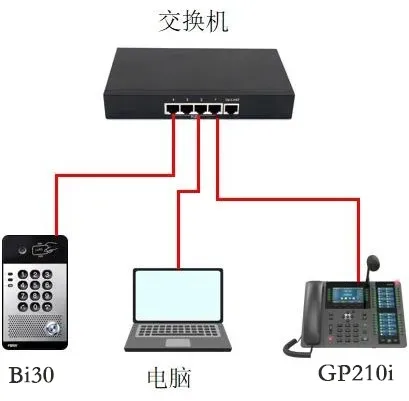

기기 연결 다이어그램

기기 연결 다이어그램

BHP-SOS10 시리즈 POST 모드 공장 초기화 및 업그레이드

POST 모드 진입 방법

(1) BHP-SOS10 기기의 전원을 끄고 다시 켭니다. 부팅 중 DSS 키 표시등이 빠르게 깜빡일 때 DSS 키를 한 번 짧게 누르면 POST 모드로 진입합니다. 타이밍을 알 수 없을 경우 부팅 중 표시등이 느리게 깜빡일 때까지 DSS 키를 길게 누릅니다.
(2) 기기가 POST 모드에 정상적으로 진입하면 DSS 키 표시등이 빠른 깜빡임에서 느린 깜빡임으로 변경됩니다.
(3) BHP-SOS10D 기기는 첫 번째 DSS 키에서 위 작업을 수행하십시오.

POST 모드 업그레이드 방법

(1) 기기와 PC를 동일한 스위치에 연결합니다.
(2) 기기를 POST 모드로 전환합니다.
(3) PC에 192.168.1.xxx IP 주소를 설정합니다.

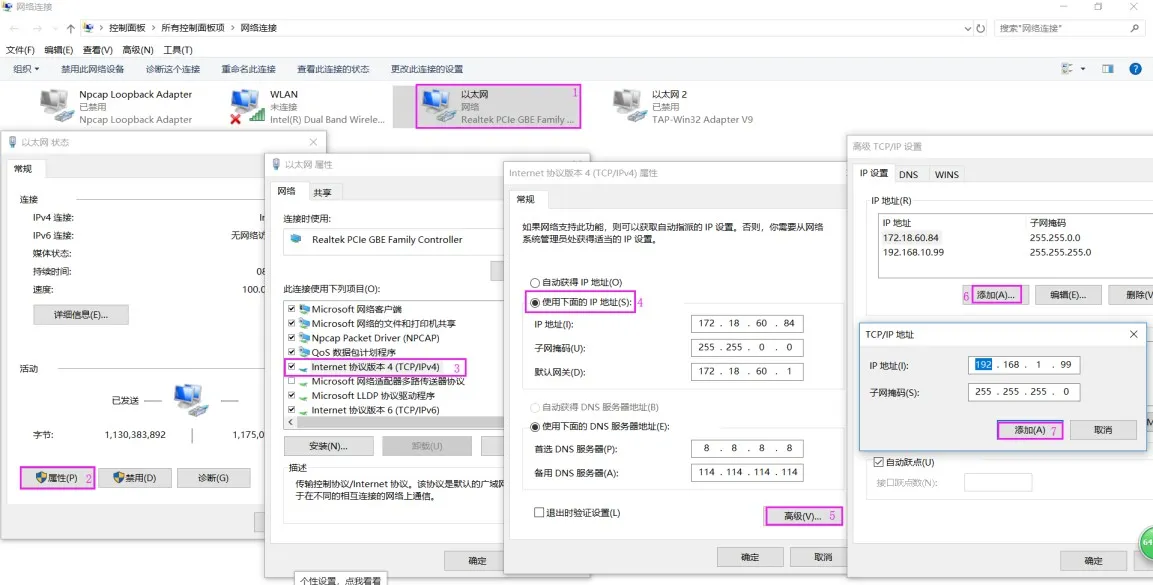

PC의 네트워크 설정으로 이동하여 고정 IP를 설정하고, 올바른 서브넷 마스크로 192.168.1.xxx를 추가합니다. (PC가 이미 192.168.1.xxx 서브넷에 속해 있는 경우 이 단계를 건너뛰십시오.)
PC에 192.168.1.xxx IP 주소 추가(4) 업그레이드 페이지 접속: 브라우저를 열고 http://192.168.1.179:8080/ 을 입력하여 업그레이드 인터페이스를 엽니다.

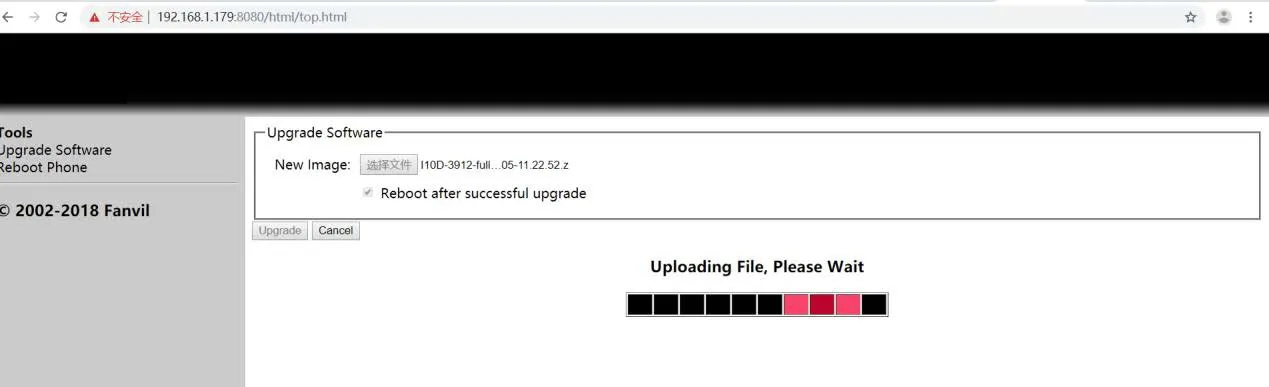

기기 업그레이드 인터페이스(5) 업그레이드 시작: "파일 선택"을 클릭하고 펌웨어를 선택한 후 "업그레이드"를 클릭합니다. 기기가 펌웨어를 자동으로 업로드 및 업데이트한 후 자동으로 재부팅됩니다.
주의사항:1. 업그레이드 중 전원 및 네트워크를 차단하지 마십시오. 2. i10/i10D/i10V는 서로 다른 펌웨어를 사용합니다. 3. 펌웨어 다운로드 주소:http://www.fanvil.com/Support/download.html
펌웨어 업그레이드 실행

POST 모드 공장 초기화 방법

(1) 기기와 PC를 동일한 스위치에 연결합니다.
(2) 기기를 POST 모드로 전환합니다.
(3) 공장 초기화를 실행합니다.
POST 모드 상태에서 DSS 키를 연속으로 3회 빠르게 짧게 누르면 기기가 공장 초기화되고 자동으로 재부팅됩니다. i10D 기기는 첫 번째 DSS 키를 사용하여 조작하십시오.
(참고: DSS 키를 2초 길게 누르면 POST 모드를 종료하고 재부팅합니다. i10D 기기는 첫 번째 DSS 키를 사용하십시오.)
