인터콤을 앰프 또는 전동 스피커에 연결하는 방법은 무엇입니까?

소개

개요

일부 애플리케이션 환경에서는 인터폰의 내장 스피커 볼륨이 현장에 충분하지 않을 수 있습니다. 이러한 경우 외부 앰프 또는 전원이 공급되는 스피커를 추가할 수 있습니다. 배선 지점은 모델에 따라 다르므로 이 가이드는 다양한 인터폰 장치를 외부 앰프 또는 전원 공급 스피커에 연결하는 방법을 설명합니다.

지원 모델

Bi12, BHP-S0S16, BHP-S0S16V, BK-DAB-PA2, BK-DAB-PA2S, BK-DAB-PA3, BHP-SOS10, BHP-SOS10V, BHP-SOS10SD, BHP-SOS11V, BHP-SOS11V2

필요한 장치 및 도구

1. Becke 인터폰 장치 하나(이 문서에서는 BHP-S0S16V를 예로 사용), PoE 스위치 또는 DC 전원 공급 장치 하나, 전원 공급 스피커 하나. 장치를 스위치에 연결합니다.

2. 설정 및 테스트용 PC 하나. PC를 동일한 스위치에 연결하고 PC와 장치가 네트워크를 통해 통신할 수 있는지 확인합니다.

장치 및 PC 연결 다이어그램

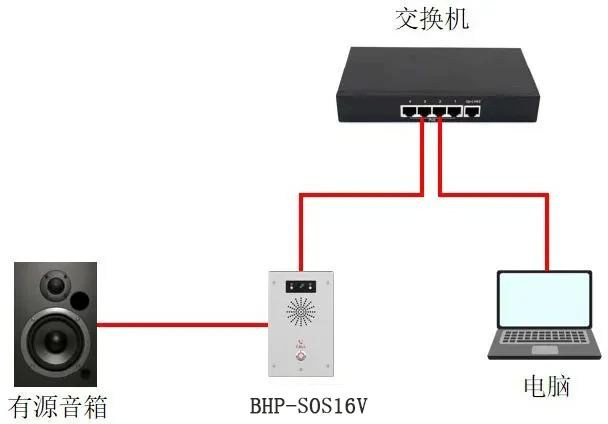

BHP-S0S16V를 스위치에 연결하고 PC를 동일한 스위치에 연결합니다. PC와 장치 간의 네트워크가 연결 가능한지 확인합니다. 일반적인 연결 예는 그림 1에 나와 있습니다.

장치 및 PC 연결 다이어그램

                                       그림 1. 장치 및 PC 연결 다이어그램

인터폰 연결 방법

인터폰 모델에 따라 외부 전원 공급 스피커에 대해 서로 다른 배선 지점을 사용합니다. 다음 섹션에서는 각 모델 그룹에 대한 연결 방법을 설명합니다.

Bi12를 전원 공급 스피커에 연결

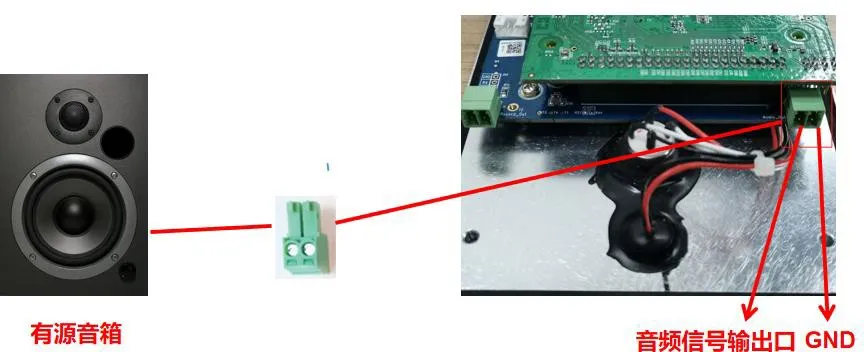

Bi12의 경우 Audio_out 인터페이스를 사용하여 전원 공급 스피커를 연결합니다(그림 2 참조). 왼쪽 단자는 오디오 신호 출력이며, 단자대를 통해 전원 공급 스피커의 오디오 입력선에 연결해야 합니다. 오른쪽 단자는 GND이며, 전원 공급 스피커의 공통 접지 단자에 연결해야 합니다.

Bi12를 전원 공급 스피커에 연결

                                                                                                  그림 2. Bi12를 전원 공급 스피커에 연결

BHP-S0S16V를 전원 공급 스피커에 연결

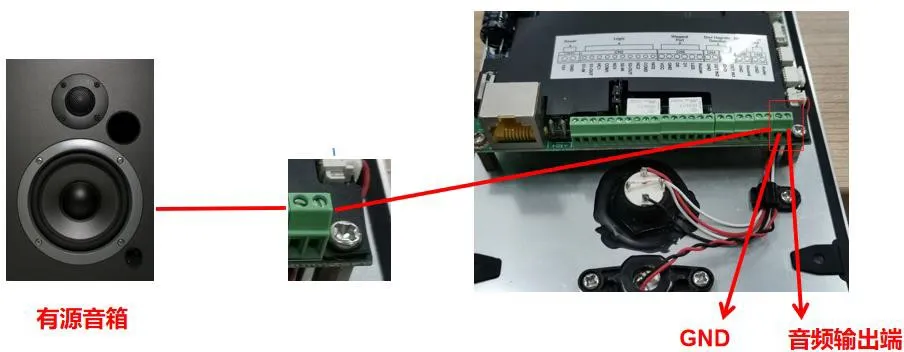

BHP-S0S16V의 경우 Line out 인터페이스를 사용하여 전원 공급 스피커를 연결합니다(그림 3 참조). 오른쪽 단자는 오디오 출력이며 전원 공급 스피커의 오디오 입력선에 연결해야 합니다. 왼쪽 단자는 GND이며 전원 공급 스피커의 공통 접지 단자에 연결해야 합니다.

BHP-S0S16V 전원 공급 스피커 배선 참조

                                                                                              그림 3. BHP-S0S16V 전원 공급 스피커 배선 참조

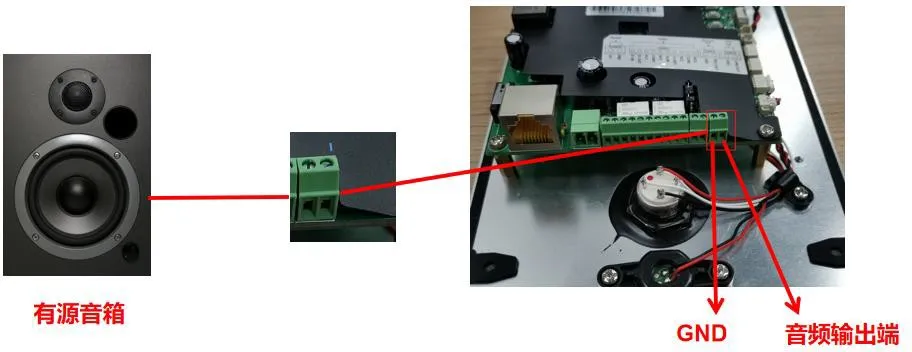

추가 BHP-S0S16V 배선 참조는 그림 4에 나와 있습니다.

BHP-S0S16V 전원 공급 스피커 추가 배선 참조

                                                                                      그림 4. BHP-S0S16V 전원 공급 스피커 추가 배선 참조

BHP-SOS10, BHP-SOS10V, BHP-SOS10SD, BHP-SOS11V 및 BHP-SOS11V2를 전원 공급 스피커에 연결

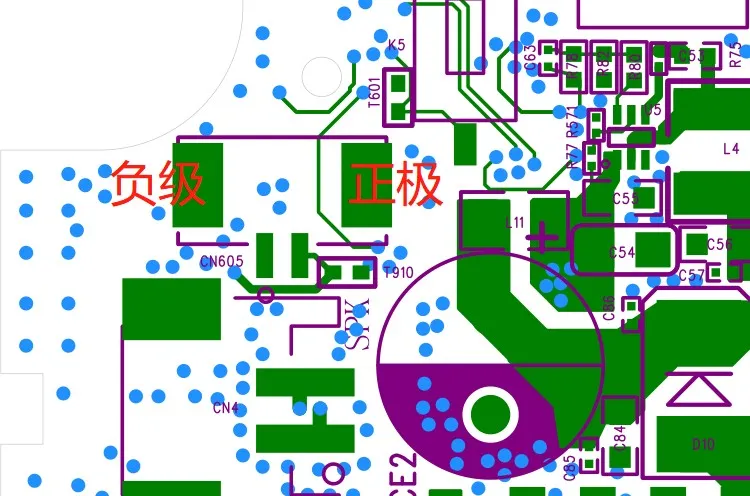

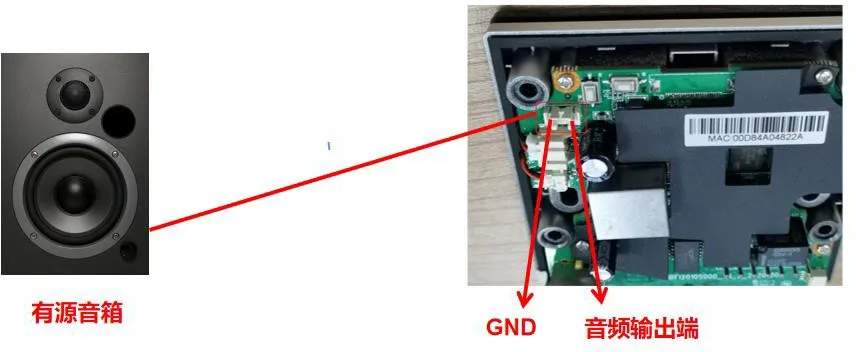

BHP-SOS10, BHP-SOS10V, BHP-SOS10SD, BHP-SOS11V, BHP-SOS11V2 시리즈의 경우 전원 공급 스피커 배선 위치는 그림 5에 나와 있습니다. 여기서는 i10SV를 예로 사용합니다. 오른쪽 단자는 오디오 출력이며 전원 공급 스피커의 오디오 입력선에 연결해야 합니다. 왼쪽 단자는 GND이며 전원 공급 스피커의 공통 접지 단자에 연결해야 합니다. 그림 6은 근접 배선 참조로도 사용할 수 있습니다.

i10SV를 전원 공급 스피커에 연결

                                                                         그림 5. i10SV를 전원 공급 스피커에 연결

BHP-SOS10V 오디오 출력 포트 근접 뷰

                                                                            그림 6. BHP-SOS10V 오디오 출력 포트 근접 뷰

BK-DAB-PA2를 전원 공급 스피커에 연결

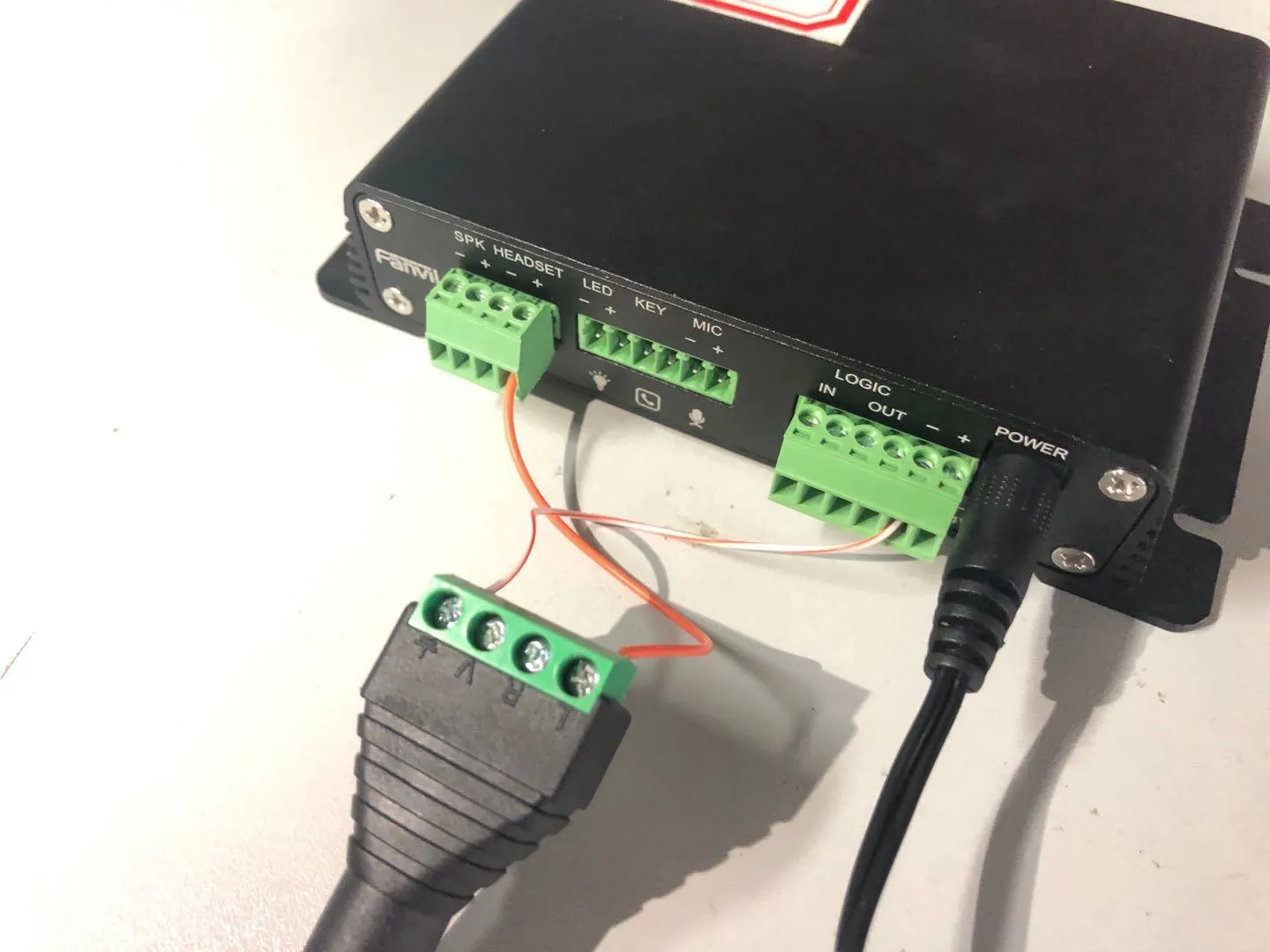

BK-DAB-PA2의 경우 전원 공급 스피커 배선 위치는 그림 7에 나와 있습니다. HEADSET 인터페이스가 스피커 오디오 신호 출력으로 사용됩니다.

HEADSET 출력은 차동(differential) 방식입니다. 연결된 장치가 차동 입력을 사용하는 경우 HEADSET+, HEADSET- 및 전원 GND (POWER-)를 연결하십시오. 연결된 장치가 싱글 엔디드(single-ended) 입력을 사용하는 경우 HEADSET+ 및 전원 GND (POWER-)를 연결하십시오.

BK-DAB-PA2를 전원 공급 스피커에 연결

                                                                                                              그림 7. BK-DAB-PA2를 전원 공급 스피커에 연결

BK-DAB-PA2S를 전원 공급 스피커에 연결

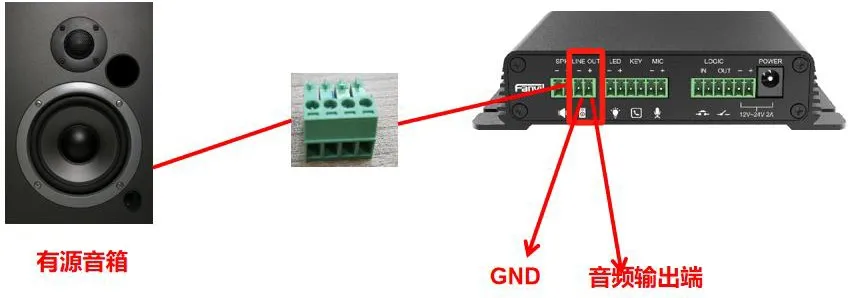

BK-DAB-PA2S의 경우 Line out 인터페이스를 사용하여 전원 공급 스피커를 연결합니다(그림 8 참조). 오른쪽 단자는 오디오 신호 출력이며 단자대를 통해 전원 공급 스피커의 오디오 입력선에 연결해야 합니다. 왼쪽 단자는 GND이며 전원 공급 스피커의 공통 접지 단자에 연결해야 합니다.

BK-DAB-PA2S를 전원 공급 스피커에 연결

                                                                                                      그림 8. BK-DAB-PA2S를 전원 공급 스피커에 연결

BK-DAB-PA3를 전원 공급 스피커에 연결

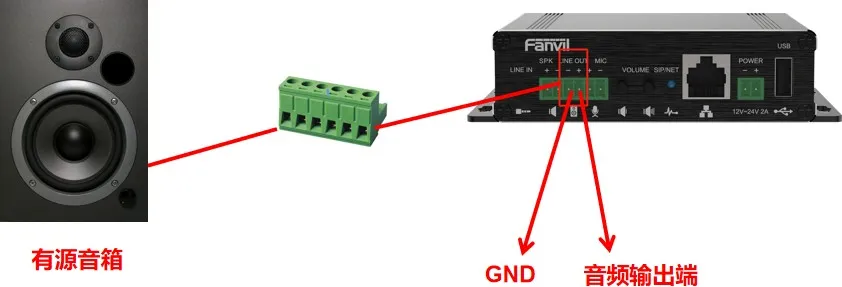

BK-DAB-PA3의 경우 Line out 인터페이스를 사용하여 전원 공급 스피커를 연결합니다(그림 9 참조). 오디오 신호 출력은 단자대를 통해 전원 공급 스피커의 오디오 입력선에 연결해야 하며, GND는 전원 공급 스피커의 공통 접지 단자에 연결해야 합니다.

BK-DAB-PA3를 전원 공급 스피커에 연결

                                                                                                  그림 9. BK-DAB-PA3를 전원 공급 스피커에 연결
