카메라를 BK-DAB-PA2S SIP 게이트웨이에 연결하는 방법?

소개

개요

BK-DAB-PA2S SIP 게이트웨이는 카메라와 함께 작동하여 화상 통화 및 기타 시각적 통신 기능을 지원할 수 있습니다. 설치 방법에 따라 카메라는 로컬 모드 또는 외부 모드로 연결할 수 있습니다. 이 문서에서는 두 옵션 모두에 대한 하드웨어 연결 및 웹 구성을 완료하는 방법을 설명합니다.

적용 모델

BK-DAB-PA2S SIP 게이트웨이

필요한 장비

① BK-DAB-PA2S SIP 게이트웨이 1대, PoE 스위치 1대(또는 DC 전원 공급 장치), Hikvision 카메라 1대. 장치를 동일한 스위치에 연결합니다.
② 동일한 스위치에 연결된 구성 PC 1대, PC와 장치 간의 네트워크 통신을 보장합니다.
③ 터미널에 연결된 BK-DAB-PA2S-KIT 1대.

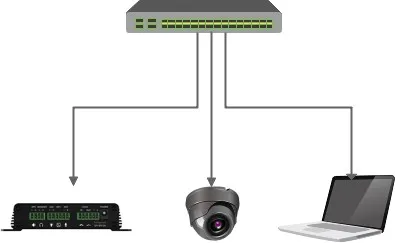

장치 및 PC 연결 다이어그램

장치를 스위치에 연결하고 PC를 동일한 스위치에 연결하여 PC와 장치가 동일한 네트워크를 통해 통신할 수 있도록 합니다. 그림 1을 참조하십시오.
장치 및 PC 연결 다이어그램
                                         그림 1

BK-DAB-PA2S SIP 게이트웨이에 카메라 연결

로컬 카메라 연결

BK-DAB-PA2S-KIT를 장치에 연결

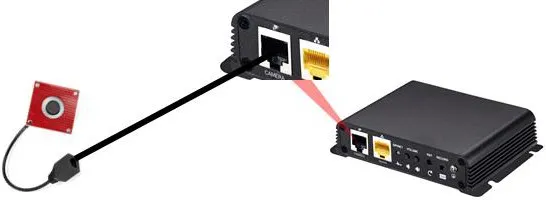

이더넷 케이블을 사용하여 BK-DAB-PA2S-KIT를 PA2 SIP 게이트웨이의 CAMERA 포트에 연결합니다. 그림 2에 나와 있습니다.
로컬 카메라 연결 다이어그램
                                                                                                                                                                    그림 2

카메라를 로컬 모드로 설정
① 장치 IP 주소를 얻은 후 웹 인터페이스에 로그인하여 인터콤 설정 - 비디오 설정으로 이동합니다. 카메라 연결 유형을 로컬로 변경합니다. 장치가 자동으로 재부팅됩니다.

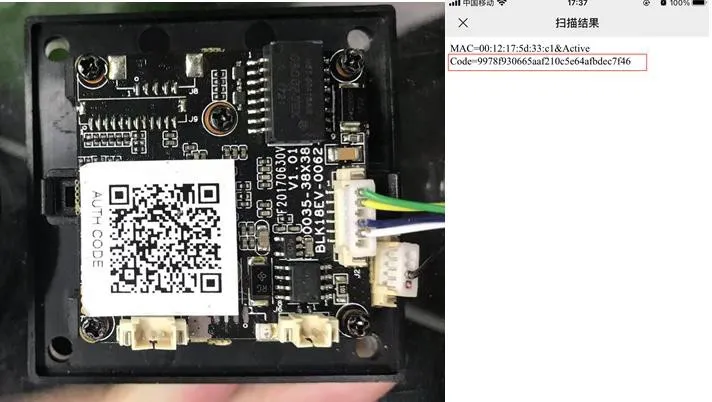

② BK-DAB-PA2S SIP 게이트웨이 뒷면에 QR 코드가 있습니다. WeChat으로 스캔하여 인증 코드를 얻습니다. 그림 3에 나와 있습니다.
인터콤 설정 - 비디오 설정 페이지에서 인증 설정에 인증 코드를 입력합니다. 구성 예는 그림 4를 참조하십시오.
QR 코드 인증
                                                                                                                                                               그림 3

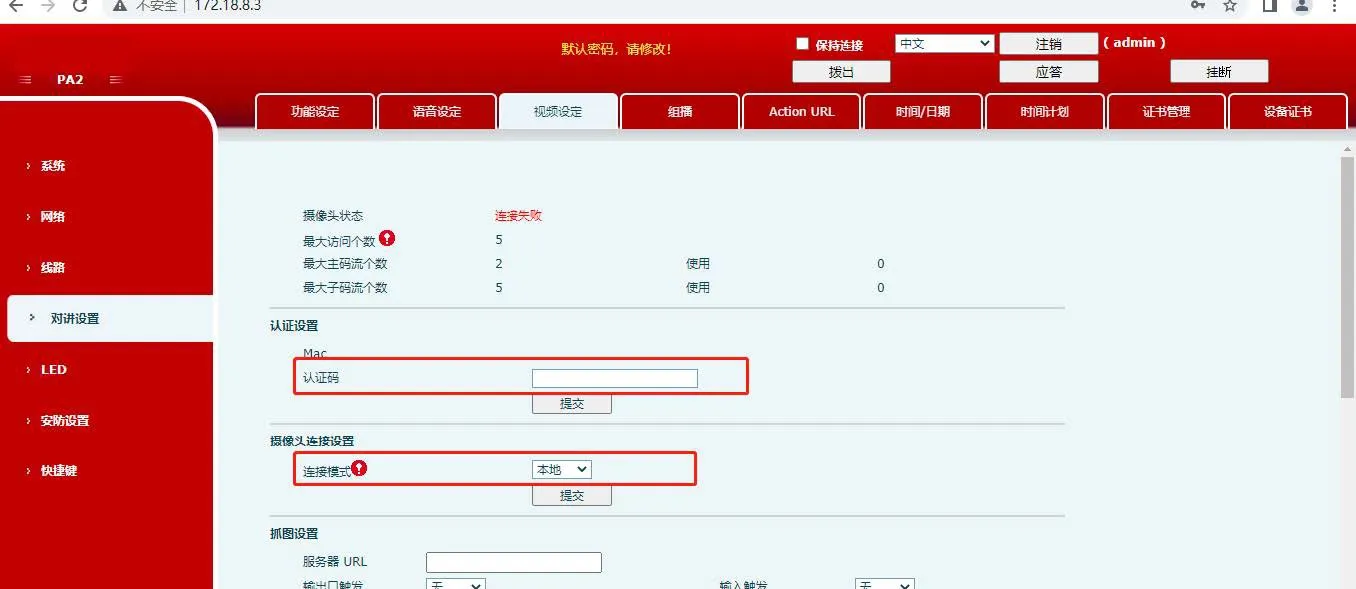

인증 설정 페이지
                                                                                                                                                               그림 4

외부 카메라 연결

① 장치 IP 주소를 얻은 후 웹 인터페이스에 로그인하여 인터콤 설정 - 비디오 설정을 엽니다. 카메라 연결 유형을 외부로 변경합니다. 장치가 자동으로 재부팅됩니다.

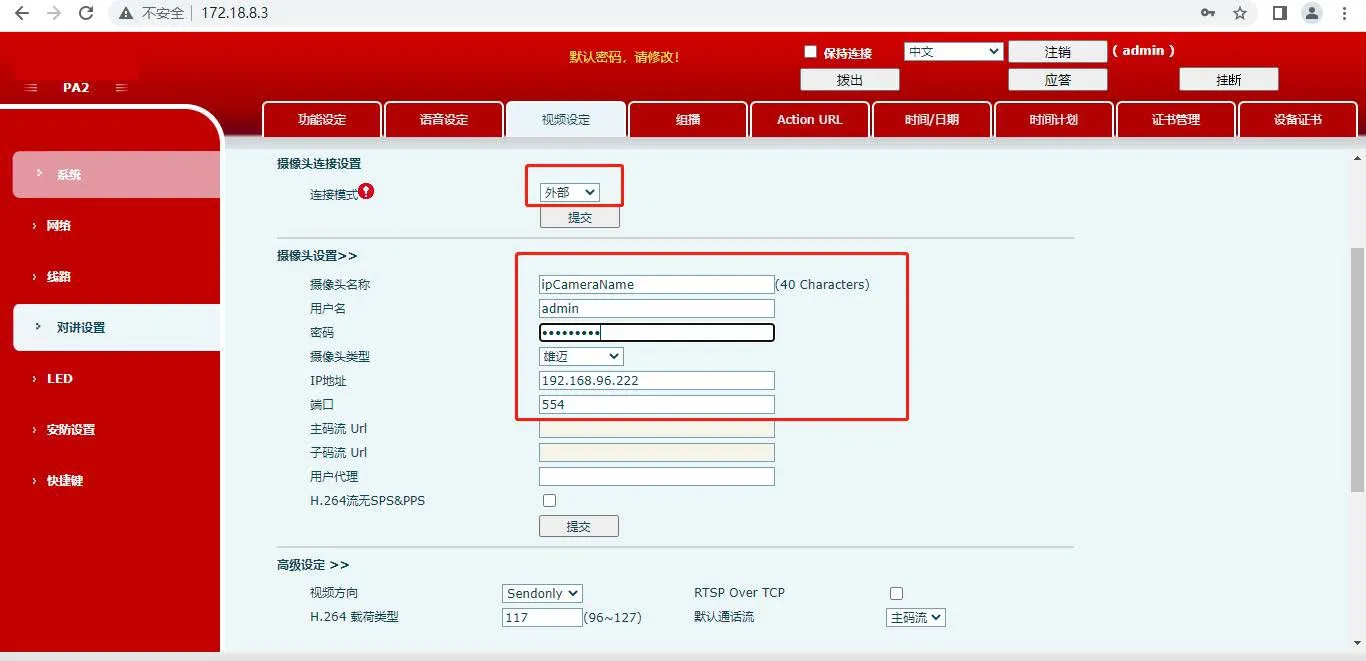

② 재부팅 후 인터콤 설정 - 비디오 설정으로 돌아가 외부 카메라 세부 정보(IP 주소, 사용자 이름, 비밀번호, 포트 번호, 카메라 브랜드)를 입력합니다.
구성 예는 그림 5에 나와 있습니다.
외부 카메라 연결 설정 페이지
