산업용 SIP 전화에서 비디오 링크를 구성하는 방법은 무엇입니까?

소개

개요

본 가이드는 영상 전화기가 통화 중 카메라를 호출하여 영상 연동 기능을 활성화하는 방법을 설명합니다.

대상 사용자

본 문서는 영상 연동 기능 사용이 필요한 사용자를 대상으로 합니다.

지원 모델

지원 모델 : BX3V/BX6U/BX210/BX210i/BX7C/BX7/BX7A/BF600S 지원 버전 : 해당 모델에서 지원하는 모든 버전

필수 도구

1、스위치에 연결되어 IP 주소를 자동으로 할당받는 BX6U 영상 전화기 1대.
2、동일 스위치에 연결되고 전화기와 네트워크 통신이 가능한 설정용 PC 1대.

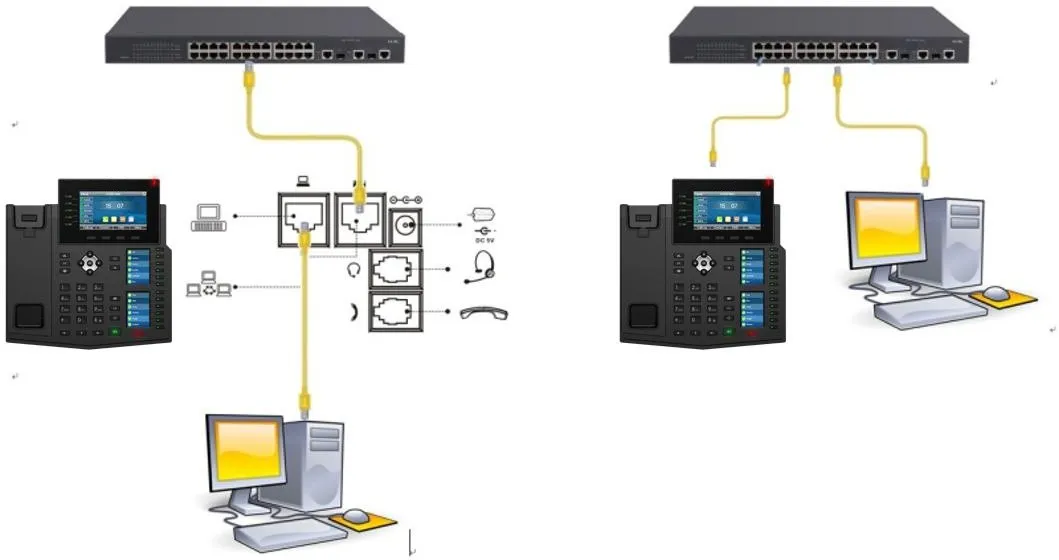

전화기 및 PC 연결 다이어그램

해결 방안

본 예시에서는 하이크비전 카메라를 사용합니다.

RTSP URL 확인

BX6U/BX7/BX7C/BX210/BX210i 최대 480P 해상도 지원으로 IP 카메라 보조 스트림 사용 : rtsp://admin:Fangwei123@172.18.8.200/h264/ch1/sub/av_stream
BX3V/BX7A/BF600S 최대 1080P 해상도 지원으로 IP 카메라 메인 스트림 사용 : rtsp://admin:Fangwei123@172.18.8.200/h264/ch1/main/av_stream

영상 연동 기능 설정

회선---동작 계획---동작 계획 추가으로 이동 후 영상 연동을 적용할 번호를 추가합니다(x.는 모든 번호를 의미하며 특정 번호 지정도 가능). 유형은 “통화 연결 완료”로 설정하고 URL에 카메라 RTSP 주소를 입력, 멀티캐스트 코덱은 “PCMU”, 동작은 “영상”로 선택한 후 추가를 클릭합니다.

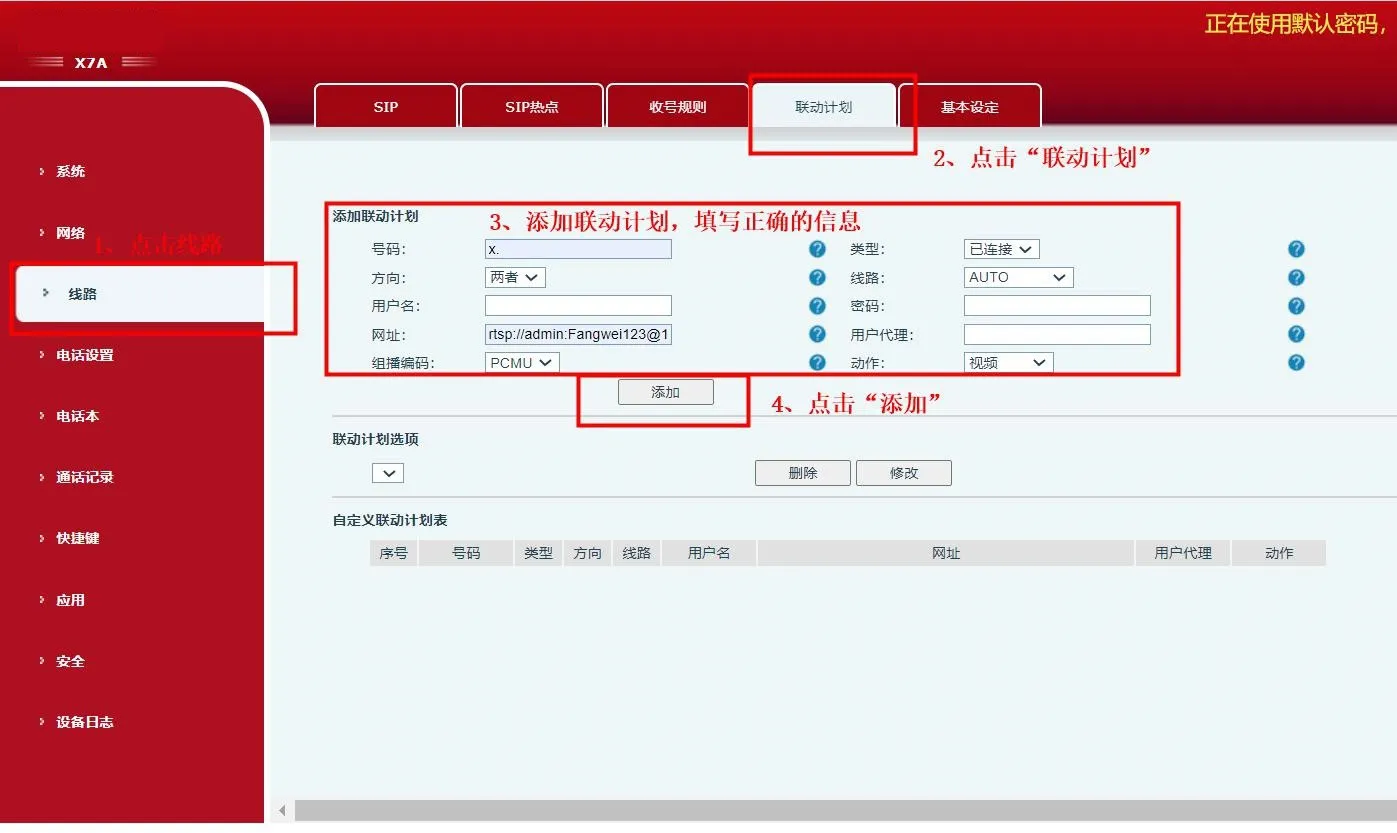

전화기 웹 인터페이스 동작 계획 추가
항목 추가 완료 후 사용자 정의 동작 계획 목록에 신규 생성된 영상 연동 규칙이 표시됩니다.

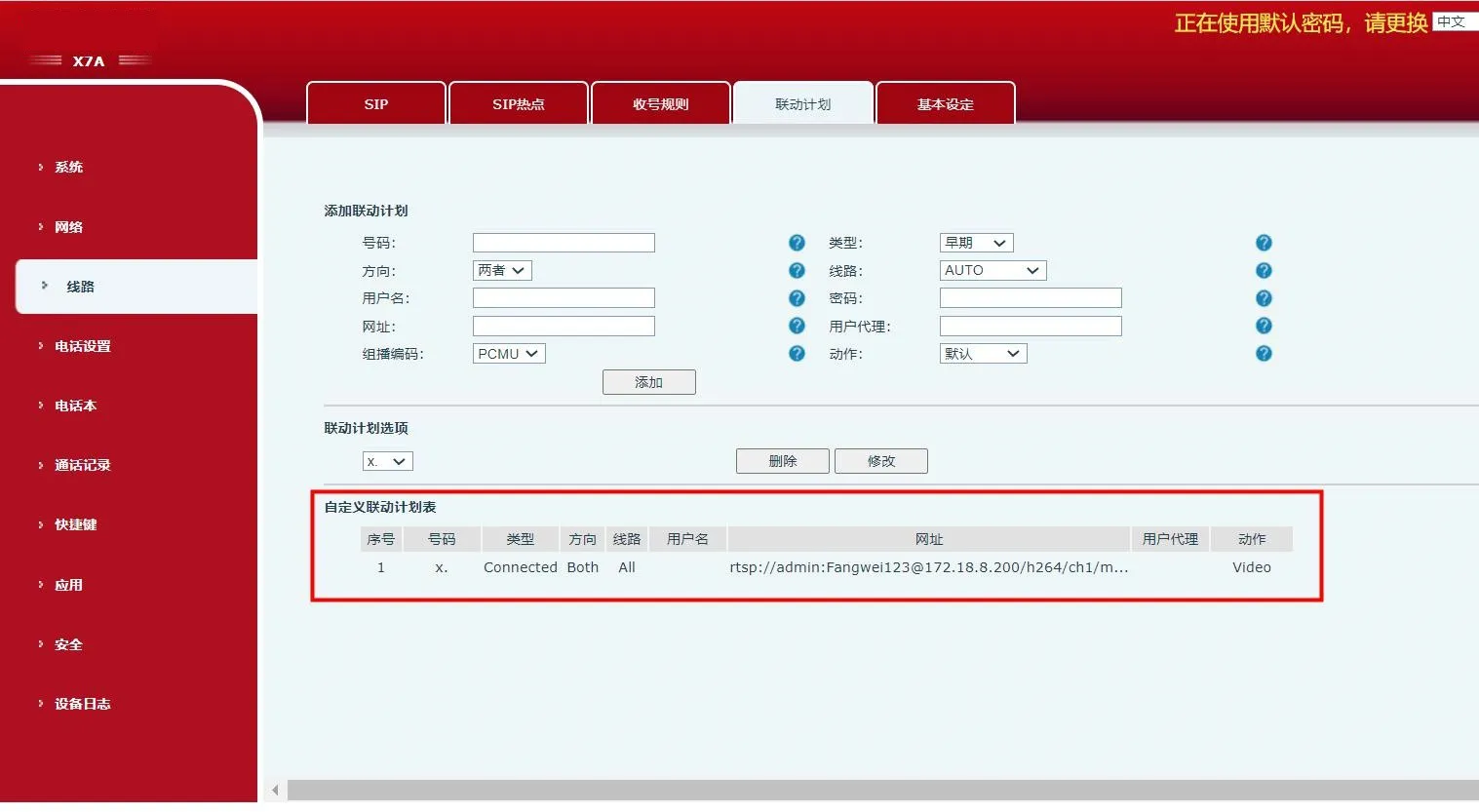

사용자 정의 동작 계획 목록
전화기 영상 연동 설정이 완료되면 모든 기기에서 해당 기기로 통화 시 통화 화면에 카메라 영상이 자동으로 표시됩니다.
