USB 드라이브를 이용한 산업용 전화의 자동 녹화에 관한 튜토리얼

소개

개요

전화기에서 녹음 기능을 활성화한 후, 더 큰 저장 용량(최대 128GB 지원)의 USB 드라이브를 연결하여 자동 녹음을 구성할 수 있습니다.

해당 모델

해당 모델: Android 전화기 및 USB 포트가 있는 전화기(예: X4U 시리즈)
해당 펌웨어: 지원 모델의 모든 버전

필요한 장치 및 도구

①两台 X7A 전화기, 스위치에 연결되고 IP 주소를 자동으로 얻을 수 있어야 함.
② 구성용 PC一台, 동일한 스위치에 연결되고 전화기와 네트워크 연결이 가능해야 함.

해결 방법

USB 드라이브를 전화기에 삽입

USB 드라이브를 Android 전화기에 삽입합니다. Android 전화기는 최대 128GB의 USB 드라이브를 지원하며, XU 시리즈 전화기는 최대 32GB를 지원합니다.

전화기 웹 인터페이스에서 녹음 활성화

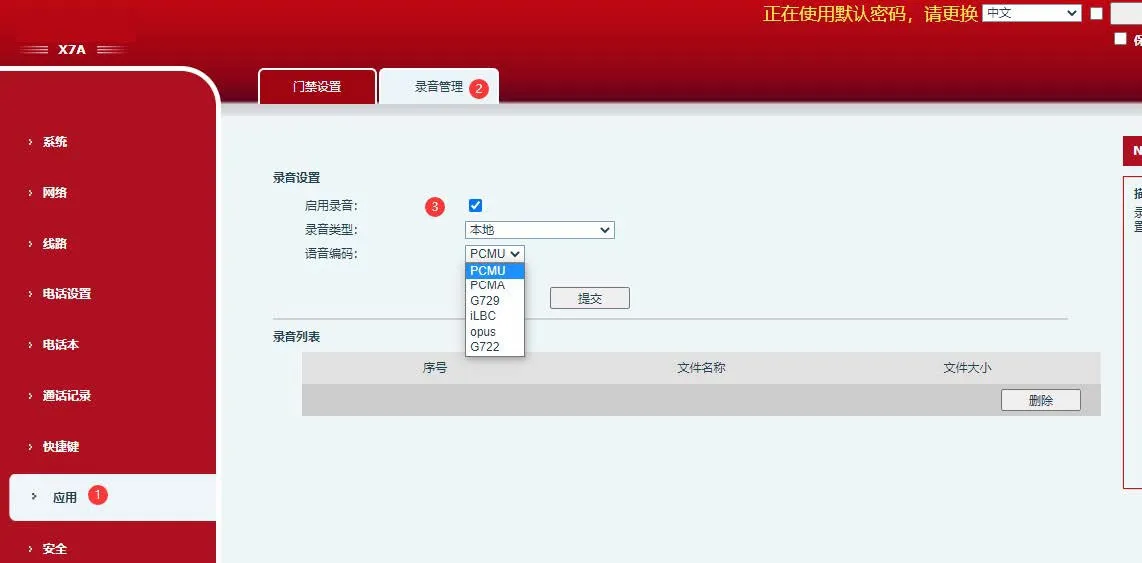

전화기 웹 인터페이스에서 애플리케이션 - 녹음 관리로 이동하여 녹음을 활성화하고 녹음 모드로 로컬을 선택합니다. 녹음된 파일을 컴퓨터에서 재생해야 하는 경우 오디오 코덱을 PCMU 또는 PCMA로 설정하십시오. 페이지는 아래와 같습니다.
오디오 코덱을 PCMU 또는 PCMA로 설정

액션 플랜 추가

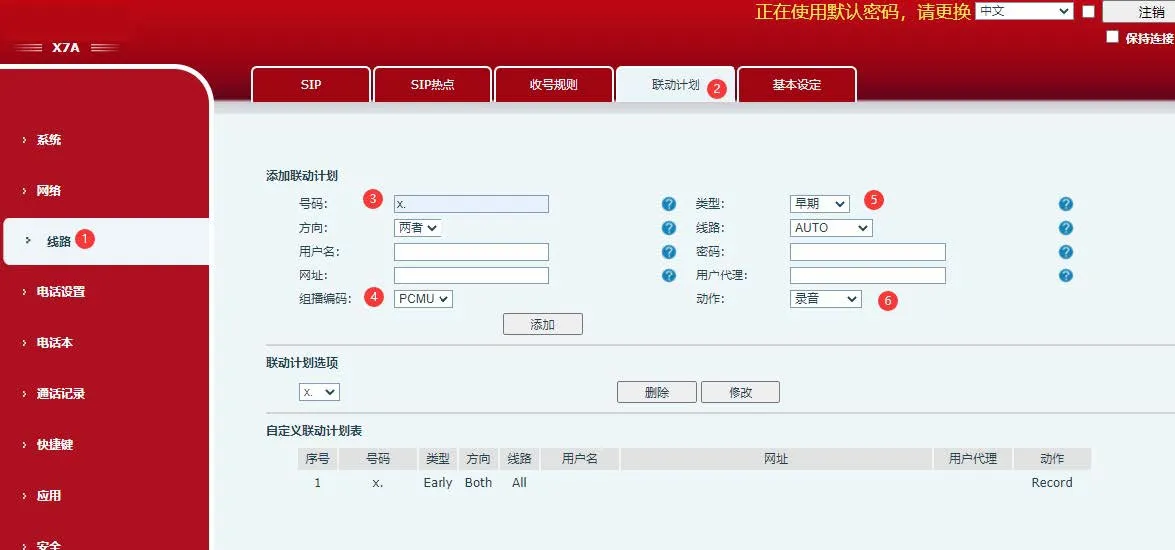

회선 - 액션 플랜에서 액션 플랜을 추가합니다. 번호를 x로 설정하고, 멀티캐스트 코덱을 PCMU 또는 PCMA로 설정하고, 유형을 Early로 설정하고, 동작을 Record로 설정합니다. 페이지는 아래와 같습니다.
액션 플랜 추가

구성 성공 후 전화기 표시

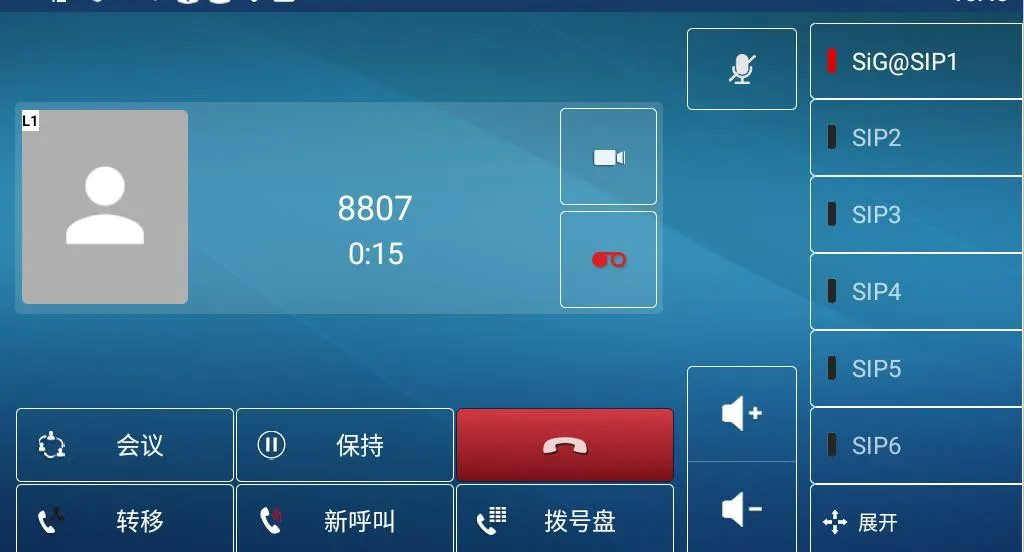

구성이 성공적으로 완료되면 전화기는 통화가 연결될 때 자동으로 녹음을 시작합니다. 녹음 아이콘이 빨간색으로 표시됩니다. 아래 그림과 같습니다.
통화 중 자동 녹음 활성화됨

녹음 파일 액세스

Android 전화기:
1) USB 드라이브가 삽입된 상태에서 녹음 파일에 액세스하려면 메뉴 - 파일 관리자 - USB로 이동합니다. 녹음 파일은 USB 드라이브의 루트 디렉토리에 있습니다.

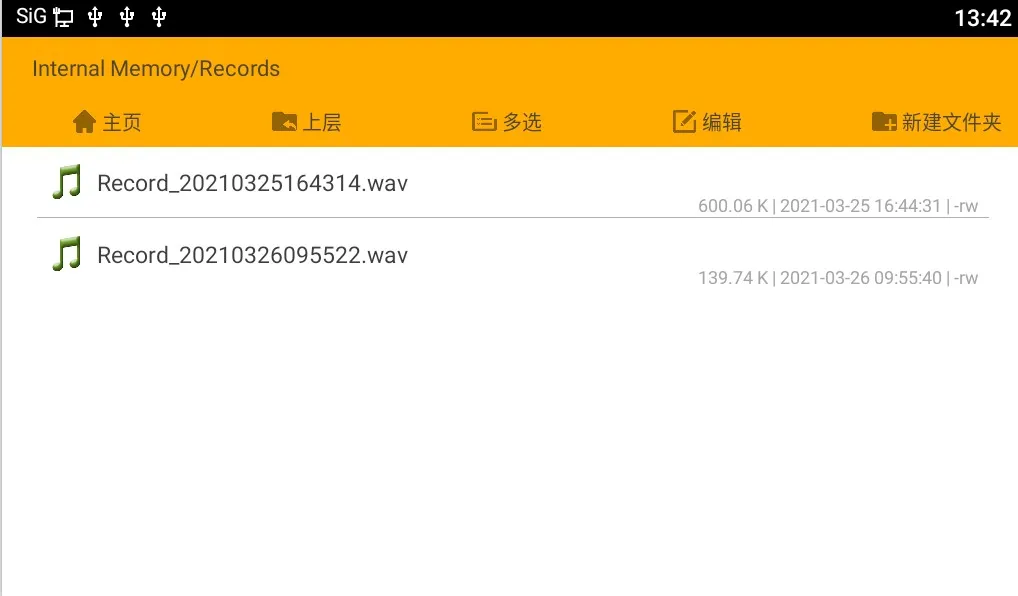

2) USB 드라이브가 삽입되지 않은 상태에서 녹음 파일에 액세스하려면 메뉴 - 파일 관리자 - 내부 메모리 - 녹음으로 이동합니다. 아래 그림과 같습니다.
USB 드라이브에서 녹음 파일 읽기

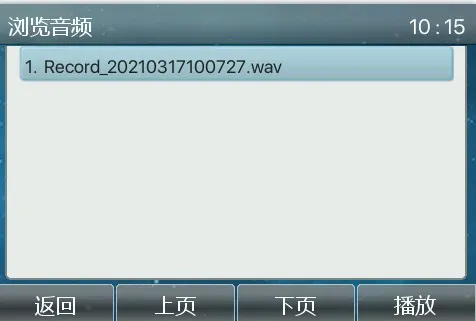

X4U 시리즈 전화기: 메뉴 - 애플리케이션 - USB - 오디오 찾아보기로 이동합니다. 아래 그림과 같습니다.
X4U 시리즈 전화기에서 오디오 파일 찾아보기
참고:
F600S는 USB 드라이브와 SD 카드 모두에 녹음을 지원합니다. 녹음 규칙은 다음과 같습니다.
(1) 외부 SD 카드나 USB 드라이브가 삽입되지 않은 경우 녹음 파일은 기본적으로 전화기의 내부 저장소에 저장됩니다.
(2) 외부 SD 카드만 삽입된 경우 생성된 녹음 파일은 외부 SD 카드의 루트 디렉토리에 저장됩니다.
(3) USB 드라이브만 삽입된 경우 생성된 녹음 파일은 USB 드라이브의 루트 디렉토리에 저장됩니다.
(4) 외부 SD 카드와 USB 드라이브가 모두 삽입된 경우 기본적으로 USB 드라이브가 외부 SD 카드보다 우선 순위가 높으며, 녹음 파일은 우선 순위가 높은 외부 저장 장치에 저장됩니다.
(5) USB 드라이브와 외부 SD 카드가 모두 삽입되어 있고 그중 하나가 제거된 경우 나머지 외부 저장 장치가 활성화됩니다. 예를 들어 USB 드라이브가 제거되면 녹음 파일은 외부 SD 카드에 저장됩니다.
