비정상적인 장치 동작에 대한 문제 해결 가이드

소개

개요

이 가이드는 전화기의 등록 관련 문제를 해결하고 사용자가 문제를 효율적으로 식별하고 해결하는 데 도움을 주기 위한 것입니다.

적용 모델

이 가이드는 당사의 모든 전화기 모델에 적용됩니다.

사전 요구 사항

① 스위치에 연결되고 IP 주소를 자동으로 얻을 수 있는 두 대의 BX4U 전화기.
② 동일한 스위치에 연결된 구성 PC 1대, PC와 전화기 간의 네트워크 통신이 확인되어야 함.

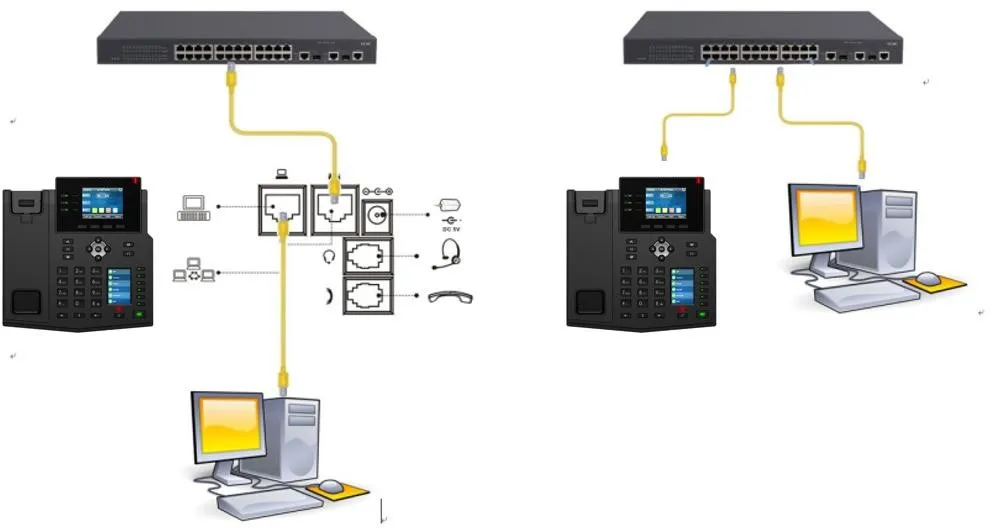

전화기 및 PC 연결 다이어그램

전화기 및 PC 연결 다이어그램

방법 1: LCD 화면에서 전화기 구성

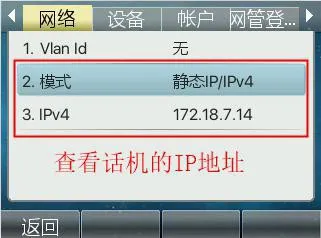

전화기 IP 주소 확인

전화기 LCD 화면에서 메뉴상태로 이동하여 전화기의 현재 IP 주소를 확인합니다.
전화기 IP 주소 확인

전화기 IP 주소 변경

LCD 화면에서 메뉴 -- 설정 -- 고급 설정 (기본 비밀번호: 123) -- 네트워크 -- 네트워크 설정 -- 네트워크 유형 -- 고정 설정으로 이동하여 필요한 IP 주소 정보를 입력하고 저장을 클릭합니다. 아래 그림 1~7에 나와 있습니다.

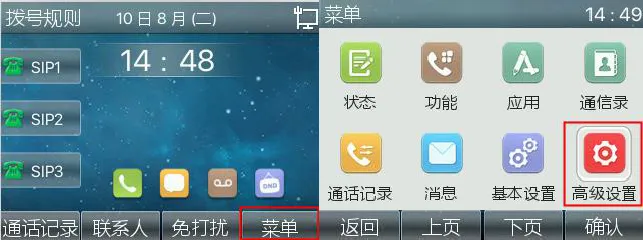

전화기 고급 설정 메뉴

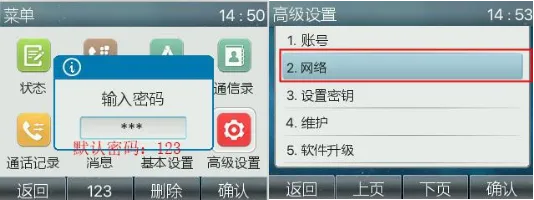

전화기 네트워크 설정 메뉴

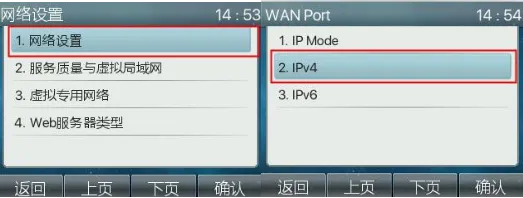

고정 네트워크 설정 페이지

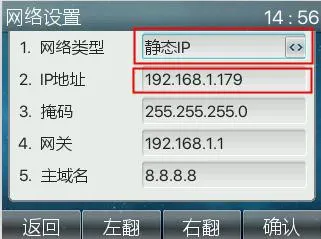

전화기에서 고정 IP 주소 편집

SIP 계정 등록

LCD 화면에서 메뉴 -- 설정 -- 고급 설정 (기본 비밀번호: 123) -- 계정 -- SIP1 -- SIP 기본 설정으로 이동하여 서버 주소, 서버 포트, SIP 사용자 이름, 인증 사용자 이름, 인증 비밀번호 및 표시 이름을 입력합니다. 아래 그림 1~9에 나와 있습니다.

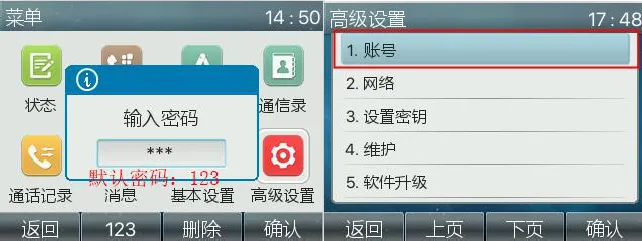

전화기 고급 계정 설정
SIP 계정 자격 증명 입력

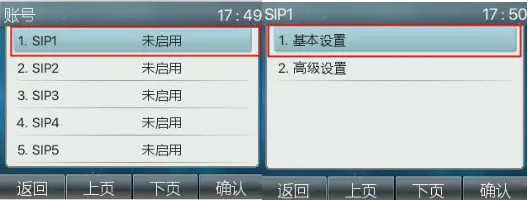

SIP 계정 기본 설정

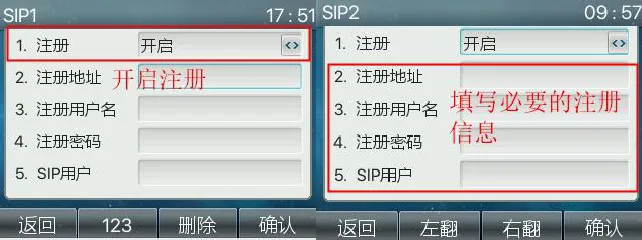

SIP 등록 활성화

참고: 등록 중에는 서버 주소, 등록 계정, 사용자 이름 및 비밀번호를 반드시 입력하십시오. 또한 구성을 저장하기 전에 계정이 활성화되어 있는지 확인하십시오.

등록 상태 확인

메뉴 -- 설정 -- 고급 설정 (기본 비밀번호: 123) -- 계정으로 이동하여 회선 상태가 등록됨으로 표시되는지 확인합니다.

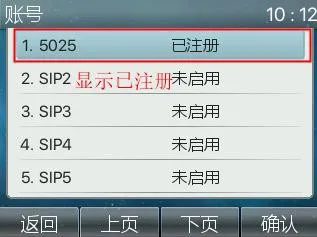

전화기에서 SIP 등록 상태 확인

방법 2: 웹 인터페이스에서 전화기 구성

전화기 IP 주소 확인

전화기 LCD 화면에서 메뉴상태로 이동하여 전화기의 현재 IP 주소를 확인합니다.

LCD 메뉴에서 전화기 IP 주소 확인

전화기 웹 인터페이스에 로그인

PC에서 브라우저를 열고 주소 표시줄에 전화기 IP 주소를 입력합니다.

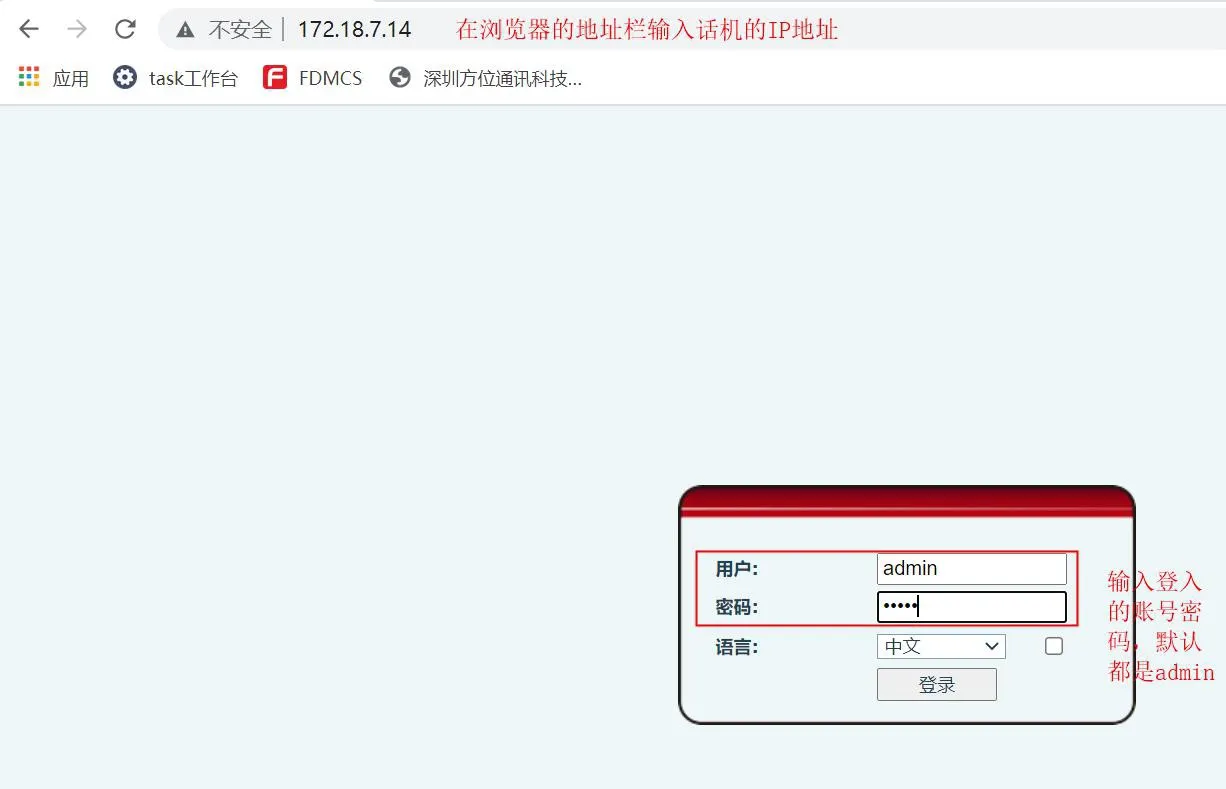

전화기 웹 인터페이스 로그인

필요한 경우 전화기 IP 주소를 변경합니다.

네트워크기본으로 이동하여 설정 섹션에서 고정 IP를 선택하고 필요한 IP 주소 정보를 입력한 다음 제출을 클릭합니다.

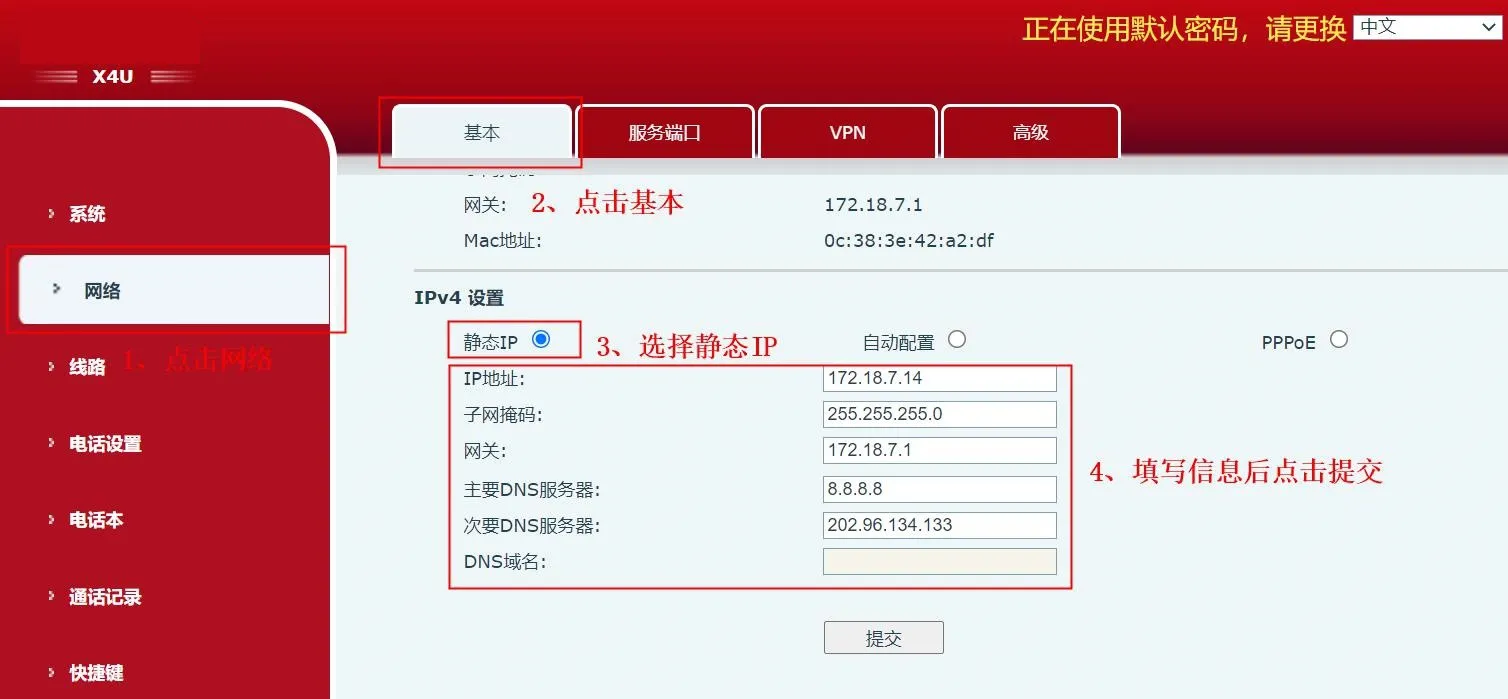

웹 인터페이스에서 전화기 IP 주소 변경

SIP 등록 정보 입력

회선 -- SIP -- 기본 설정으로 이동하여 SIP 계정 정보, 비밀번호, 포트, 서버 주소 및 기타 필요한 세부 정보를 입력합니다. 계정을 활성화하고 제출을 클릭합니다.

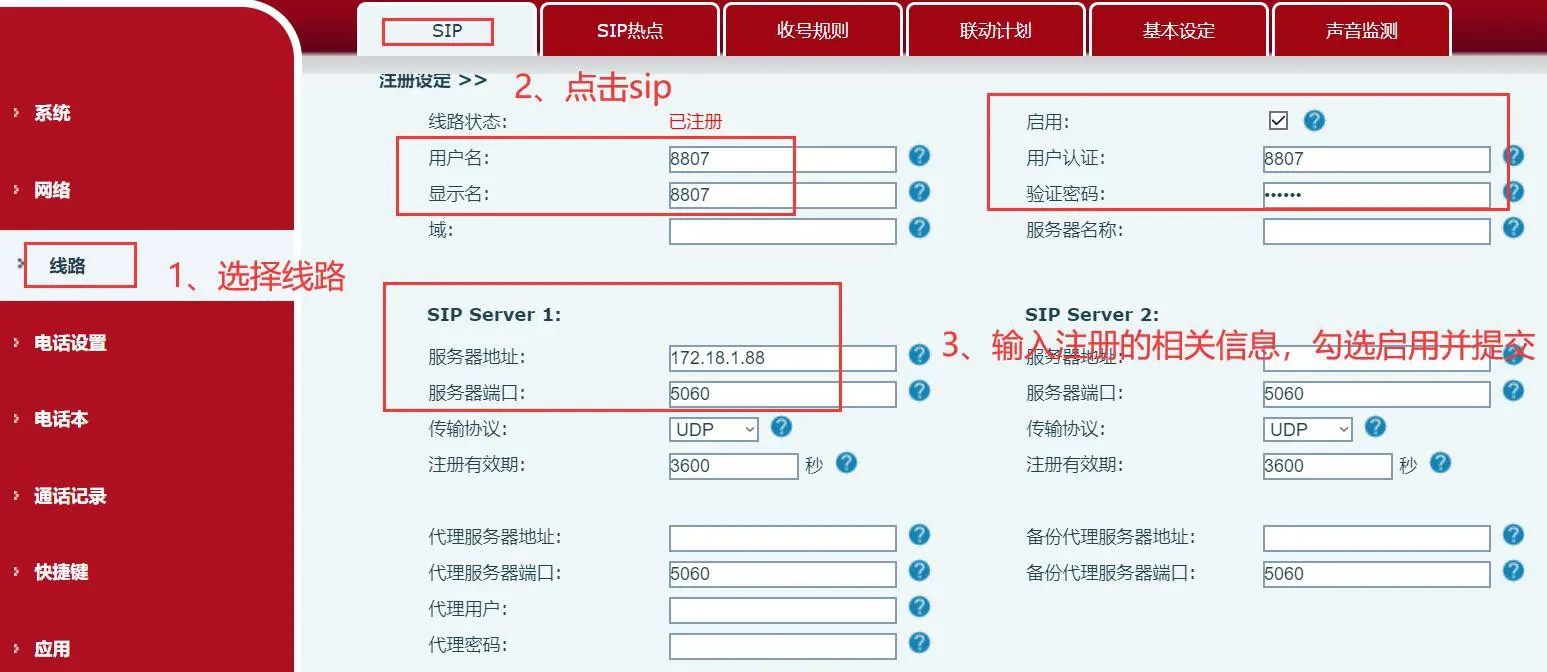

웹 인터페이스의 SIP 회선 설정

등록 상태 확인

회선 페이지에서 회선 상태를 확인합니다. 상태가 등록됨으로 표시되면 전화기가 성공적으로 등록되었으며 발신 및 수신 통화를 할 준비가 된 것입니다.
