i6x 시리즈 출입통제는 PortSIP 소프트폰과 어떻게 함께 사용하나요?

소개

개요

PortSIP 소프트폰은 Wi‑Fi 또는 4G/LTE 연결을 통해 통화를 발신하거나 수신하는 SIP 소프트폰입니다. H.264 및 VP8 비디오 코덱을 지원합니다. 당사 제품을 사용하면 애플리케이션에서 1080P 영상 통화, HD 음성 통화, 원격 원터치 문 열기를 사용할 수 있습니다. 이 문서는 제품에서 PortSIP UC를 사용하는 방법을 소개합니다. 설정을 완료하면 PortSIP에서 이러한 기능을 구현할 수 있습니다.

적용 모델

당사의 모든 제품.

사전 준비

1. 제품 1대(여기서는 i61을 예로 사용), PoE 스위치 1대(또는 DC 전원), SIP 서버 1대, PortSIP 소프트폰이 설치된 휴대폰 1대를 준비하고 장비를 스위치에 연결합니다.
2. 연결도를 참고하여 i61, SIP 서버, 무선 라우터 및 컴퓨터를 스위치에 연결합니다.
3. SIP 서버에서 두 개의 SIP 계정을 생성합니다. 하나는 i61용이고 다른 하나는 휴대폰 소프트 단말용입니다.
4. 휴대폰을 무선 라우터에 연결하고 i61, SIP 서버, 휴대폰 사이의 네트워크가 원활한지 확인합니다.

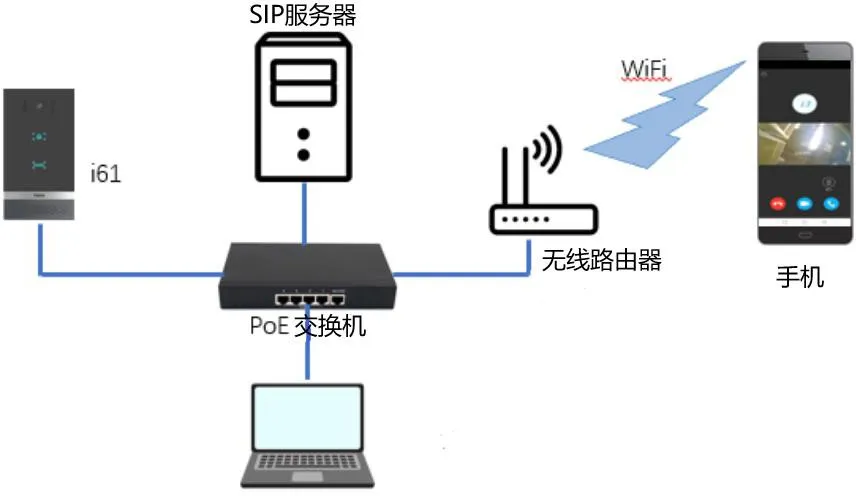

장비 연결도

장비 연결도

설정 방법

i61을 예로 들어 PortSIP UC를 사용하여 1080P 영상 통화, HD 음성 통화 및 원격 원터치 문 열기를 구현하는 설정을 소개합니다. 시작하기 전에 아래 “등록” 부분에 따라 설정하십시오.

등록

2.1.1. i61을 SIP 서버에 등록
1. 전화기 web 라인--SIP 페이지에서 내선 등록 활성화: 체크
사용자 이름: SIP 서버가 할당한 내선 표시 이름: 필요에 따라 사용자 지정 가능
사용자 인증: SIP 서버가 할당한 내선
인증 비밀번호: SIP 서버가 할당한 내선에 해당하는 비밀번호 서버 주소: SIP 서버 주소
서버 포트: SIP 서버 포트

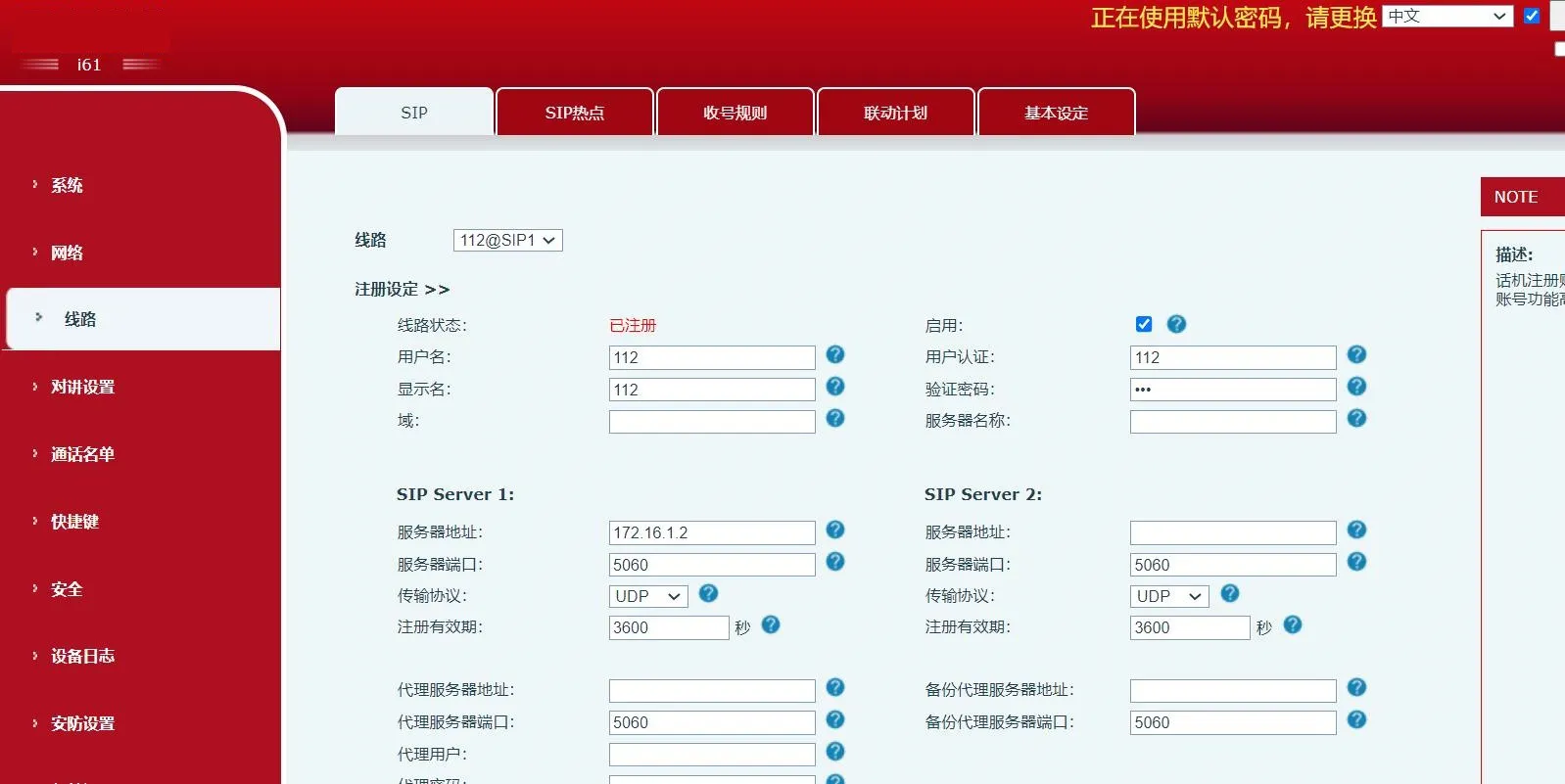

출입통제 SIP 서버 등록 절차도
2. “제출” 버튼을 클릭합니다
2.1.2. 휴대폰에서 SIP 서버 등록
1. PortSIP 소프트웨어를 열고 사용자 이름, 비밀번호 및 서버 주소를 입력합니다

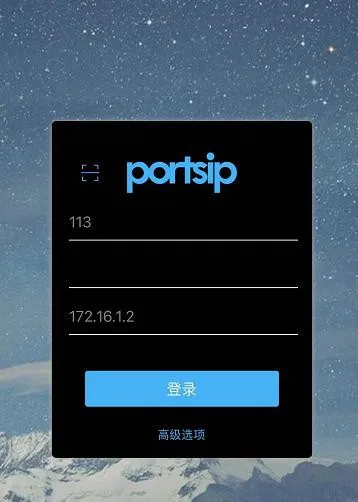

휴대폰 SIP 서버 사용자 로그인 화면
2. “로그인” 버튼을 클릭합니다
2.2. 연락처 추가
애플리케이션의 “연락처” 페이지에서 오른쪽 상단 아이콘을 클릭합니다. 다음 페이지에서 i61의 SIP 번호를 입력하고 적용합니다.
새 연락처 생성 작업도

음성 및 영상 통화

2.3.1. i61 원터치 발신 설정
1. 단축키 설정
유형: 메모리 키
이름: 사용자 지정 이름
값: 휴대폰 소프트폰에 등록된 내선 번호
하위 유형: “단축 다이얼” 선택
라인: i61에 등록된 내선 번호 선택

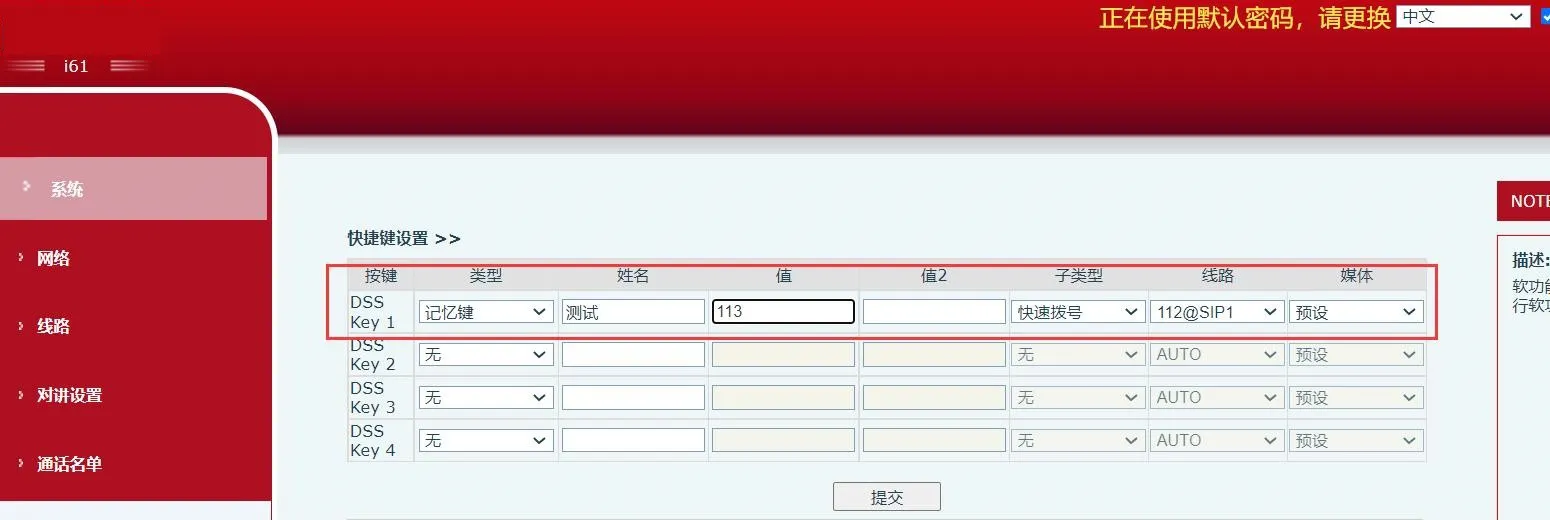

출입통제 단축키 설정 절차도
2. “제출” 버튼을 클릭합니다
3. i61 패널의 단축키를 눌러 발신합니다
2.3.2. PortSIP 소프트폰으로 발신
애플리케이션의 “다이얼” 페이지로 들어가 i61 SIP 번호를 입력한 다음 다이얼 아이콘을 클릭합니다.
PortSIP 소프트폰 발신 화면
또는 애플리케이션의 “연락처” 페이지로 들어가 통화하려는 연락처를 클릭한 뒤 발신 모드를 선택할 수 있습니다.

원격 문 열기

1. i61에서 원격 비밀번호를 설정합니다:
유형: “원격” 선택
비밀번호: 원격 비밀번호 입력

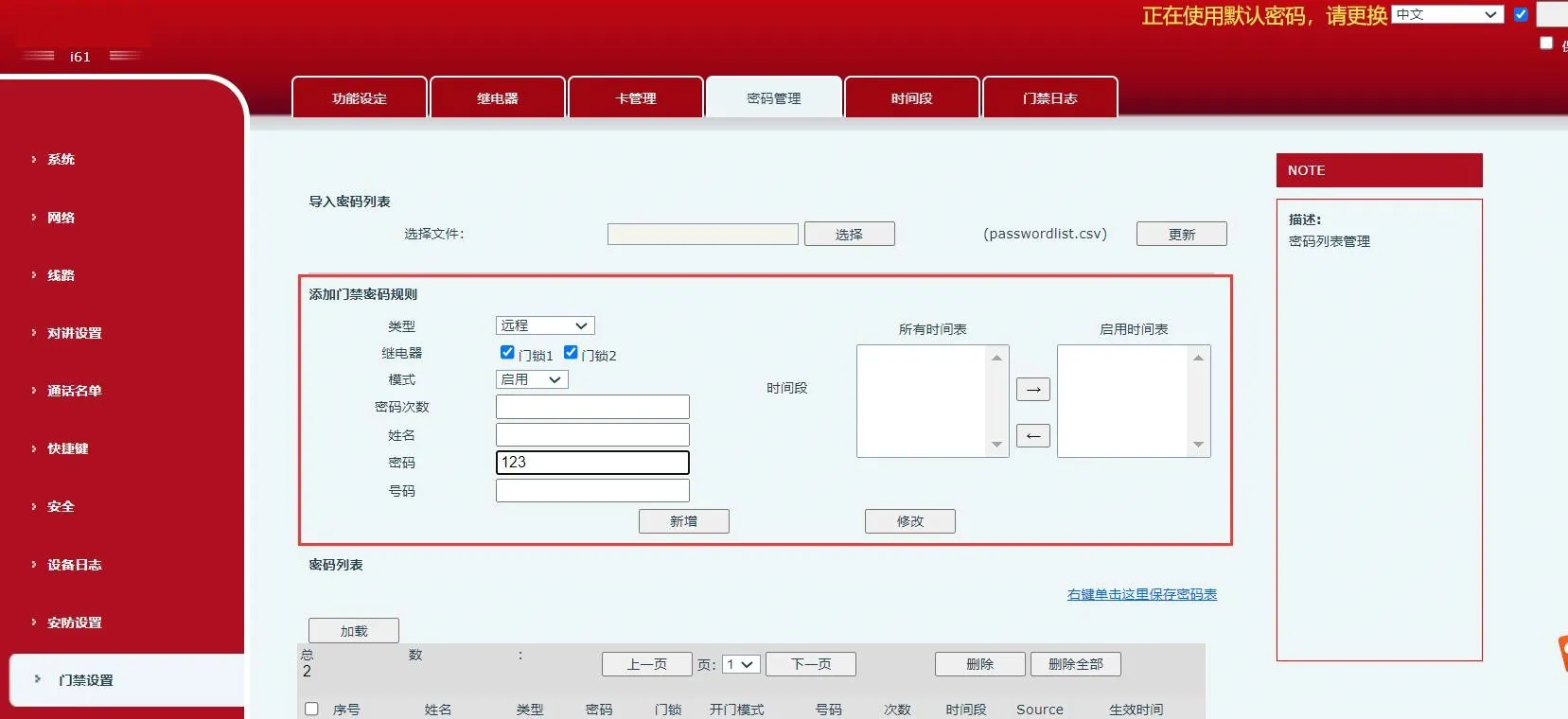

출입통제 원격 문 열기 매개변수 설정
2. “제출” 클릭
3. 소프트폰에서 i61 확장 유형을 “출입통제”로 선택하고 “문 열기 비밀번호”에 원격 비밀번호를 입력합니다

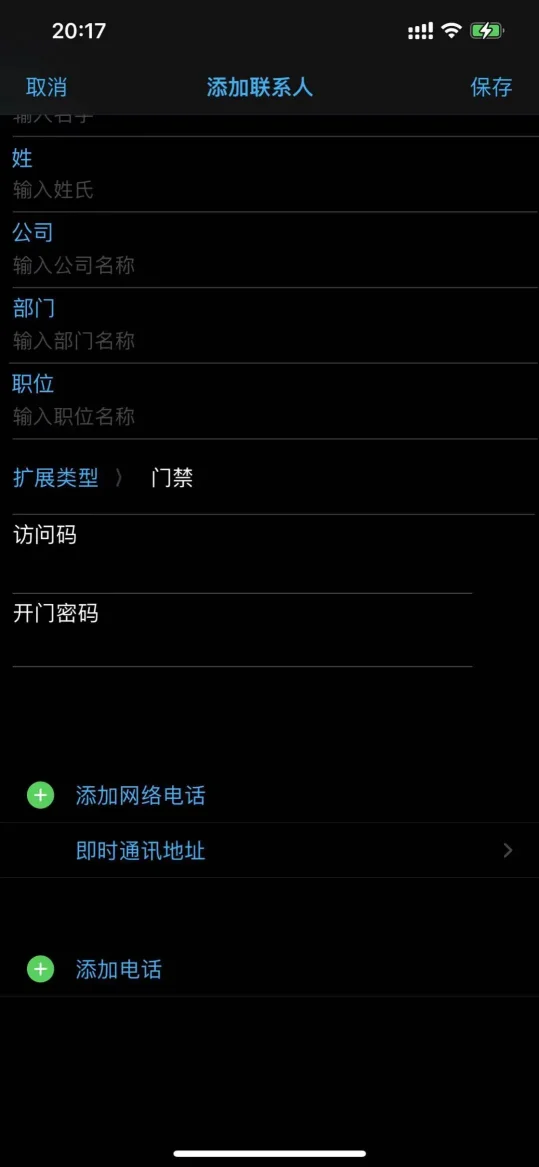

원격 문 열기 작업 화면
4. 통화 중 “문 열기” 아이콘을 클릭하거나 “다이얼 패드”로 이동하여 원격 제어 비밀번호를 입력해 문 열기 작업을 진행합니다.
통화 중 원격 문 열기 작업 절차도
