출입통제는 NVR과 어떻게 연동하나요?

소개

개요

이 문서는 출입통제 장비를 NVR에 연동하는 방법을 소개하며, 주로 산업용 단말 제품의 영상 녹화 문제를 해결하기 위한 내용입니다. NVR 클라이언트는 RTSP 명령을 산업용 영상 단말로 전송한 다음, 산업용 카메라의 영상 스트림을 클라이언트로 다시 전송하여 실시간 영상 확인과 녹화를 구현합니다.
NVR: 전체 명칭은 Network Video Recorder, 즉 네트워크 비디오 녹화기입니다. 네트워크 영상 감시 시스템의 저장 및 전달 부분이며, NVR은 비디오 인코더 또는 네트워크 카메라와 함께 작동하여 영상 녹화, 저장 및 전달 기능을 완료합니다.

적용 모델

i30,i31S,i32V,i33V,i61,i62,i63,i64

NVR 녹화 환경 준비

1.3.1. 장비 준비
비디오 출입통제 장비와 Hikvision 또는 Dahua NVR 1대를 사용합니다
1.3.2. 네트워크 연결도
NVR 녹화 네트워크 연결도

NVR에 단말 추가 작업 절차

Hikvision NVR 추가 예시

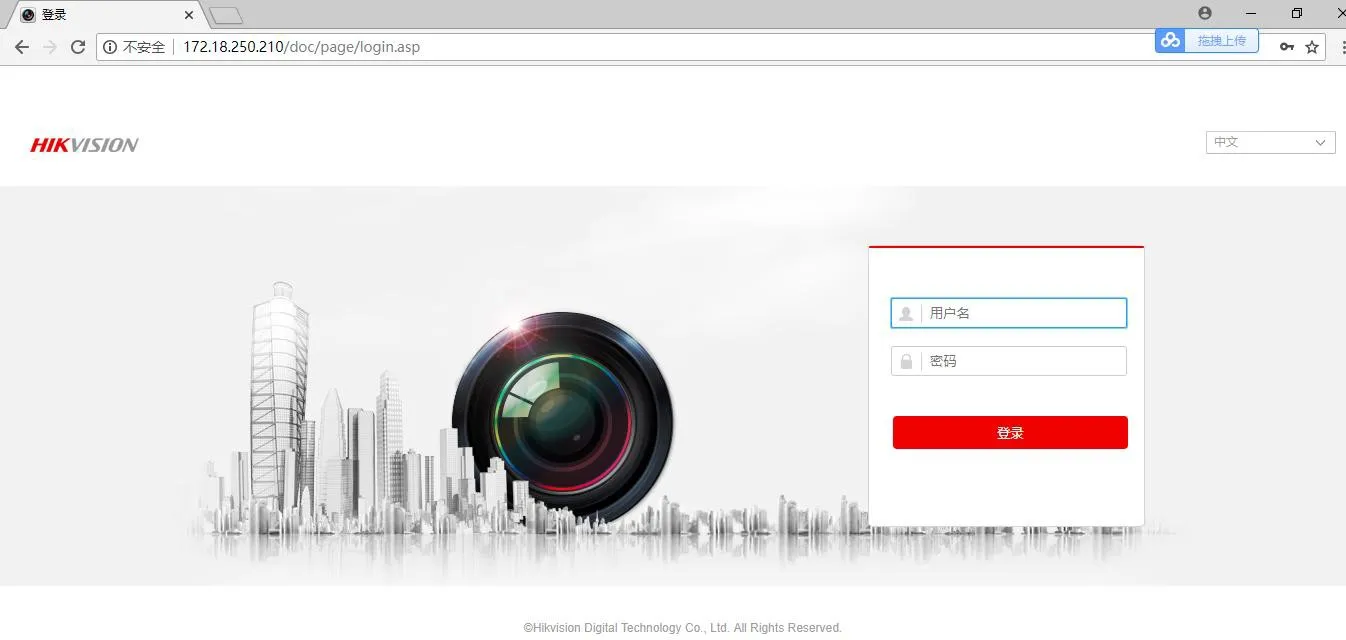

① 브라우저에서 NVR web 인터페이스에 로그인합니다
브라우저에서 NVR web 인터페이스 로그인
설정-채널 관리 모듈

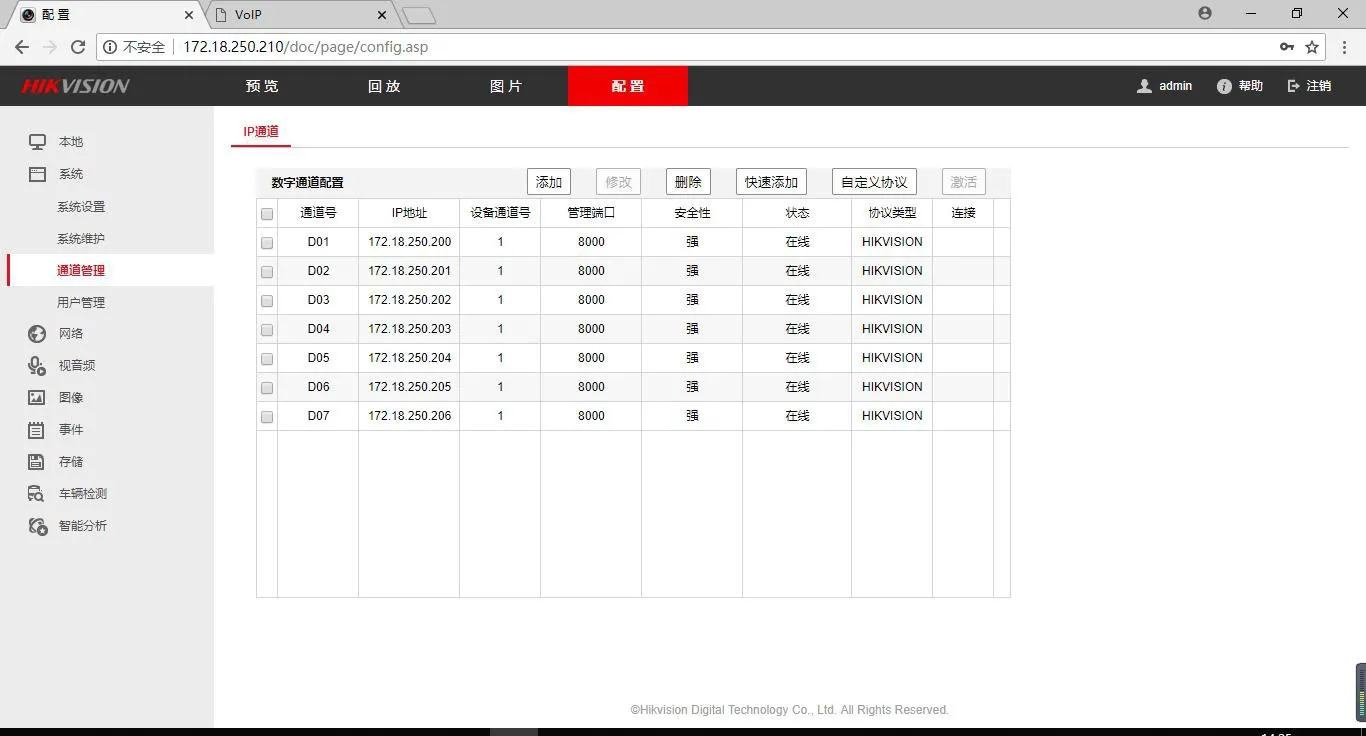

채널 관리 모듈 설정 화면
③ 사용자 지정 프로토콜을 설정합니다
프로토콜 유형: RTSP
전송 프로토콜: 자동, 포트: 554

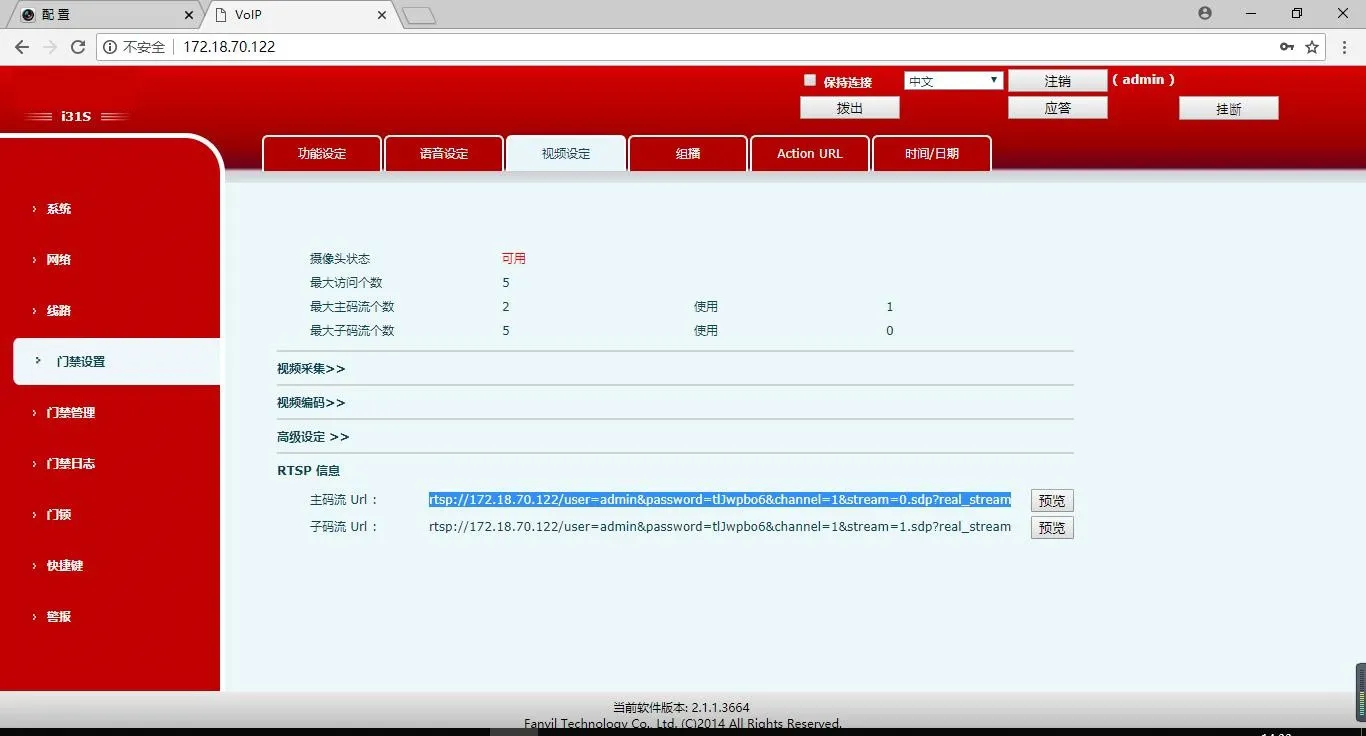

리소스 경로: 출입통제 설정_비디오 설정_RTSP 정보_메인 스트림 URL 복사

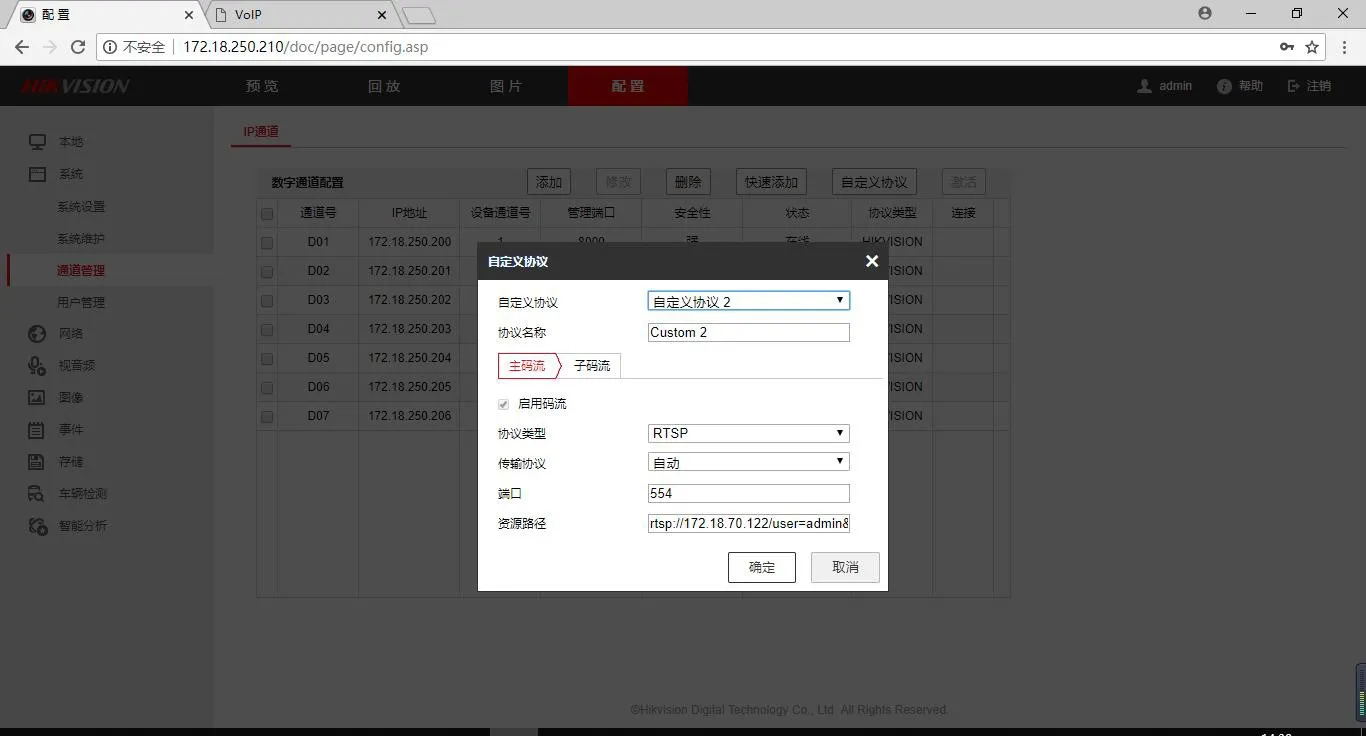

사용자 지정 프로토콜 설정 화면
사용자 지정 프로토콜 설정 화면
④ 디지털 채널 설정-추가
IP 채널 주소: 산업 장비 IP
프로토콜 유형: 사용자 지정 프로토콜의 프로토콜 이름
관리 포트: 사용자 지정 프로토콜의 설정 항목을 기본 표시
사용자 이름: 사용자 지정
비밀번호: 사용자 지정
비밀번호 확인: 비밀번호와 동일
전송 프로토콜: 기본값

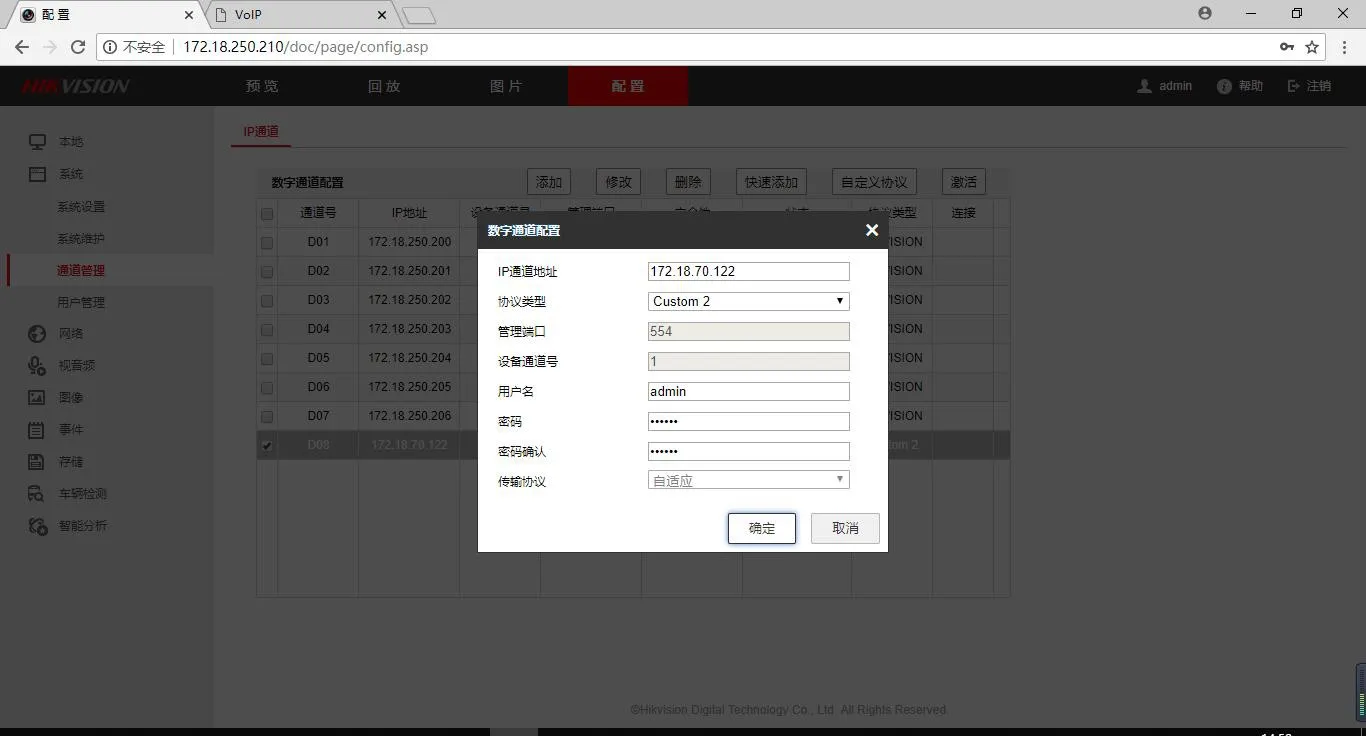

디지털 채널 설정 추가
⑤ 추가 성공

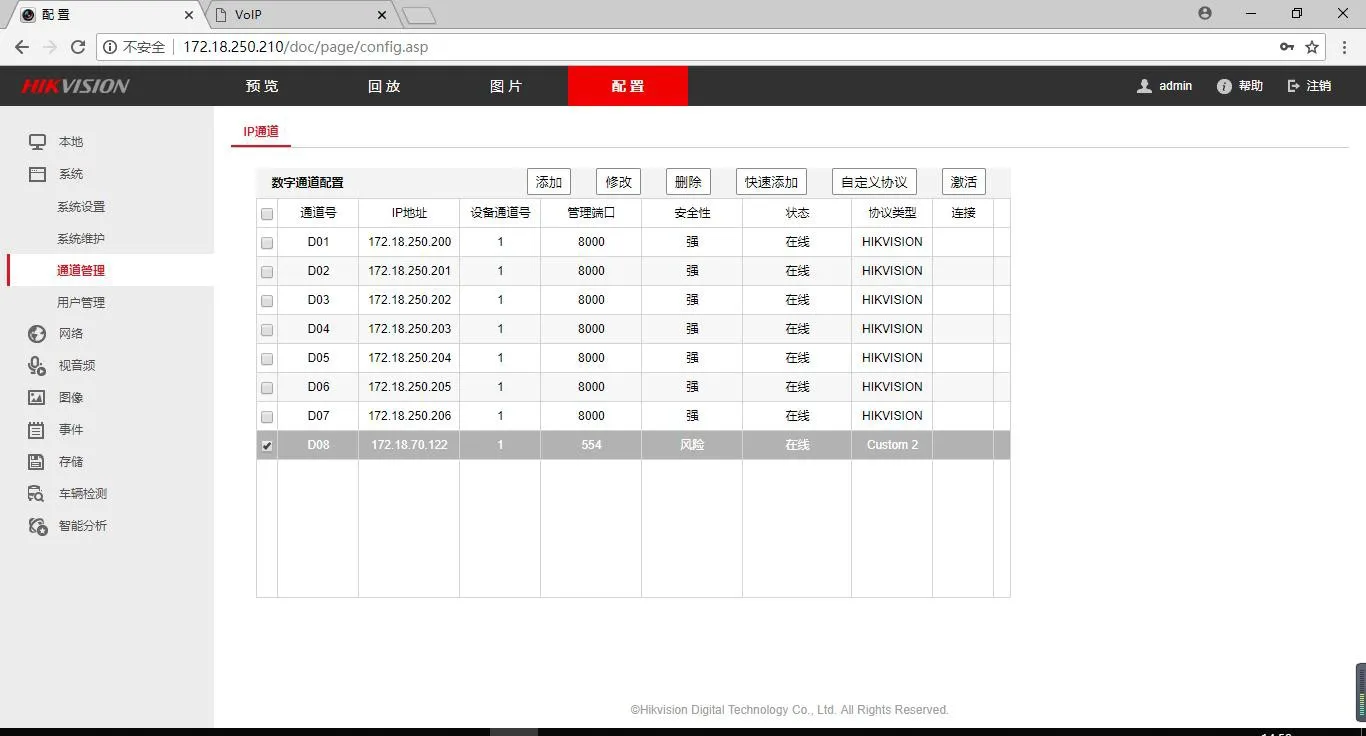

NVR 추가 성공 화면
