방폭 전화기 명판을 읽는 방법

방폭 전화기 명판에는 보호 방식, 가스 및 분진 그룹, T1–T6, EPL, IP 등급과 주위 온도 한계가 표시됩니다. 전체 모델 인증서와 조건이 분류된 설치 장소에 부합해야 합니다.

Becke Telcom

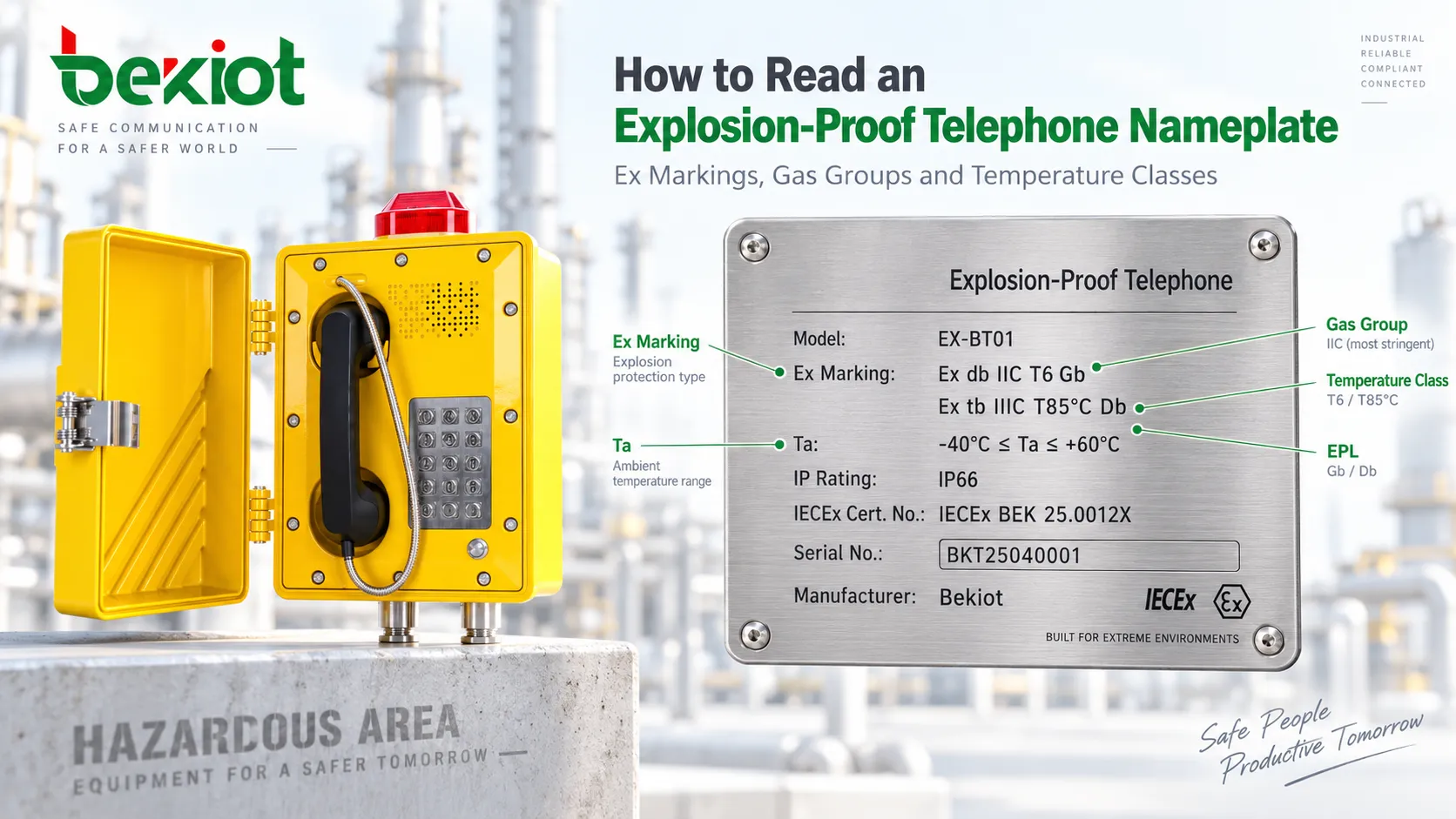

방폭 전화기 명판을 읽는 방법

방폭 전화기 명판은 장비와 폭발성 분위기에 대해 표시된 보호를 식별합니다. 현장의 위험 장소 분류와 대조한 다음 전체 모델, 인증서 및 설치 지침을 확인해야 합니다. 노란색 외함, IP 등급 또는 “IIC T6”라는 문구만으로 적합성을 판단할 수는 없습니다.

Ex 표시의 구성 요소 구분

다음 가스용 표시는 예시이며 특정 전화기의 인증을 주장하지 않습니다.

Ex db IIC T6 Gb
요소의미
Ex적용 표준에 따른 방폭 보호 표시입니다.
db보호 수준 b의 내압방폭 외함 보호입니다.
IIC가스용 장비 세부 그룹입니다.
T6규정된 조건에서 최대 표면 온도를 85°C로 제한하는 가스 온도 등급입니다.
Gb가스 분위기의 장비 보호 수준(EPL)입니다.

별도 인증된 분진 표시는 Ex tb IIIC T85°C Db와 같을 수 있습니다. tb는 외함에 의한 분진 보호, IIIC는 전도성 분진을 포함하는 그룹, T85°C는 최대 표면 온도, Db는 분진 EPL을 뜻합니다. 가스와 분진 표시는 별도의 평가입니다. 가스 승인이 분진 적합성을 입증하지 않으며, 분진 장비 선정에는 분진운과 분진층의 점화 조건을 고려해야 합니다.

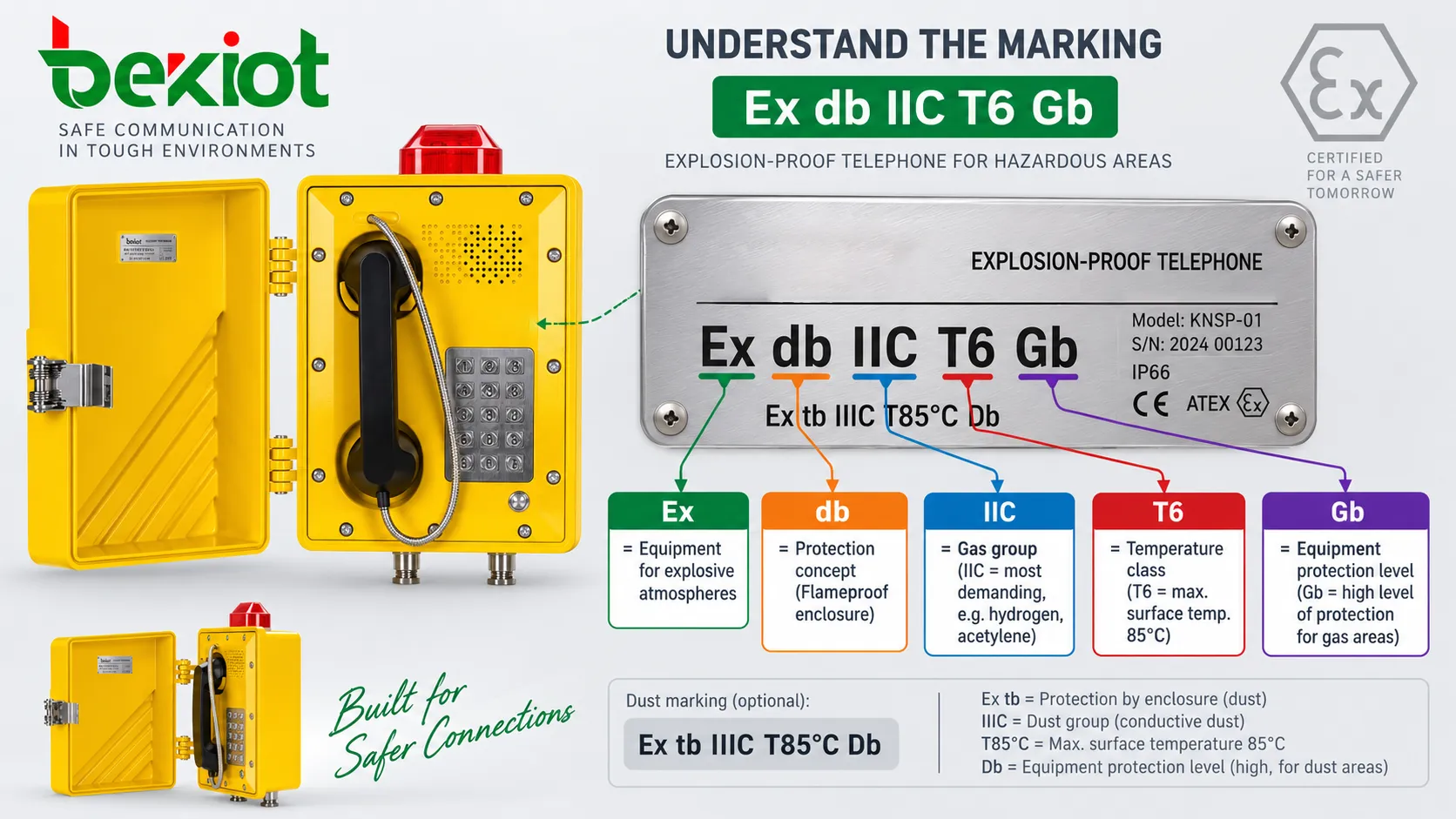

Ex db IIC T6 Gb의 각 요소와 별도의 분진 표시를 보여주는 전화기 명판 예시
표시 구성의 예시입니다.

보호 방식과 조립품 범위 이해

내압방폭 보호 d 또는 db는 내부 폭발을 견디고 지정된 주변 분위기의 점화를 방지하도록 설계된 외함과 화염 통로를 사용합니다. 안전증 방폭 e 또는 eb는 정해진 조건에서 불꽃이나 과도한 온도로 인한 점화를 방지하는 구조적 조치를 적용합니다. 본질안전 방폭 i는 ia 또는 ib 등의 수준으로 규정된 정상 및 고장 조건에서 전기·열에너지를 제한하며, 불꽃 발생이 물리적으로 불가능하다는 뜻은 아닙니다.

Ex db eb IIC T6 Gb와 같은 복합 표시는 두 가지 이상의 보호 방식을 나타냅니다. 글자가 많으면 더 좋은 전화기라는 순위가 아닙니다. 각 방식이 인증된 조립품, 단자 및 외부 회로에 어떻게 적용되는지 확인해야 합니다.

허용된 절차 없이 외함을 뚫거나 체결부를 대체하거나 화염 통로를 변경하거나 케이블 인입부를 바꾸지 마세요. 부품이나 빈 외함의 인증서만으로 조립된 전화기가 인증되지는 않습니다. 외함, 내부 구성품, 액세서리 및 설치가 승인 범위와 일치해야 합니다.

온도와 별도로 가스 그룹 대조

지상 산업의 가스 분위기에서 그룹 II는 IIA, IIB 및 IIC로 세분됩니다. 각각 프로판, 에틸렌, 수소 또는 아세틸렌이 잘 알려진 대표 사례입니다. 이는 그룹의 예시이며 물질별 장비 선정을 위한 완전한 지침은 아닙니다. 광산용 그룹 I과 분진용 그룹 III은 별도 점검이 필요합니다.

현장 가스 세부 그룹이 요건을 충족할 수 있는 장비 세부 그룹
IIAIIA, IIB 또는 IIC
IIBIIB 또는 IIC
IICIIC

이 표는 구체적인 제한사항을 전제로 가스 그룹 요건만 다룹니다. IIC 장비는 일반적으로 IIB 및 IIA 그룹 요건을 충족할 수 있지만 IIB 표시만으로 IIC 요건을 충족하지는 못합니다. 온도, EPL, 주위 환경 한계 및 전체 인증서를 계속 확인해야 합니다.

T1–T6와 주위 온도 구분

가스 온도 등급은 인증 조건에서 장비의 최대 표면 온도를 규정합니다. 허용 주위 온도가 아닙니다.

온도 등급최대 표면 온도
T1450°C
T2300°C
T3200°C
T4135°C
T5100°C
T685°C

T6는 T4보다 허용 표면 온도가 낮으며 모든 적용 조건을 충족하면 T4 온도 등급 요건을 만족할 수 있습니다. 전화기를 주위 온도 85°C에서 운전해도 된다는 뜻은 아닙니다. 인증된 Ta 범위를 별도로 확인해야 합니다.

예를 들어 -40°C ≤ Ta ≤ +60°C는 65°C에 도달하는 현장을 포함하지 않습니다. 여러 온도 정격은 주위 온도, 전기 부하 또는 구성에 따라 달라질 수 있으므로 각 줄에서 가장 유리한 값만 고르지 말고 인증서의 해당 조합을 사용해야 합니다.

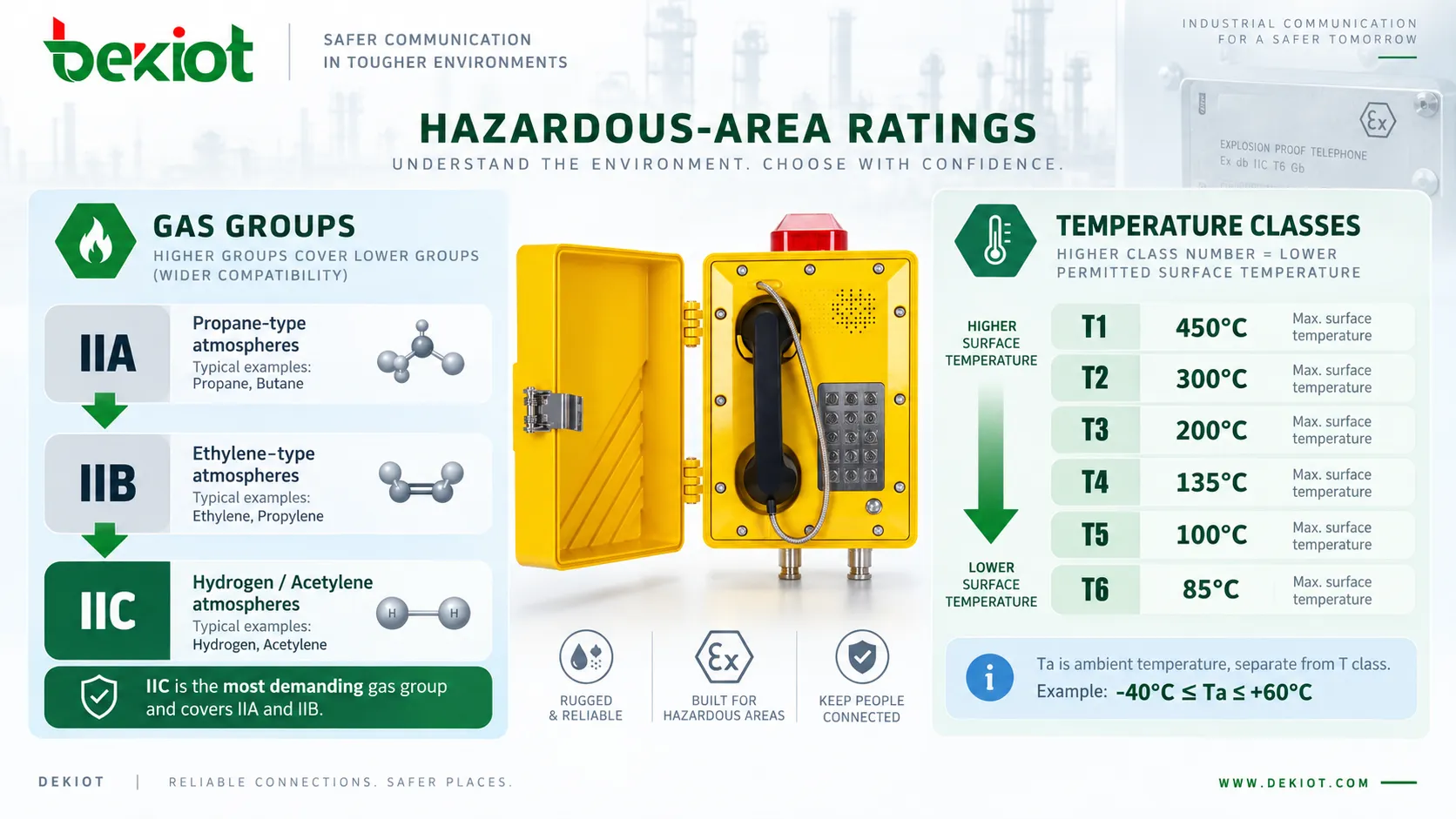

가스 그룹 IIA부터 IIC 및 온도 등급 T1부터 T6를 비교하고 주위 온도 범위 예시를 보여주는 그림
가스 그룹 및 온도 등급 예시입니다.

EPL, 침입 보호 및 인증서 조건 확인

일반적인 IEC 선정 관계에서 구역 0은 Ga가 필요하고, 구역 1은 Gb 또는 Ga, 구역 2는 Gc, Gb 또는 Ga를 허용합니다. 분진의 경우 구역 20은 Da가 필요하고, 구역 21은 Db 또는 Da, 구역 22는 Dc, Db 또는 Da를 허용합니다. 현장에 지정된 EPL과 적용 현지 규칙을 전체 보호 방식 및 인증서와 함께 적용해야 합니다.

IP66은 분진과 물의 침입에 대한 보호를 설명합니다. Ex 승인이 아니며 무제한 세척 내성을 의미하거나 부식 평가를 대신하지도 않습니다. Ex 설계를 손상하지 않으면서 필요한 환경 보호를 확인해야 합니다.

실물 모델과 변형, 제조사, 전기 정격, 주위 온도 범위 및 인증서 번호를 실제 인증서와 현재 상태에 대조합니다. 접미사 X는 준수해야 하는 특정 사용 조건을 뜻합니다. 접미사 U는 통합을 위해 추가 평가가 필요한 Ex 부품을 의미하며 완성 전화기의 독립 사용 승인이 아닙니다.

IECEx와 ATEX는 서로 다른 적합성 체계입니다. IECEx 인증이 EU 시장 요건이나 모든 국가 승인 제도를 자동으로 충족하지는 않습니다. ATEX 제품은 적용 EU 선언, 장비 그룹과 범주, 가스 또는 분진 표시 및 납품 조립품의 적합성 문서를 확인해야 합니다.

현장 요건을 기준으로 장비 확인

현장에서 구역 1, 가스 세부 그룹 IIB, 온도 등급 T4, 주위 온도 -20°C부터 +55°C에서의 운전을 요구한다고 가정합니다. Ex db IIC T6 Gb 표시는 가스 그룹, 온도 등급 및 일반적인 EPL 요건을 충족할 수 있지만, 이 표시만으로 인증된 주위 온도 범위가 해당 현장을 포함하는지는 알 수 없습니다.

  1. 가스 또는 분진 분류, 물질 그룹, 요구 온도 한계 및 지정 EPL을 확인합니다.

  2. 전체 장비 표시, 인정되는 적합성 절차 및 정확한 인증 모델이나 변형을 확인합니다.

  3. 계획된 설치에 대해 주위 환경 한계, 전원, 케이블 인입부, 액세서리 및 모든 X 조건을 검증합니다.

  4. 입고 시 실물 명판을 승인된 제출 자료 및 인증서와 비교하고 누락, 손상 또는 불일치한 식별정보를 설치 전에 해결합니다.

  5. 적격 인력이 설치 및 최초 검사 기록을 확인하도록 하고 유지보수용 문서를 보관합니다.

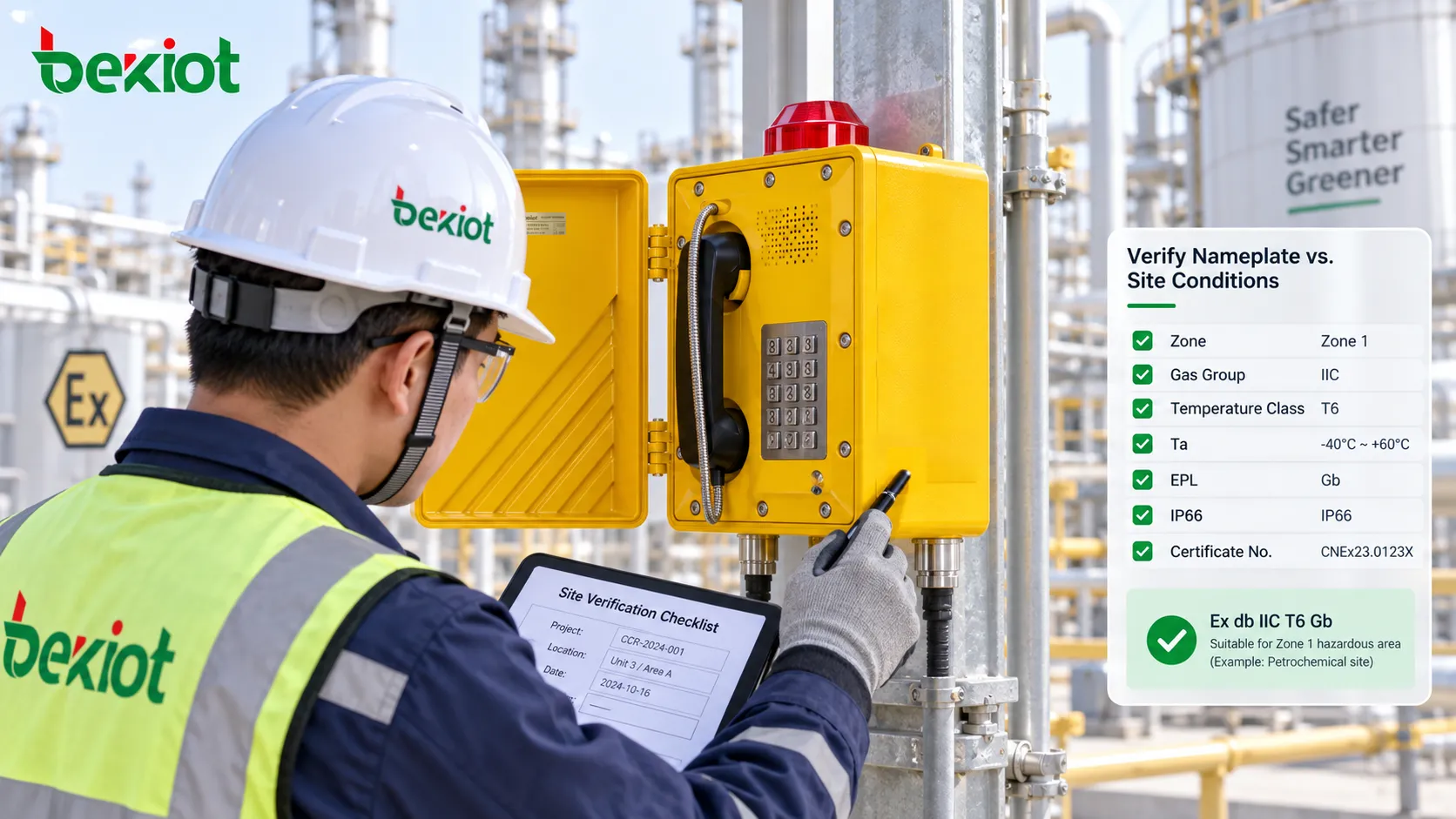

엔지니어가 전화기 명판을 현장 검증 체크리스트와 대조하는 그림
현장 검증 예시입니다.

이 검토는 SIP, 아날로그 또는 관제 기능 선정과 구분해야 합니다. 이러한 통신 기능은 위험 장소 적합성을 입증하지 않습니다. 더 넓은 사양 검토는 전화기 선정 안내서에서 다룹니다.

자주 묻는 질문

IIC T6이면 모든 구역 1 현장에 적합한가요?

아닙니다. 가스 그룹과 온도 등급만을 다룹니다. EPL, 보호 방식, 주위 온도 범위, 인증서 범위, 설치 조건 및 현지 인정 요건도 일치해야 합니다.

IP66이 Ex 표시를 대체할 수 있나요?

아닙니다. 침입 보호와 방폭 보호는 서로 다른 특성입니다. 내후성 전화기라도 위험 장소 승인이 없을 수 있습니다.

IIC와 IIIC가 함께 있으면 어느 표시를 적용하나요?

가스 분류에는 가스 행을, 분진 분류에는 분진 행을 사용합니다. IIC와 IIIC는 같은 척도의 등급이 아닙니다. 두 위험이 모두 관련되면 둘 다 평가해야 합니다.

예시 명판만으로 구매 승인이 가능한가요?

아닙니다. 실제 모델의 표시, 전체 인증서, 조건 및 지침을 확보하고 납품 조립품에 적용되는지 확인해야 합니다. 그림은 제품 인증을 검증할 수 없습니다.

공식 참고자료

IECEx 장비 선정 지침은 그룹, 온도 등급 및 설치 선정을 다룹니다. IECEx 설치 심포지엄 자료는 EPL 관계, X 조건 및 부품 범위를 설명합니다. 유럽연합 집행위원회의 ATEX 개요는 EU 장비 체계를 설명합니다.
