A blue light emergency phone system is a highly visible emergency communication solution designed to help people request assistance quickly in public areas, transportation facilities, campuses, industrial sites, parking areas, tunnels, and other environments where safety response must be fast and easy to access. The system usually combines a rugged emergency phone, a prominent blue beacon or strobe light, clear call instructions, direct connection to a control room, and optional integration with video surveillance, public address, access control, alarm platforms, and dispatch software.
Recommended Products ：call box
Unlike ordinary telephones, a blue light emergency phone is built around the idea of immediate recognition and immediate response. The blue light helps people identify the help point from a distance, while the emergency call button or handset connects the caller to security staff, campus police, an operations center, or an emergency dispatch room. In modern deployments, many blue light emergency phone systems are based on SIP and IP networking, allowing them to work with IP PBX platforms, SIP servers, VoIP gateways, paging systems, CCTV systems, and centralized emergency communication software.
For facility managers, security teams, transportation operators, and industrial site owners, blue light emergency phones are not only standalone call stations. They are part of a larger emergency communication architecture. When planned correctly, they improve public confidence, shorten incident reporting time, support traceable response workflows, and help operators manage alarms, calls, video, and announcements from one control point.
A blue light emergency phone system is a network of emergency call stations installed in strategic locations where users may need help, guidance, rescue, security assistance, or immediate communication with an operator. The term “blue light” usually refers to the highly visible blue beacon mounted on or near the emergency phone. This beacon may remain illuminated for identification, flash during a call, or activate when an alarm event is triggered.
The main purpose of the system is to remove communication barriers during emergencies. A person in distress does not need to search for a phone number, unlock a mobile device, know the facility layout, or explain their exact location from memory. They can press one button, lift a handset, or use a hands-free intercom to reach the responsible response team. At the same time, the system can send location information, device ID, alarm status, and sometimes video linkage to the control room.
Blue light emergency phones are commonly used in universities, hospitals, airports, railway stations, industrial parks, highways, tunnels, parking lots, ports, public plazas, smart city projects, and remote infrastructure sites. Depending on the site, the device may be wall-mounted, pole-mounted, tower-mounted, surface-mounted, or installed inside a weatherproof enclosure.
Mobile phones are common, but they do not replace fixed emergency help points in many safety-critical environments. A mobile phone may have low battery, poor signal, no local emergency number knowledge, or no way to identify the caller’s exact location inside a complex facility. A fixed blue light emergency phone is placed at a known point, connected to a managed communication system, and monitored as part of the site’s safety infrastructure.
In a large campus, for example, a caller may only know that they are near a parking lot, pathway, dormitory entrance, or sports field. A blue light emergency phone can automatically identify the help point location to the dispatcher. In a tunnel, industrial zone, or transport station, this location-based communication is even more important because response teams must know where to go immediately.
The visual presence of blue light stations also has a deterrent and reassurance effect. People can see that emergency assistance is available, and security teams can use the system as part of a broader safety strategy that includes CCTV, patrol routes, lighting, access control, public address, and incident management procedures.
The emergency call station is the user-facing device. It may include a one-button emergency call panel, hands-free speaker and microphone, vandal-resistant metal housing, weatherproof sealing, a handset, keypad, status indicator, Braille label, or instruction plate. In outdoor and industrial environments, the enclosure must resist rain, dust, corrosion, impact, temperature changes, and unauthorized tampering.
The call station should be simple enough for a first-time user to operate under stress. Clear button design, strong audio pickup, loud speaker output, and visible call status indicators help callers understand that the call has been placed and that an operator is responding.
The blue beacon is the most recognizable part of the system. It makes the emergency phone easier to locate from a distance and can provide visual alarm confirmation during an incident. Some systems use a steady blue light for location marking and a flashing strobe when the call is active. This helps nearby staff, patrol teams, or CCTV operators identify the active help point quickly.
In large outdoor areas, the beacon height, viewing angle, brightness, and installation position should be planned carefully. The light must be visible without creating glare or confusion with other warning lights used on the site.

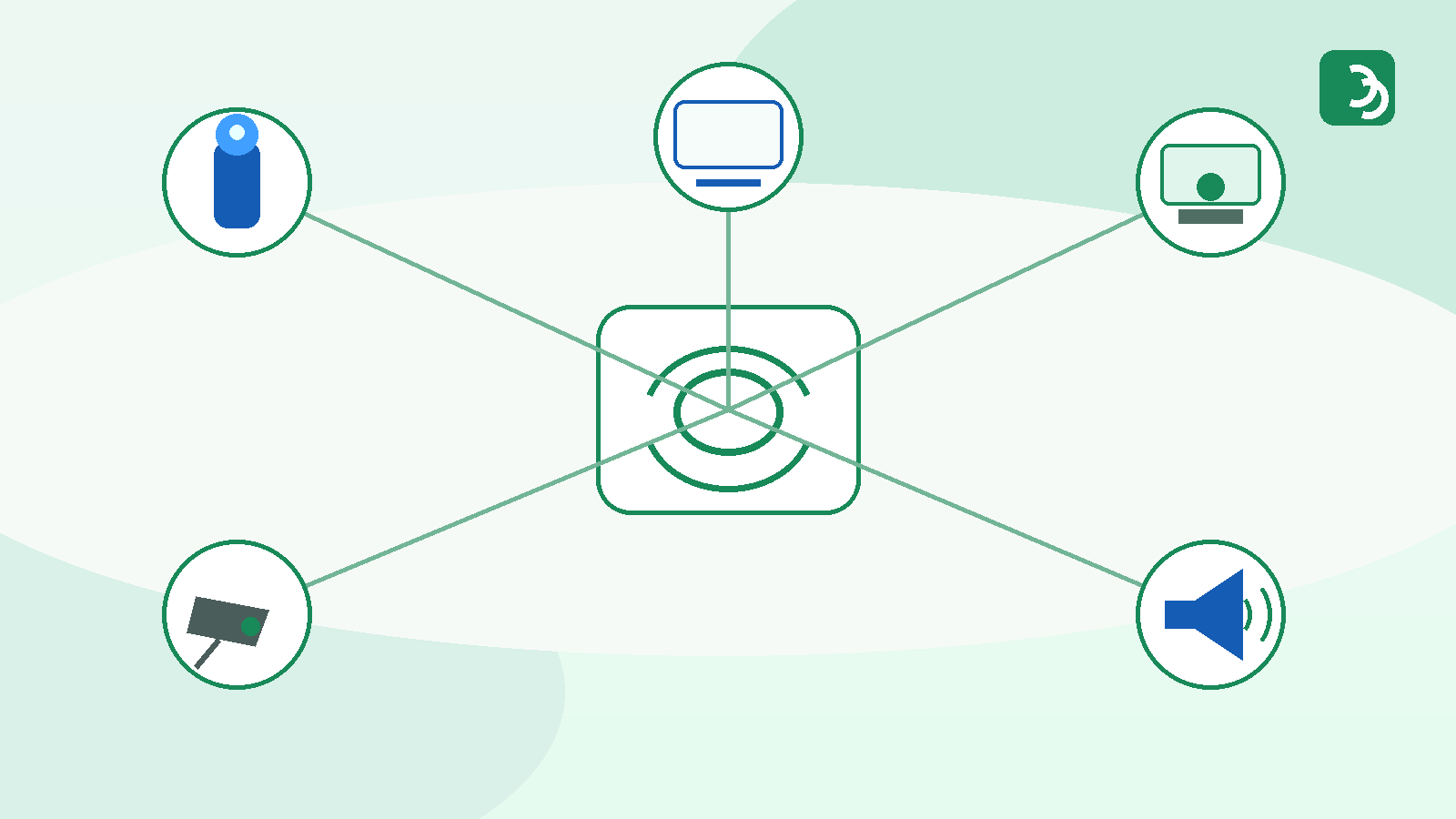

In modern systems, blue light emergency phones often register as SIP endpoints. They can connect to an IP PBX, SIP server, hosted VoIP platform, or emergency dispatch server. This allows flexible call routing, call recording, ring groups, priority calling, automatic redial, hot line dialing, and integration with other communication endpoints.
A SIP-based blue light emergency phone can call a security desk during business hours, a 24/7 control center at night, or a backup response group if the first destination is busy. It can also integrate with SIP paging speakers, industrial telephones, dispatcher consoles, and mobile radio gateways in more advanced deployments.

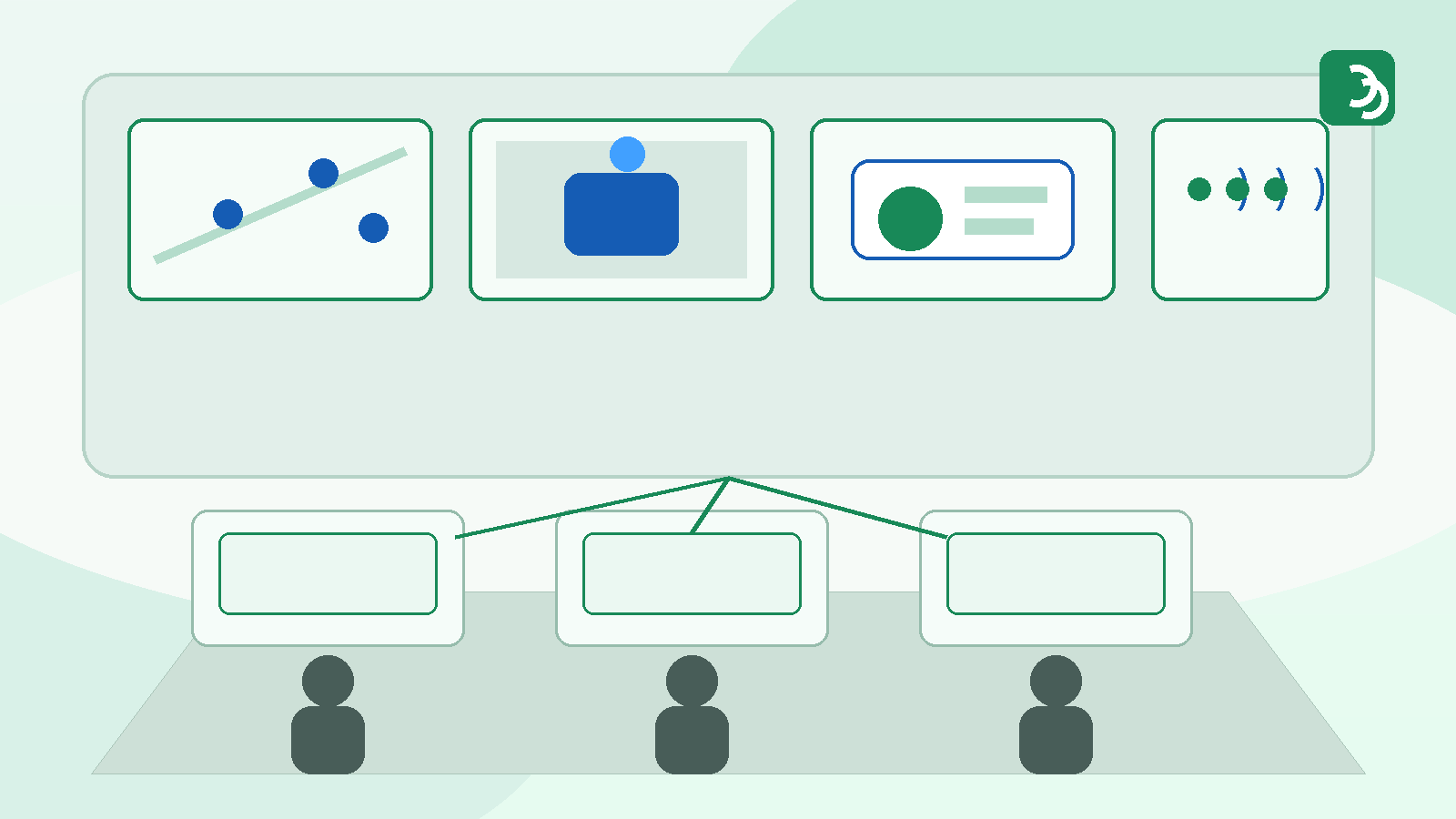

The control room is where emergency calls are answered, verified, and managed. A dispatch console may display caller location, device name, call status, alarm type, CCTV view, event history, and response notes. This helps operators respond with more context instead of treating every emergency call as an isolated voice conversation.
For large facilities, visual dispatching can be especially valuable. Operators can see the emergency phone on a map, open nearby cameras, start a public address announcement, contact field staff, and record the event for later review.
The system depends on reliable network and power design. IP emergency phones may use PoE, local DC power, solar power with battery backup, or a combination of methods. The network may include fiber, Ethernet, wireless bridges, LTE routers, or industrial switches, depending on the distance and site conditions.
Monitoring is also important. A professional blue light emergency phone system should support device status supervision, network fault alerts, call test routines, line status checks, and maintenance logs. Without monitoring, a device may fail silently and only be discovered during an emergency.
When a user activates the emergency phone, the device places a call to a predefined destination such as a security center, emergency operations center, guard room, campus police desk, or dispatch platform. The system may also trigger the blue strobe, send an alarm event, display the device location, activate a nearby camera preset, or notify additional response personnel.
In a SIP deployment, the emergency phone sends signaling through the IP network to the SIP server or IP PBX. The call is routed according to programmed rules. If the first operator does not answer, the call can be forwarded to another extension, ring group, mobile destination, or backup control room. During the call, the operator can speak with the caller, assess the situation, dispatch assistance, and record the incident.
In more advanced systems, the emergency phone is linked with public address and alarm workflows. For example, an operator may answer a call from a parking area, open the nearest CCTV camera, broadcast a warning message to a specific zone, and send patrol staff to the location. This turns a simple help point into a coordinated emergency response node.
One-touch calling is the core function of a blue light emergency phone. It allows a user to request help without dialing. The emergency button can be programmed to call a control room, security office, dispatch console, or emergency call queue. For high-risk areas, the button should be large, durable, clearly marked, and easy to operate with gloves or under stress.
Some systems support multiple buttons for different services, such as emergency, information, roadside assistance, elevator rescue, or maintenance. However, for critical safety points, simplicity is usually better than too many options.
Clear two-way audio is essential. The caller must be heard clearly, and the operator must be able to provide calm, direct instructions. Echo cancellation, noise reduction, wideband audio, high speaker volume, and microphone sensitivity are important factors, especially in outdoor, tunnel, railway, industrial, or roadside environments.
In noisy locations, an emergency phone may need a handset, high-output speaker, acoustic shielding, or special microphone design. The audio design should match the environment rather than using the same device everywhere.
The blue light or strobe supports both wayfinding and incident visibility. When activated, it can help nearby security staff identify where the call came from. It can also guide responders toward the exact station, especially at night or in large open areas.
Some deployments add secondary indicators such as red alarm lights, call status LEDs, or audible tones. These indicators should be planned carefully so they support response without confusing the caller or causing unnecessary panic.
Location identification is one of the biggest advantages of fixed emergency phones. Each device can be named according to its site, zone, floor, pole number, tunnel section, platform, parking level, or building entrance. When a call arrives, the operator immediately knows where the caller is located.
For complex projects, a consistent naming rule is important. Device labels, system names, map icons, camera names, and maintenance records should match. This prevents confusion during emergencies and simplifies daily operation.
Many blue light emergency phone systems are integrated with CCTV. When a call is triggered, the dispatch platform can automatically display the nearest camera or move a PTZ camera to a preset position. Video helps operators verify the situation, assess risk, guide responders, and maintain a record of the incident.
Video linkage is especially useful in parking areas, transport stations, campus pathways, gate entrances, tunnels, and industrial zones. It should be implemented with privacy and data protection requirements in mind.
In some incidents, operators need to communicate not only with the caller but also with nearby people. Integration with SIP paging speakers, horn speakers, amplifiers, or a public address system allows targeted announcements to a specific zone. This can support evacuation guidance, safety warnings, crowd control, maintenance notices, and emergency instructions.
Zone-based paging is more effective than site-wide broadcasting when an event affects only one area. It reduces confusion and allows operators to deliver relevant instructions to the people who need them.
Remote management allows administrators to configure device settings, update call destinations, check registration status, review logs, and monitor network connectivity. This is important for large deployments where emergency phones are spread across wide outdoor areas or multiple sites.
Health monitoring should be part of the operating plan. Regular testing of calls, speakers, microphones, lights, power, and network links helps ensure that the system remains ready when a real emergency occurs.
Universities and large education campuses are among the most common environments for blue light emergency phone systems. Help points can be installed along walkways, near dormitories, sports fields, libraries, parking lots, bus stops, and isolated areas. They provide students, staff, and visitors with a visible way to contact campus security quickly.
A campus deployment may integrate emergency phones with security patrols, CCTV, access control, mass notification, and dispatch software. The goal is not only to answer calls but also to create a coordinated safety response process.
Parking areas often require fixed emergency communication because users may face accidents, personal safety threats, vehicle breakdowns, medical issues, or lost-person situations. Blue light phones make assistance points visible across large spaces and can identify the exact parking zone or level to the operator.
In multi-level garages, acoustic design and location naming are important. The system should help responders know whether the call is from level B1, B2, entrance lane, payment area, elevator lobby, or pedestrian exit.
Airports, railway stations, metro stations, bus terminals, ports, and public squares can use blue light emergency phones to support passenger safety and operational response. These environments often combine high foot traffic, complex layouts, and time-sensitive incidents.
Integration with public address, video surveillance, and operations control platforms helps staff respond to medical emergencies, security events, lost passengers, access issues, and facility incidents.
Industrial parks, power plants, refineries, mines, tunnels, utility corridors, and logistics hubs may require emergency phones that are more rugged than standard public-area devices. Weatherproof, corrosion-resistant, explosion-proof, or industrial-grade models may be needed depending on the environment.
In these applications, blue light emergency phones can be part of a wider emergency communication system that includes industrial telephones, SIP intercoms, paging horns, alarm lights, PAGA broadcasting, dispatch consoles, and control room software.
Emergency phones are also used along highways, bridges, scenic areas, remote industrial roads, and isolated public spaces. In these locations, mobile coverage may be unstable and users may not know their exact position. Fixed help points provide a known location and a direct communication path.
Power and connectivity planning are critical for remote installations. Solar power, battery backup, LTE routers, fiber links, and outdoor-rated network devices may be required to maintain service continuity.
A successful deployment begins with a site survey. The project team should identify high-risk areas, low-visibility zones, isolated walkways, parking locations, entrances, transfer points, industrial process areas, and places where mobile phone coverage may be weak. The goal is to place help points where they are needed and where users can easily find them.
Risk mapping should consider incident history, pedestrian routes, lighting conditions, camera coverage, patrol patterns, and response access. A blue light phone installed in the wrong position may look useful but fail to support real emergency behavior.
There is no single spacing rule for every site. Device placement depends on terrain, visibility, building layout, user density, risk level, and response strategy. In open outdoor spaces, the blue light must be visible from a distance. In garages, stations, or tunnels, sightlines and signage may matter more than raw distance.
The phone should not be hidden behind obstacles, landscaping, parked vehicles, columns, or advertising panels. Nighttime visibility should be checked after installation, not only during the design stage.
SIP and IP-based systems need stable network connectivity. Designers should evaluate cable routes, switch capacity, VLAN segmentation, QoS settings, network redundancy, PoE budget, cybersecurity policies, and remote monitoring requirements. Emergency communication traffic should be treated as a priority service, not as a casual office endpoint.
Where long-distance cable runs are required, fiber links or industrial network switches may be more reliable than copper-only designs. For outdoor and remote areas, surge protection, grounding, weatherproof cabinets, and backup communication paths may be necessary.
Emergency phones must remain available during abnormal conditions. PoE simplifies installation, but backup power should be considered for the switch, network cabinet, and control room equipment. In remote areas, solar panels and batteries may be used if grid power is unavailable.
A backup strategy should include not only the endpoint but also the network path and answering destination. A powered phone is not useful if the switch, SIP server, or dispatch console is offline.
Call routing should match the organization’s response model. A blue light phone may call a main security desk first, then escalate to another extension, duty room, mobile number, or external emergency service if not answered. For 24/7 sites, different rules may apply during office hours, night shifts, holidays, or maintenance windows.
Escalation should be tested under realistic conditions. The organization should know who answers, how quickly they answer, what information appears, and what happens if the first person is unavailable.
Emergency devices should be accessible to different users, including people with disabilities. Installation height, button size, tactile markings, audio clarity, visual indicators, lighting, and signage should be considered. In multilingual environments, simple icons may be more effective than long written instructions.
The user experience should be direct and calm. A caller should understand that the call is active, that help is being contacted, and that they can speak with a real operator.
SIP-based systems are now common because they are flexible, scalable, and easier to integrate with enterprise and industrial communication platforms. A SIP blue light emergency phone can register to an IP PBX or SIP server just like an IP phone or SIP intercom. It can use standard network infrastructure, support centralized management, and connect with other SIP endpoints across multiple buildings or sites.
For organizations with existing IP telephony, SIP emergency phones can reduce integration complexity. They can be assigned extensions, call groups, routing rules, and monitoring profiles. For industrial or public safety environments, SIP also makes it easier to integrate emergency calls with paging, dispatch, recording, and alarm workflows.
However, SIP deployment must be engineered properly. Network reliability, firewall traversal, SIP registration stability, audio codec selection, QoS, security, and failover planning all affect performance. A blue light emergency phone is a life-safety communication point, so it should not be treated as a low-priority network accessory.
Emergency phones should be tested regularly. A basic test should verify call connection, audio quality, button function, beacon activation, location display, dispatch notification, and call recording if used. Testing should cover both normal and backup routing rules.
For large systems, scheduled automated tests can help reduce manual workload. However, automated checks should not fully replace periodic human testing because microphone, speaker, physical condition, and user experience still need real-world verification.
Outdoor emergency phones face weather, dirt, insects, vandalism, corrosion, cable damage, and physical impact. Regular inspection should check enclosure seals, mounting hardware, lens clarity, button condition, signage, cable entries, and grounding.
Blue beacons should also be inspected for brightness and visibility. A beacon that is technically powered but dirty, blocked, or poorly aligned may not serve its purpose during an incident.
Call destinations, extension numbers, SIP credentials, firmware, device names, map locations, and escalation rules should be reviewed when staff roles or facility layouts change. Many emergency communication failures are caused not by hardware damage but by outdated configuration.
Any change to the SIP server, IP PBX, firewall, VLAN, or dispatch software should include emergency phone verification. Emergency endpoints should be part of the change management process.
The right system depends on the environment, safety objective, communication architecture, and long-term maintenance plan. A small parking facility may need a limited number of standalone SIP emergency phones, while a campus or industrial site may need a fully integrated platform with maps, CCTV linkage, paging zones, monitoring, and multi-site dispatch.
Buyers should evaluate housing material, IP rating, impact resistance, audio performance, SIP compatibility, PoE support, backup power options, beacon design, remote management, integration interfaces, and maintenance requirements. For harsh environments, industrial-grade or explosion-proof emergency phones may be necessary.
It is also important to choose a system that can grow. Emergency communication requirements often expand from a few call stations to a complete safety network that includes intercom, paging, PA, alarm linkage, video, and centralized command.
Becke Telcom provides industrial communication products and integrated emergency communication solutions for public facilities, campuses, tunnels, transportation hubs, industrial parks, and critical infrastructure environments. A Becke Telcom blue light emergency phone system can be designed around SIP emergency phones, industrial intercom terminals, IP PBX or SIP server platforms, paging speakers, dispatch consoles, alarm linkage, and CCTV integration.
For organizations that need more than a standalone help point, Becke Telcom can support system-level planning. The solution may include rugged outdoor terminals, visible alarm indicators, centralized call routing, zone paging, control room dispatch, remote monitoring, and integration with existing VoIP or security platforms. This helps customers build an emergency communication system that is visible to users, practical for operators, and suitable for demanding field environments.
Whether the project is a campus safety upgrade, a tunnel emergency communication system, a parking area help point network, or an industrial site alarm communication project, Becke Telcom can provide a flexible SIP-based approach that connects emergency calling with dispatch response and public address communication.
A blue light emergency phone is used to provide a visible and direct communication point for people who need urgent help. It connects the user to security staff, a control room, campus police, facility operators, or an emergency dispatch center.
Yes. A normal phone is mainly used for general communication, while a blue light emergency phone is designed for emergency access, location identification, visible alarm indication, direct call routing, and rugged public or industrial installation.
Yes. Many modern blue light emergency phones support SIP and can register to an IP PBX, SIP server, or VoIP platform. This allows centralized call routing, monitoring, recording, paging integration, and dispatch linkage.
They should be installed in areas where people may need quick help, such as parking lots, campus walkways, transport stations, industrial zones, tunnels, remote pathways, building entrances, and isolated public spaces. Placement should consider visibility, risk level, lighting, access, and response routes.
Yes. Regular maintenance should include call testing, audio checks, beacon inspection, network status checks, power verification, physical inspection, and configuration review. Emergency phones must be ready before an incident happens.
Yes. A well-designed blue light emergency phone system can link emergency calls with CCTV views, location maps, paging speakers, alarm platforms, and dispatch software. This improves situational awareness and helps operators coordinate a faster response.
